Description
Green Laser Microchip (GLM) consists of two different kinds of crystal which are bonded together. Unioriental now supplies high quality GLM of Nd:YVO4 and KTP, which is mainly used for laser imaging, green laser pointers, laser show, spectroscopy, medical diagnostics and other applications. One type of GLM is bonded using UV Glue ;another type is optical bonding attaching protecting silicon.

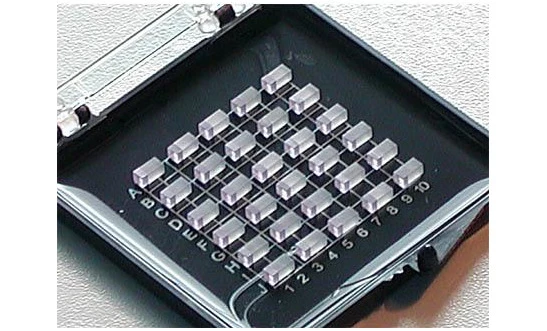

Glas Opticslens GLM: Nd:YVO4+KTP Crystal
Specifications |
|
|---|---|
| GLM Type: | Nd:YVO4+KTP |
| UV Glue GLM Size UGLMUV102: | Nd:YVO4(a)=1.00mm, Nd:YVO4(b)=0.50mm, KTP(c)=2.00mm |
| UV Glue GLM Size UGLMUV112: | Nd:YVO4(a)=1.00mm, Nd:YVO4(b)=1.00mm, KTP(c)=2.00mm |
| UV Glue GLM 808nm Pumping Output Power: | 3mw to 10mw |
| Optical Bonding GLM Size UGLMOC102: | Nd:YVO4(a)=1.00mm, Nd:YVO4(b)=0.50mm, KTP(c)=2.00mm, Si(W)=0.50mm, Si(L)=2.50mm |
| Optical Bonding GLM Size UGLMOC112: | Nd:YVO4(a)=1.00mm, Nd:YVO4(b)=1.00mm, KTP(c)=2.00mm, Si(W)=0.50mm, Si(L)=3.00mm |
| Optical Bonding GLM Size UGLMOC114: | Nd:YVO4(a)=1.00mm, Nd:YVO4(b)=1.00mm, KTP(c)=4.00mm, Si(W)=0.50mm, Si(L)=5.00mm |
| Optical Bonding GLM 808nm Pumping Output Power: | 3mw to 50mw |
| Coating Pumping End: | HR@1064&532nm, R>99.8%; AR@808nm, R<1% |
| Coating Output End: | HR@1064nm, R>99.8%; AR@532nm, R<1% |
Features
- High-Quality Green Laser Microchip (GLM): Composed of Nd:YVO4 and KTP crystals, ideal for laser imaging, green laser pointers, laser shows, spectroscopy, medical diagnostics, and more.
- UV Glue Bonding:
- Available Sizes (in mm):
- UGLMUV102: Nd:YVO4(a) - 1.00, Nd:YVO4(b) - 0.50, KTP(c) - 2.00
- UGLMUV112: Nd:YVO4(a) - 1.00, Nd:YVO4(b) - 1.00, KTP(c) - 2.00
- 808nm pumping with 532nm output power ranging from 3mW to 10mW.
- Coating Specifications:
- Pumping End: HR@1064&532nm, R>99.8%; AR@808nm, R<1%
- Output End: HR@1064nm, R>99.8%; AR@532nm, R<1%
- Available Sizes (in mm):
- Optical Bonding:
- Available Sizes (in mm):
- UGLMOC102: Nd:YVO4(a) - 1.00, Nd:YVO4(b) - 0.50, KTP(c) - 2.00, Si(W) - 0.50, Si(L) - 2.50
- UGLMOC112: Nd:YVO4(a) - 1.00, Nd:YVO4(b) - 1.00, KTP(c) - 2.00, Si(W) - 0.50, Si(L) - 3.00
- UGLMOC114: Nd:YVO4(a) - 1.00, Nd:YVO4(b) - 1.00, KTP(c) - 4.00, Si(W) - 0.50, Si(L) - 5.00
- 808nm pumping with 532nm output power ranging from 3mW to 50mW.
- Coating Specifications:
- Pumping End: HR@1064&532nm, R>99.8%; AR@808
- Available Sizes (in mm):
Applications
- Laser Imaging: The Green Laser Microchip is ideal for high-precision laser imaging applications, offering reliable performance with its Nd:YVO4 and KTP crystal components.
- Green Laser Pointers: Perfect for creating powerful and visible green laser pointers, the GLM ensures a bright and steady beam.
- Laser Shows: Enhance your laser shows with vibrant green lasers that are stable and efficient, thanks to the high-quality GLM.
- Spectroscopy: Utilize the GLM for precise spectroscopy applications, benefiting from its consistent output and high-quality construction.
- Medical Diagnostics: The GLM is suitable for various medical diagnostic tools, providing accurate and reliable laser performance.
- Other Applications: The versatility of the GLM allows it to be used in numerous other applications where high-quality laser output is required.
Frequently Asked Questions
The available sizes of the Glas Opticslens GLM are UGLMUV102 (1.00mm x 0.50mm x 2.00mm) and UGLMUV112 (1.00mm x 1.00mm x 2.00mm) for the UV glue GLM, and UGLMOC102 (1.00mm x 0.50mm x 2.00mm) to UGLMOC114 (1.00mm x 1.00mm x 4.00mm) for the optical bonding GLM.
The pumping wavelength of the Glas Opticslens GLM is 808nm, with 532 output power available from 3mw to 10mw for the UV glue GLM and 532 output power available from 3mw to 50mw for the optical bonding GLM.
The pumping end of the Glas Opticslens GLM has HR@1064&532nm, R>99.8%; AR@808nm, R<1% coating, while the output end has HR@1064nm, R>99.8%; AR@532nm, R<1% coating.
The Glas Opticslens GLM is mainly used for laser imaging, green laser pointers, laser show, spectroscopy, medical diagnostics, and other similar applications.
The Glas Opticslens GLM is made of Nd:YVO4 and KTP crystals bonded together using either UV glue or optical bonding with protecting silicon.
