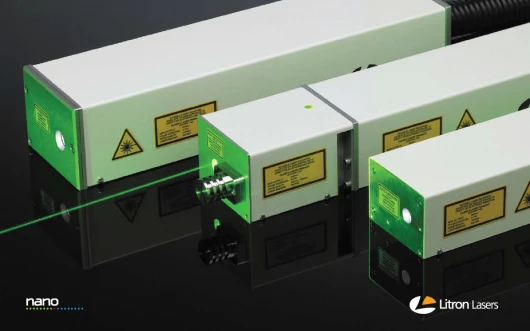

Litron Nano SG 120-20 Laser

Name: Litron Nano SG 120-20 Laser
Brand: Litron Lasers
Availability: InStock

Description

The Nano range allows a great deal of flexibility both in scientific and industrial applications. The output of these systems is multimode, however the telescopic resonators offer high energy beams with low divergences - comparable to those from unstable Gaussian coupled resonators but with a more uniform spatial profile, and a smoother temporal profile.

Specifications

Wavelength:	355 nm
Pulse Energy:	15 mJ
Pulse Energy Stability:	2 %
Pulse Duration:	6 ns
Repetition Rate:	Not Specified
Optional Wavelengths:	1064nm, 532nm 266nm, 213nm

Download Data Sheet

Applications

Spectroscopy
Remote Sensing
Photochemistry
Non-Linear Optics
OPO Pumping
Ablation
PIV
ESPI
LIDAR
LIBS
LIF

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

United Kingdom

Sold by:

Litron Lasers

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What applications is the Litron Nano SG 120-20 Laser suitable for?

The Litron Nano SG 120-20 Laser is suitable for spectroscopy, remote sensing, photochemistry, non-linear optics, OPO pumping, ablation, PIV, ESP, LIDAR, LIBS, and LIF.

What is the maximum repetition rate of the Nano T model of the Litron Nano SG 120-20 Laser?

The maximum repetition rate of the Nano T model of the Litron Nano SG 120-20 Laser ranges from 10 to 50 Hz depending on the specific model.

What is the pointing stability of the Litron Nano SG 120-20 Laser?

The pointing stability of the Litron Nano SG 120-20 Laser is less than 70 µrad.

What is the ambient temperature range for the Litron Nano SG 120-20 Laser?

The ambient temperature range for the Litron Nano SG 120-20 Laser is 5-35 ˚C.

What is the output of the Litron Nano SG 120-20 Laser?

The output of the Litron Nano SG 120-20 Laser is multimode.
