Description
The Nano range allows a great deal of flexibility both in scientific and industrial applications. The output of these systems is multimode, however the telescopic resonators offer high energy beams with low divergences - comparable to those from unstable Gaussian coupled resonators but with a more uniform spatial profile, and a smoother temporal profile.

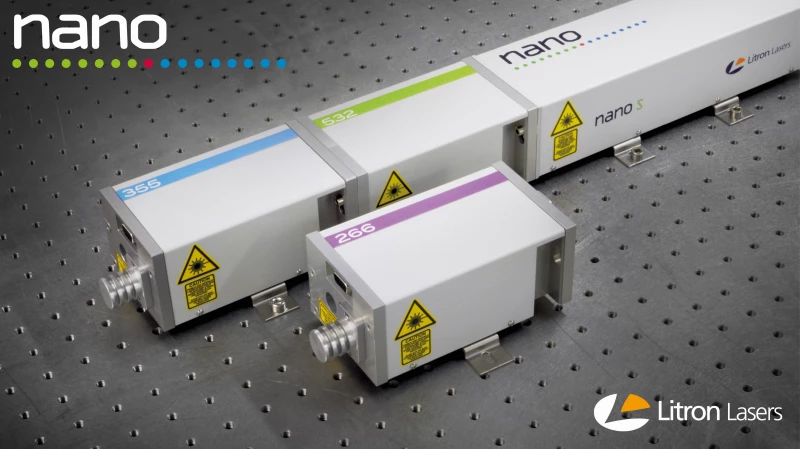

Nano S 120-20 Laser
Specifications
| Wavelength: | 1064 nm |
|---|---|
| Pulse Energy: | 120 mJ |
| Pulse Energy Stability: | 2 % |
| Pulse Duration: | 6 ns |
| Repetition Rate: | Not Specified |
| Optional Wavelengths: | 532nm, 355nm, 266nm, 213nm |
Download Data Sheet
Applications
Spectroscopy
Remote Sensing
Photochemistry
Non-Linear Optics
OPO Pumping
Ablation
PIV
ESPI
LIDAR
LIBS
LIF
Frequently Asked Questions
What are the features of the Nano S 120-20 Laser?
The features of the Nano S 120-20 Laser include output energies up to 150mJ, repetition rates up to 50Hz, a fully interlocked electrical safety shutter, and a compact and rugged design.
What are the applications of the Nano S 120-20 Laser?
The Nano S 120-20 Laser can be used in spectroscopy, remote sensing, photochemistry, non-linear optics, OPO pumping, ablation, PIV, ESP, LIDAR, LIBS, and LIF.
What is the size of the Nano S 120-20 Laser?
The Nano S 120-20 Laser is one of the smallest 'end user' laser systems of its type in the world with a footprint of just 292mm x 82mm.
What is the Nano S 120-20 Laser?
The Nano S 120-20 Laser is a compact and rugged Q-switched pulsed Nd:YAG laser that offers high energy beams with low divergences.
What is the maximum energy output of the Nano S 120-20 Laser?
The Nano S 120-20 Laser can produce energies of up to 150mJ per pulse and repetition rates of up to 50Hz.
