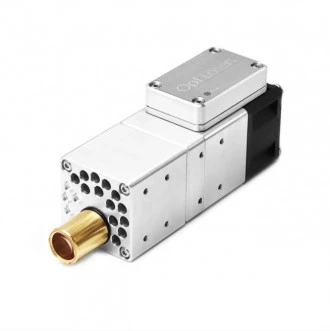

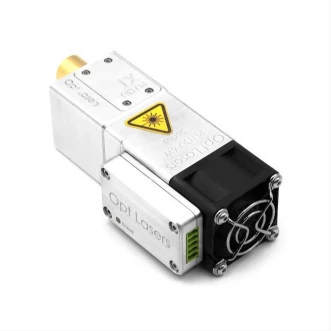

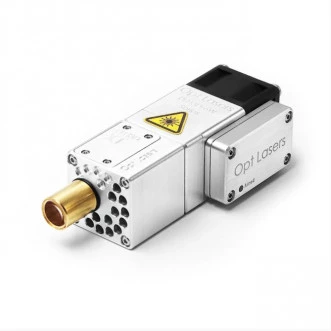

PLH3D-XT-10 Specialized Engraving Laser Head
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2021
Description
The PLH3D-6W Series laser head is a versatile and powerful tool designed for precision engraving and cutting across a wide range of materials. Its compact and lightweight design makes it an ideal choice for integration with nearly all CNC machines and 3D printers. This laser head stands out for its ability to replace traditional CO2 lasers in many applications, offering a modern solution for both hobbyists and professionals.
One of the key features of the PLH3D-6W Series is its efficient thermal management system. The laser head is constructed with a machined 6000-Series Aluminum housing, which not only keeps the unit lightweight but also acts as an effective heat sink. This design ensures that the laser diode remains cool, thereby extending its operational lifetime even when used at high power levels. Additionally, the laser head is equipped with an automatic shutdown feature that activates if the housing temperature exceeds 47°C (116°F), resuming operation once the temperature drops to 40°C (103°F).
The PLH3D-6W Series laser head also includes advanced optical components, such as a High-Efficiency Mounted Aspheric lens and a High-Resolution Triplet lens. These lenses are optimized for various engraving applications, with the High-Resolution Triplet lens offering a pre-set focus for enhanced precision. The focal length is adjustable, allowing users to customize the laser head for specific tasks and materials.
With its blue light laser, the PLH3D-6W Series can engrave and cut a diverse array of materials. It is capable of engraving on woods like Birch, Pine plywood, and MDF, as well as cutting textiles such as cotton, denim, and nylon. The laser head can also mark metals like anodized Aluminum and stainless steel, and cut plastics including ABS and Acrylic. This versatility makes it a valuable tool for industries ranging from woodworking to textiles and metalworking.
PLH3D-XT-10 Specialized Engraving Laser Head
Specifications |
|
|---|---|
| Laser Type: | Other / Not specified |
| Laser Machine: | Cutter, Engraver |
| Features: | Other (see Data Sheet) |
| Laser Diode Optical Power: | 500 mW |
| Focus Distance: | 55.0 mm |
| Laser Diode Wavelength: | 405 nm |
| Modulation Input 1: | 0 - 5V Analog/TTL/PWM |
| Modulation Input 2: | 0 - 24V TTL/PWM |
| Input Voltage: | 12-24 V |
| Operating Ambient Temperature: | 0 - 40 °C |
| Max. Modulation Bandwidth: | 30 kHz |
| Focus Distance: | 60.0 mm |
Features
- Versatile Material Compatibility: The PLH3D-6W Series laser head is capable of engraving and cutting a wide range of materials including plastics, woods, cardboard, textiles, anodized aluminum, stainless steel, and titanium.
- Universal Mounting: Designed to be compatible with nearly all CNC machines and 3D printers, offering a versatile replacement for CO2 lasers in various applications.
- Compact and Lightweight Design: No additional cooling required, thanks to its efficient heat sink and fan-directed airflow that removes smoke and maintains optimal operating temperature.
- Durable Construction: Built with machined 6000-Series Aluminum housing to ensure low weight and effective heat dissipation, enhancing the laser diode's lifespan.
- Overheat Protection: Features an automatic shutdown mechanism that activates when the housing temperature exceeds 47°C (116°F) and resumes operation at 40°C (103°F) to protect the semiconductor laser.
- Integrated Laser Driver: The laser driver is integrated directly into the laser head, increasing maximum modulation frequency and allowing for longer cable use.
- High-Quality Optics: Includes High-Efficiency Mounted Aspheric lens and High-Resolution Triplet lens, with adjustable focal length for optimized engraving performance.
- Wood and Textile Processing: Capable of engraving on various woods like Birch, Pine plywood, Balsa, hardwood, and MDF, as well as cutting textiles such as cotton, denim, felt, and nylon without penetrating protective layers.
- Metal and Plastic Engraving: Engraves on metals like black anodized aluminum and wrought iron, and marks titanium and stainless steel. Cuts and engraves plastics like ABS, acrylic, polypropylene, and polyamides.
- Leather Processing: Can cut or engrave brown and black full-grain leather, offering versatility for leatherworking applications.
Applications
- Optical Communication Systems: Provides precise current control for laser diodes used in data transmission and fiber-optic communication networks.
- Laser Diode Testing and Characterization: Enables accurate testing, modulation, and performance evaluation of laser diodes across multiple wavelengths.
- Medical and Biomedical Equipment: Supports stable laser operation in diagnostic, imaging, and therapeutic devices.
- Industrial Laser Systems: Ideal for integration into marking, engraving, and material processing machines requiring reliable laser control.
- Scientific Research and Instrumentation: Suitable for laboratories needing flexible modulation and precise thermal protection for laser experiments.
- Spectroscopy Applications: Facilitates consistent and stable laser excitation for absorption, fluorescence, and Raman spectroscopy.
- OEM and System Integration: Designed for easy integration with custom setups, offering flexibility in modulation and cooling.
Frequently Asked Questions
The PLH3D-XT-10 Specialized Engraving Laser Head is a laser head designed for engraving with high resolution and cutting thin materials with ultra-thin lines.
The PLH3D-XT-Series engraving laser heads inherit the advantages of the 6W-Series laser heads, including versatility, compact dimensions, and high-speed driver.
The PLH3D-XT-10 Specialized Engraving Laser Head can engrave a wide variety of materials, including stainless steel, with precise and very small size engravings.
Yes, the PLH3D-XT-10 Specialized Engraving Laser Head can be used for micro machining in addition to engraving.
No, the PLH3D-XT-10 Specialized Engraving Laser Head does not require additional cooling as its body functions as an efficient heat sink.
