Description
Unlock unparalleled precision, speed, and reliability in your laser-based applications with Novanta Photonics' Galvanometer Scanners: the 62xxK and 83xxK Series. Crafted with expertise by Cambridge Technology, these single-axis closed-loop scanners epitomize cutting-edge engineering, setting new standards in performance for high-precision optical scanning systems.
Engineered to exceed expectations, the 62xxK and 83xxK Series Galvanometer Scanners boast a host of features tailored to meet the rigorous demands of high-speed and high accuracy scanning applications. Powered by innovative moving magnet actuator technology and a proprietary position detector, these scanners deliver exceptional stability while achieving unmatched scan speeds.
At the heart of Novanta Photonics' Galvanometer Scanners lies a commitment to reliability. Whether you're engaged in additive manufacturing, micromachining, laser treatment, or high-power welding, these scanners ensure consistent performance over long product lifetimes. Robust design and meticulous engineering guarantee stability and precision, even in the most demanding environments.
Designed with versatility in mind, the Galvanometer Scanners offer a compact footprint that seamlessly integrates into a wide range of optical systems. With mirror sizes ranging from 3 to 100 mm and a variety of coating options available, these scanners provide the flexibility needed to adapt to diverse application requirements.
From recommended aperture sizes to torque constants and thermal resistance, every aspect of the Galvanometer Scanners is meticulously engineered to deliver peak performance. Whether you're scanning at maximum angles or operating under varying temperature conditions, you can rely on these scanners to consistently deliver high-quality results.
Backed by Novanta Photonics' commitment to customer satisfaction, the Galvanometer Scanners come with comprehensive support and expertise. Our team of experts is dedicated to ensuring that you get the most out of your scanning system, providing technical assistance, customization options, and timely support whenever you need it.
Experience the future of optical scanning with Novanta Photonics' Galvanometer Scanners: the ultimate choice for precision, speed, and reliability in laser-based applications. Whether you're pushing the boundaries of micromachining or revolutionizing laser treatment, trust in the 62xxK and 83xxK Series to deliver exceptional performance, every time.

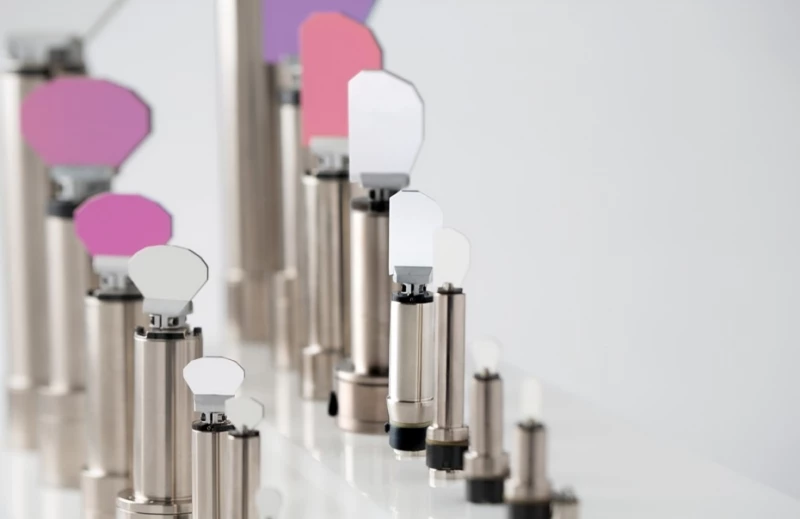

Galvanometer Scanner 6200K and 8300K Series
Specifications
Max Aperture (Beam) Size: | 3 mm |
---|---|
Wavelength: | 355 nm (UV), 532 nm (green), 1030 - 1080 nm, 9.4 - 10.6 μm, Other (see Data Sheet) |
Max Scan Angle: | 40 degrees |
Repeatability: | 8 μrad |
Linearity: | 99.9 % |
Rotor Inertia: | 0.013 g·cm2 |
Torque Constant: | 12000 mN·m/Amp |
Peak Current: | 6 Amp |
Max Coil Temperature: | 110 °C |
Coil Resistance: | 0.6 Ohms |
Coil Inductance: | 0.052 mH |
Back EMF Voltage: | 0.0209 mV/deg/ sec |
Weight: | 13.3 g |
Output Signal, Common Mode: | 155 μA (±25%) at AGC current of 25 mA |
Output Signal, Differential Mode: | 12 μA/° (±5%) at common mode current of 155 μA |
Features
- Industry’s fastest motor speeds for maximum throughput
- High-accuracy output across a diverse range of application scanning needs
- Robust design ensures consistent stability over long product lifetimes
- Compact models' footprint ensures ease of integration for small spaces
- Available with a wide range of mirror sizes (3 to 100 mm) and coating options
Applications
- High Power Welding
- Micromachining
- Laser Treatment
- Additive Manufacturing
- Converting
- Marking
