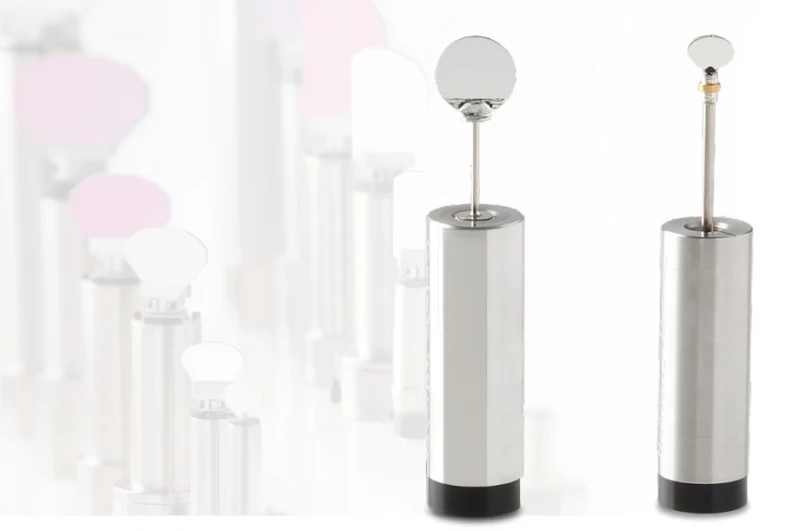

Thumbnail of CRS 4 KHz Resonant Scanner photo 1

Description

Elevate your high-speed imaging applications to new heights with Novanta's CRS Series Resonant Scanners, meticulously engineered by Cambridge Technology. These cutting-edge scanners offer a revolutionary solution for rapid scanning rates, delivering unparalleled speed, accuracy, and reliability for a wide range of demanding applications.

At the heart of the CRS Series is its innovative resonant technology, which enables fast scanning over large scan angles with remarkable precision. Each scanner oscillates at a fixed resonant frequency, generating a sinusoidal waveform that ensures swift and smooth scanning motion. This unique design, combined with the lightweight beryllium mirror and broadband coatings, allows for rapid scanning across a broad spectrum of laser wavelengths.

Designed to meet the stringent requirements of high-speed imaging, the CRS Series scanners are ideal for applications such as microscopy and laser ophthalmology, where fast and precise scanning is crucial. Whether you're conducting intricate microscopic examinations or performing delicate laser surgeries, the CRS Series scanners provide the speed and reliability needed to achieve exceptional results.

In addition to their exceptional performance, the CRS Series scanners are also incredibly durable and reliable, with extremely long lifetimes that ensure consistent operation over extended periods. The robust stator-based design simplifies integration and mounting, making setup quick and hassle-free. Plus, each scanner comes equipped with driver board electronics, further streamlining the installation process and ensuring seamless compatibility with your existing systems.

With its unmatched combination of speed, accuracy, and reliability, the CRS Series Resonant Scanners from Novanta are the ultimate solution for high-speed imaging applications. Experience the future of imaging technology and unlock new possibilities for your value-driven applications with Novanta's CRS Series Resonant Scanners.

CRS 4 KHz Resonant Scanner

Visit the Novanta Photonics Store

Specifications

Max Aperture (Beam) Size: 12 mm
Wavelength: 351 nm (UV), 355 nm (UV), 400 nm (Violet/Blue), 405 nm (Violet/Blue), 527 nm (green), 532 nm (green), 800 nm (near IR), 810 nm (near IR), 1054 nm (IR), 1064 nm (IR), 1070 nm (IR), Other Broadband, Other (see Data Sheet)
Max Scan Angle: 10 degrees
Repeatability: 250 μrad
Linearity: Not Specified
Rotor Inertia: Not Specified
Torque Constant: Not Specified
Peak Current: 1 Amp
Max Coil Temperature: Not Specified
Coil Resistance: Not Specified
Coil Inductance: Not Specified
Back EMF Voltage: Not Specified
Weight: Not Specified
Mirror Size: 12.7 mm
Resonant Frequency (at 25°C): 3,938 Hz
Frequency Tolerance (at 25°C): ± 50 Hz
Typical Power Consumption: 1.0 W
Frequency Thermal Stability: 110 ppm/°C ppm/°C
Velocity Feedback: Yes
Power Supply: Single rail, +12VDC (~ 1A current)
Command Voltage: 0-4 VDC
Scan Amplitude Control: Yes
Sync Signal: Yes, occurs at each change in direction
Dimmensions (L X W): 30.5 x 43 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Speed Resonant Scanning: Operates at fixed resonant frequencies for consistent, real-time performance
  • Wide Scan Angles: Delivers fast motion over large fields of view (up to 26° peak-to-peak)
  • Compact and Lightweight: Beryllium mirrors with broadband coatings ensure optical efficiency
  • Easy System Integration: Stator-based design and included driver board simplify setup
  • Long Operational Lifetime: Durable, low-maintenance design suited for extended use
  • Velocity Feedback and Sync: Ensures accurate scanning with real-time feedback and signal control
  • Low Power Consumption: Energy-efficient with 1.0–1.5 W typical consumption
  • Thermal Stability: Maintains resonant frequency with 110 ppm/°C stability

Applications

  • Microscopy: Enables fast raster scanning for real-time imaging
  • Laser Ophthalmology: Supports precise, high-speed scanning for diagnostic and treatment systems
  • Biomedical Imaging: Ideal for non-invasive, high-resolution imaging systems
  • High-Speed Inspection Systems: Facilitates rapid scanning in industrial metrology
  • Scientific Research: Reliable solution for laboratory imaging and scanning experiments

Frequently Asked Questions

What sets Novanta's CRS Series Resonant Scanners apart from traditional scanning solutions?
Novanta's CRS Series Resonant Scanners utilize innovative resonant technology, enabling rapid scanning over large angles with exceptional precision. Each scanner oscillates at a fixed resonant frequency, resulting in swift and smooth scanning motion. This unique design, combined with lightweight beryllium mirrors and broadband coatings, allows for rapid scanning across a wide spectrum of laser wavelengths, setting them apart from traditional scanning solutions.
In which applications are the CRS Series scanners particularly well-suited?
The CRS Series scanners are ideal for high-speed imaging applications such as microscopy and laser ophthalmology, where fast and precise scanning is essential. Whether you're conducting intricate microscopic examinations or performing delicate laser surgeries, the CRS Series scanners provide the speed and reliability needed to achieve exceptional results. Their ability to deliver rapid scanning rates with remarkable accuracy makes them particularly well-suited for these demanding applications.
What are the key features that make the CRS Series scanners durable and reliable?
The CRS Series scanners are not only known for their exceptional performance but also for their durability and reliability. They boast extremely long lifetimes, ensuring consistent operation over extended periods. The robust stator-based design simplifies integration and mounting, making setup quick and hassle-free. Additionally, each scanner comes equipped with driver board electronics, streamlining the installation process and ensuring seamless compatibility with existing systems, thus enhancing their overall durability and reliability.
How do Novanta's CRS Series scanners simplify the setup and integration process?
Novanta's CRS Series scanners feature a robust stator-based design that simplifies the integration and mounting process. This design ensures quick and hassle-free setup, allowing users to easily integrate the scanners into their existing systems. Furthermore, each scanner comes equipped with driver board electronics, further streamlining the installation process and ensuring seamless compatibility with a wide range of systems. These features collectively simplify the setup and integration process, saving time and effort for users.
What advantages do Novanta's CRS Series Resonant Scanners offer for high-speed imaging applications?
Novanta's CRS Series Resonant Scanners offer unmatched speed, accuracy, and reliability, making them the ultimate solution for high-speed imaging applications. Their innovative resonant technology enables rapid scanning over large angles with remarkable precision, ensuring swift and smooth scanning motion. With exceptional durability and reliability, these scanners provide consistent operation over extended periods, unlocking new possibilities for value-driven applications in high-speed imaging.
