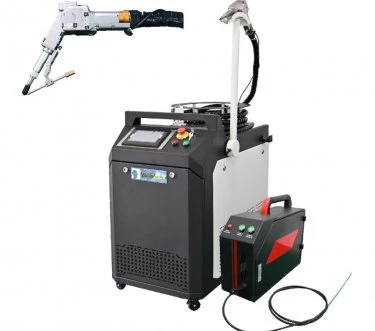

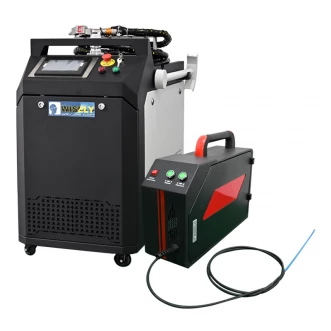

3-in-1 Hand-held Fiber Laser Welding Machine for Precision Parts and Sheet Metal
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
SHENZHEN WISELY LASER MACHINERY CO., LIMITED -
On FindLight:
since 2020
Description
Introducing the Hand-held Fiber Laser Welding Machine, a cutting-edge solution that leverages high-energy-density laser beams to deliver precise and efficient welding. This advanced technology focuses heat on a small area, allowing the material to melt and form a specific molten pool for seamless welding. Ideal for thin-wall materials and precision parts, this machine excels in various welding techniques such as spot welding, splicing welding, seal welding, and overlap welding. The result is minimal heat distortion, beautifully smooth weld seams, and superior weld quality, eliminating the need for secondary grinding treatment.
In recent years, laser welding has become increasingly popular for its versatility in handling a wide range of materials, including stainless steel, carbon steel, galvanized sheets, copper, and aluminum. With its hand-held swing welding head, this machine offers unparalleled flexibility and ease of use, requiring no specialized welder training. It is perfectly suited for both small and large batch production, making it a valuable asset in industries such as sheet metal processing, kitchen cabinets, stair handrails, elevator escalators, display shelves, doors and windows, advertising models, and stainless steel products.
The Hand-held Fiber Laser Welding Machine stands out for its environmentally friendly operation and safety features. Unlike traditional welding methods, it produces minimal heat on the workpiece, resulting in less deformation and undercut. The bonding strength with base materials is exceptional, and the process requires little to no sanding. This machine operates at a speed three times faster than argon arc welding, significantly enhancing productivity while maintaining low power consumption and consumable costs. With its easy operation and high welding quality, this machine is a game-changer in the welding industry.
3-in-1 Hand-held Fiber Laser Welding Machine for Precision Parts and Sheet Metal
Specifications |
|
|---|---|
| Materials: | Stainless Steel, Iron, Galvanized Steel, Aluminum, Copper, Nickel, Titanium, Platinum |
| Welding Process: | Transmission Welding |
| Laser Type: | Fiber Laser |
| Laser Output Power: | 1000 W |
| Wavelength: | 1064 nm |
| Welding Mode: | Continuous Wave (CW) |
| Fiber Length: | 10 m |
| Laser Cooling Mode: | Water-to-Air |
| Voltage Requirement: | 110V - 60Hz, 220V - 50Hz |
| Life Span: | Max. 100000 Hours |
| Laser Source: | China JPT / Raycus |
| Welding Thickness: | 0.5-5 mm |
| Laser Cutting Thin Metals: | 0.1-1 mm |
| Cleaning Area: | Max 50*50 mm |
| Power Stability (8h): | 2% |
| Dimension (L*W*H): | 600×960×930 mm |
| Package Size: | 670×1030×1180 mm |
| Net Weight: | 145 Kg |
| Optional Fiber: | 15 m |
Features
- High-Energy Density Laser Beam: Utilizes a laser beam to locally heat and melt material, forming a molten pool for precise welding.
- Versatile Welding Capabilities: Capable of spot welding, splicing welding, seal welding, and overlap welding.
- Minimal Heat Distortion: Ensures beautiful, smooth weld seams with high-quality results and no need for secondary grinding.
- Wide Material Compatibility: Suitable for welding stainless steel, carbon steel, galvanized sheet, copper, aluminum, and more.
- Flexible Hand-Held Operation: Features a hand-held swing welding head for easy operation without professional welder skills.
- Adaptable for Various Industries: Ideal for sheet metal processing, kitchen cabinets, stair handrails, elevator escalators, display shelves, and more.
- Advanced Technical Parameters: Available in models with 1000W, 1500W, and 2000W power options. Fiber laser source from CHINA JPT with a wavelength of 1070±5nm.
- Efficient Cooling and Power System: Built-in water cooling system with adjustable output power (5-95%) and low power consumption.
- Environmentally Friendly: Low heat on workpiece, minimal deformation, and environmentally protective operation.
- Fast and Safe Operation: Offers three times the welding speed of traditional argon arc welding with enhanced operator safety.
- Quick Shipment: Ships within 3-7 working days after payment.
- Easy Training: No local training necessary; users can operate the machine effectively after a 30-minute orientation.
Applications
- Sheet Metal Processing: Ideal for precise and efficient welding of sheet metal components.
- Kitchen Cabinets: Ensures high-quality welds for stainless steel and other metal kitchen fixtures.
- Cabinets: Suitable for creating sturdy and seamless metal cabinets.
- Stair Handrails: Provides strong and aesthetically pleasing welds for safety and design.
- Elevator Escalators: Ensures durable and secure welding for escalator components.
- Display Shelves: Allows for the creation of sleek and stable metal display units.
- Doors and Windows: Perfect for welding metal frames and components for doors and windows.
- Advertising Models: Facilitates the construction of metal structures for advertising displays.
- Stainless Steel Products: Widely used for welding various stainless steel items with precision.
Frequently Asked Questions
The 3-in-1 Laser Machine is suitable for small batch and large batch production and can be widely used in sheet metal processing, kitchen cabinets, cabinets, stair handrails, elevator escalators, display shelves, doors and windows, advertising models, stainless steel products, and many other industries.
The three main functions of the 3-in-1 Laser Machine are laser welding, laser cutting thin metals, and modes of rust cleaning on metal.
The laser welding function can be used for welding 0.5~5mm metal, including stainless steel, carbon steel, galvanized sheet, copper, aluminum, and other products.
No, the hand-held laser welding machine is flexible and simple to operate without the need for professional welder technology.
Laser welding has several advantages, including small heat distortion, beautiful and smooth weld seams, high weld seam quality, and no requirement for secondary grinding treatment.
