Description

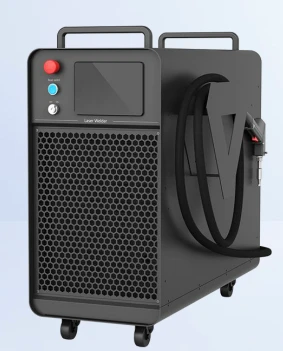

The YLIS-Weld-40D-F intelligent handheld laser welding machine features forced air cooling, a phase-change radiator, and a newly designed compact, lightweight body. It incorporates high-temperature chip technology to support long-term welding operations. Compared to traditional arc welding machines, it offers significantly higher efficiency, requires no professional welder, and greatly reduces labor costs.
EQ Photonics GmbH - Air cooled Handheld Welder - YLIS Weld 40D F
Specifications |
|
|---|---|
| Materials: | Stainless Steel |
| Welding Process: | Direct Laser Welding |
| Laser Type: | Fiber Laser |
| Laser Output Power: | 1200 W |
| Wavelength: | Not Specified |
| Welding Mode: | Other |
| Fiber Length: | Not Specified |
| Laser Cooling Mode: | Air |
| Voltage Requirement: | 220V - 50Hz |
| Output Power: | 1200 watt |
| Operating Mode: | CW/Modulation mode/Linear mode/Pulse/Timing mode |
| Output Power Range: | 1-100 % |
| Output Laser Wavelength: | 1080±10 nm |
| Power Stability: | ±5% |
| Max. Modulation Frequency: | 10kHz |
| Response Time: | ＜25us |
| Red Diode Wavelength: | 650 nm |
| Red Diode Power: | ＜1 mw |
| Focal Collimator: | 50 mm |
| Focal Length: | 150 mm |
| Cable Length: | 6±0.5 m |
| Protective Gas Inert Gases: | nitrogen, argon |
| Ambient Temperature: | -15~45 ℃ |
| Input Voltage: | 220VAC/50Hz/60Hz |
Features
- Proprietary air cooling system
- Built-in wire feeder optional
- Ambient temperature -15~45℃，Stable welding for a long time
- Lockout function with customised duration and remote authorisation for extended use
- Remote service support available through WiFi/Internet
Applications
Suitable for a wide range of welding materials, including various thicknesses of carbon steel, aluminum alloy, copper, and stainless steel. Commonly used in the welding of kitchenware, guardrails, doors, windows, and other hardware products.
