WELD-2000HP Handheld Laser Welding & Cleaning System
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2022
Description

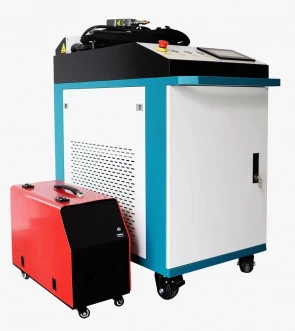

The Techwin WELD-2000HP Handheld Laser Welding & Cleaning System is a versatile and portable fiber laser welder, designed to deliver exceptional performance in various welding applications. This innovative equipment is comprised of a laser, a chiller, a handheld swing welding head, a laser control system, and an automatic wire feeder. The system is thoughtfully engineered to ensure both the effectiveness of the welding process and user comfort during prolonged use, with the welding head weighing just 0.8kg. Additionally, it features a mouth touch mechanism for precise contact with the workpiece, along with a light-emitting safety lock to prevent accidental injuries. The user-friendly drawer-type protective lens installation method allows for quick and easy lens replacement.
Engineered to accommodate different angle nozzles, the WELD-2000HP supports a maximum configuration of 2000W laser power. This capability enhances the light source swing effect, broadening the tolerance range of processed parts and enlarging the width of the welding seam. This effectively addresses the challenge of small light spots, offering a comprehensive solution for various welding needs.
The Techwin WELD-2000HP is ideally suited for long-distance laser welding on large workpieces and products of diverse styles. Its design minimizes the heat-affected area during welding, preventing deformation, blackening, and traces on the reverse side of the workpiece. When compared to traditional arc welding methods, this handheld laser system offers significant efficiency gains, with the potential to save power by approximately 80% to 90% and reduce processing costs by about 30%. The equipment also includes multiple safety alarms and an optional welding wire feeding function to accommodate workpieces with significant gaps, ensuring a safe and efficient welding process.
WELD-2000HP Handheld Laser Welding & Cleaning System
Specifications |
|
|---|---|
| Materials: | Stainless Steel, Iron, Galvanized Steel |
| Welding Process: | Direct Laser Welding, Transmission Welding, Keyhole Welding, Seam Welding, Sheet Welding, Pipe Welding |
| Laser Type: | Unspecified |
| Laser Output Power: | 2000 W |
| Wavelength: | 1080 nm |
| Welding Mode: | Continuous Wave (CW), Modulated |
| Fiber Length: | 15 m |
| Laser Cooling Mode: | Water-to-Air |
| Voltage Requirement: | 220V - 50Hz |
Features
- Handheld & Portable Design: The Techwin WELD-2000HP is a compact and lightweight fiber laser welding system, designed for ease of use and portability.
- Comprehensive System: Includes a laser, chiller, handheld swing welding head, laser control system, and automatic wire feeder.
- Ergonomic Welding Head: Weighs only 0.8kg, ensuring comfort during long-term use.
- Safety Features: Equipped with a light-emitting safety lock to prevent accidental injuries and a drawer-type protective lens for easy replacement.
- Versatile Nozzle Configuration: Supports different angle nozzles and a maximum laser configuration of 2000W.
- Enhanced Welding Capabilities: Features a light source swing effect that enlarges the tolerance range and width of the welding seam.
- Minimal Heat-Affected Zone: Ensures minimal deformation, blackening, or traces on the back of the workpiece.
- Efficient for Large Workpieces: Ideal for long-distance welding on large workpieces and various product styles.
- High Efficiency and Low Power Consumption: Increases efficiency by more than 50% compared to argon arc welding and saves 80%-90% power compared to traditional arc welding.
- Customizable Welding Seam: Allows for customizable seam width with optional wire feeding.
- Multiple Safety Alarms: Comes with multiple safety alarms for enhanced operational safety.
- Wide Range of Applications: Suitable for welding thin metal plates, stainless steel, carbon steel, sheet metal, molds, kitchen and bathroom products, and more.
- Industries Served: Ideal for kitchens, household appliances, advertising, molds, stainless steel doors and windows, handicrafts, furniture, auto parts, and more.
- Specifications: Laser power ranges from 500-2000W.
Applications
- Welding of Thin Metal Plates: Suitable for materials such as stainless steel and carbon steel.
- Applicable Products: Ideal for laser welding of sheet metal, molds, chassis, water tanks, and kitchen and bathroom products.
- Five-Gold Lighting and Advertising Signs: Effective for welding various decorative and functional items.
- Door and Window Frames: Perfect for creating strong and precise joints in frames.
- Wide Range of Industries: Extensively used in kitchens, household appliances, advertising, molds, stainless steel doors and windows, handicrafts, household goods, furniture, and auto parts.
