Description
The SS182 MKII DARK SABER with LED light and strobe is distinctively suited for lighting applications on inspection systems and other operations where illumination and the ability to scale an image are required. This integrated subsea product allows the laser, LED light, and strobe to work together to deliver crisp video images with remote control.
Subsea Video
The SS182mkII provides outstanding brightness and warm color for subsea videos, and its adjustable green laser with LED light and projector offers the perfect illumination solutions for a vast number of applications.
Subsea applications up to 13,123ft / 4,000m standard and 19,685ft / 6,000m optionally, the SS182mkll also features housing options.
It features safe operations in the air with intelligent thermal management and is 35% lighter than the previous version.
Lighting & Strobe Functions
Light functions (including strobing) can be controlled remotely via analog, control through digital inputs, over a serial communication port, and while being synced to a digital still camera.
The SS182mkII is field-configurable, allowing the operator to satisfy exact operational needs.

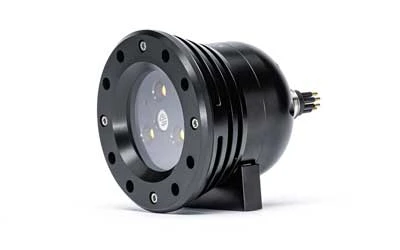

SS182MKII Dark Saber LED Light, Laser, and Strobe
Specifications
| LED Color: | Red, Green |
|---|---|
| Wavelength Range: | Not Specified |
| Output Power (CW): | 90 W |
| Emission Angle (Divergence): | 75 deg |
| 2.55 Lbs In Air: | 1.16 kg in Air |
| 1.82 Lbs In Water: | 0.83 kg in Water |
Download Data Sheet
Features
- 11,000 Lumens LED Light
- High Intensity Strobe
- Adjustable Line Laser 5- 100 mW
- Micro-controlled with flickerless constant current
- No Acoustic Noise = No effects on nearby sonars
- Color Temperature: 4000 Kelvin
- Color Rendering Index (CRI) 70
- Depth rated 4000m Aluminum / 6000m Titanium
- A single serial port can control multiple lights
- Light functions, including strobing, can be controlled remotely via analog and digital inputs, over a serial communication port, or while being synchronized to a digital still camera.
Applications
Inspection systems and other operations where illumination and the ability to scale an image are required
