How do vision sensors capture and process images to make pass/fail or measurement decisions?

Vision sensors use a CMOS or CCD image sensor to acquire a frame, then apply on-board image preprocessing (gain, offset, filtering, thresholding) followed by task-specific tools such as edge detection, pattern matching, blob analysis, or barcode/2D code decoding. The resulting features or metrics are evaluated against user-defined tolerances, and the sensor outputs a discrete signal (e.g., OK/NG), numerical value (e.g., position, angle, dimension), or communication packet via Ethernet/IP, PROFINET, Modbus TCP, or similar protocols.

What are the main types of vision sensors and how do 1D, 2D, and 3D variants differ?

1D vision sensors (line-based) analyze a single row of pixels, commonly used for web inspection and edge or width measurements on continuous materials. 2D vision sensors acquire area images for tasks like presence detection, object localization, code reading, and dimensional checks in x–y. 3D vision sensors employ techniques such as laser triangulation, structured light, or time-of-flight to produce depth maps or point clouds, enabling volume measurements, height profiling, and robust inspection of complex geometries and overlapping objects.

Which key technical specifications should I evaluate when selecting a vision sensor for my application?

Critical parameters include resolution (pixel count and pixel size), sensor type and shutter (global vs. rolling), minimum and maximum exposure times, and frame rate at full and reduced resolution. You should also consider spectral sensitivity, supported lighting modes (strobe, continuous), lens mount or integrated optics, I/O count and type, communication interfaces, and the library of available tools (e.g., measurement, OCR, code reading, robot guidance) relative to your application requirements.

How do environmental and integration factors influence the choice of a vision sensor?

Environmental constraints such as temperature range, IP protection rating, vibration, and ambient light levels determine enclosure needs, filter selection, and whether an integrated or separate illumination module is preferable. Integration requirements such as available mounting distance, required field of view, depth of field, line speed, and trigger source (photoelectric sensor, encoder, PLC) will influence focal length, working distance, focusing method (fixed, manual, autofocus), and required synchronization capabilities of the vision sensor.

What affects pricing, lead time, and customization options for vision sensors in industrial projects?

Pricing is primarily driven by sensor resolution, processing capability, integrated lighting, ruggedization (IP65/IP67 housings), and software feature sets such as 3D tools or advanced code reading and OCR libraries. Lead times are typically a few days to several weeks depending on stock, region-specific approvals, and configuration; customization may include special optical filters, communication protocol options, custom I/O pinouts, application-specific firmware profiles, or preconfigured inspection recipes for OEM deployments.

Filter Products

Imaging and Vision
Vision Sensors
OCR and Barcode Readers

Industrial OCR and Barcode Readers on FindLight

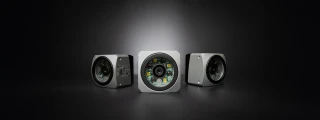

Balluff BVS VisionSensor - Easiest Way for 1D/2D Code Reading and Text Reading (OCR)

Request Quote

Sold by: Balluff Ships from: United States

Specifications
Max Motion Speed:	Not Specified
Reading Distance:	Not Specified
Max Image Size:	23 – 305 mm
Reading Speed:	Not Specified

Did You Know?

Did you know that many modern industrial barcode readers don’t actually scan a visible "line" across the code, but instead use global-shutter CMOS imagers and decode the entire 2D symbol in a single exposure as short as 50–200 μs to freeze motion on high-speed conveyors? A common pitfall in OCR/ID readers is using insufficient depth of field and non-telecentric optics, which causes character edge distortion and perspective skew; this can push OCR error rates up by an order of magnitude even when image resolution (pixels per character) technically meets the datasheet minimum. Lighting geometry is equally critical: low-angle dark-field or coaxial lighting is often required to suppress specular reflections on shiny packaging, enabling robust decoding of low-contrast DataMatrix and DPM (Direct Part Mark) codes.

Related Resources

Frequently Asked Questions

A vision sensor is an integrated imaging device that combines an image sensor, optics interface, embedded processor, and decision logic to perform specific inspection or detection tasks autonomously. Unlike a general-purpose industrial camera that simply streams raw images to an external PC, a vision sensor typically executes predefined measurement, presence/absence, code reading, or alignment algorithms on-board and outputs digital I/O, fieldbus, or Ethernet results to the control system.

Overview of OCR and Barcode Readers

OCR and Barcode Readers are vision sensors that decode printed or marked data such as 1D barcodes, 2D codes (Data Matrix, QR), and human-readable characters. In photonics-based inspection systems, these devices combine illumination, imaging optics, and embedded decoding algorithms to convert visual codes into digital data for tracking, identification, and process control.

On FindLight, OCR and Barcode Readers span handheld and fixed-mount configurations suitable for integration into conveyors, robotic cells, packaging lines, and laboratory automation platforms. They support decoding on various substrates including paper labels, metal parts with direct part marks (DPM), and plastic packaging.

Typical Specifications for OCR and Barcode Readers

When evaluating OCR and Barcode Readers, engineers typically compare:

Code types: 1D (EAN, UPC, Code 128, Code 39), 2D (Data Matrix, QR, PDF417), and alphanumeric OCR/OCV.
Sensor resolution: Commonly VGA to multi‑megapixel CMOS or CCD, determining minimum code size and field of view.
Reading distance and depth of field: From close-range millimeter-level to long-range meter-level decoding, depending on optics.
Illumination: Integrated LED ring or bar lights in various wavelengths for high contrast on reflective or low-contrast surfaces.
Decoding speed: Frames per second and maximum line speed for motion applications.
Interfaces: Ethernet, Ethernet/IP, PROFINET, RS‑232, USB, and digital I/O for PLC and MES integration.
Mechanical and environmental: IP rating, operating temperature, vibration tolerance, and housing form factor.

Use Cases of OCR and Barcode Readers

OCR and Barcode Readers are used in track-and-trace for electronics and semiconductor components, vial and syringe identification in life sciences, label verification in packaging, logistics sorting, and direct part mark reading in automotive and aerospace manufacturing. They also support quality control tasks such as print quality grading and code presence verification.

Buyer Guidance on FindLight

When selecting OCR and Barcode Readers, match code type support, resolution, and depth of field to your part size and working distance. Verify that decoding speed and communication interfaces align with existing PLCs, robots, and host controllers. Consider illumination options if you work with highly reflective metals or low-contrast laser marks.

On FindLight, you can browse OCR and Barcode Readers, compare detailed specifications, and request quotes directly from suppliers. No registration is required to initiate technical inquiries, allowing procurement engineers and R&D teams to quickly validate compatibility and obtain pricing and lead-time information.
