Athermal Arrayed Waveguide Grating

Pure Photonics
REQUEST QUOTE

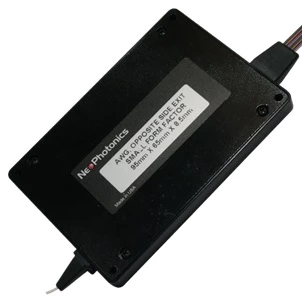

Athermal Arrayed Waveguide Grating

OVERVIEW

Arrayed Waveguide Grating for use in wideband DWDM networks. Multiplexes/demultiplexes  up to 48 channels onto 1 output fiber.


Input 48 channels in 4 12-fiber ribbons.


Optionally with break-out boxes for fiber ribbons

SPECIFICATION

  • Channel Spacing: 100 GHz
  • Insertion Loss (max): 3 dB
  • Return Loss (min): 40 dB
Download Data Sheet

Applications

Multiplexing and demultiplexing

KEY FEATURES

Wideband Arrayed Waveguide Grating
Athermal over -5–60C
191.2 – 196.10 THz
C-band 100GHz spaced
48 channels
        Input 4 12-channel ribbons
        Output  SMF LC
<5dB Loss
<!--5dB-->Fully passive
