Description
Thulium-Ytterbium co-doped fiber TYDF-DC-10/125 series is specially designed for highly efficient pumping with MM pump sources at 915/975nm. Pumping with conventional sources near 790 nm is also possible, as well as core pumping with EDFL operating at 1550-1600nm.
THULIUM-YTTERBIUM CODOPED FIBERS TYDF-DC-10-125
Specifications
| Core Diameter: | 11.5 um |
|---|---|
| Clad Diameter: | 125 um |
| Core NA: | 0.22 |
| Cutoff Wavelength: | 2600 nm |
| Core Diameter, µm: | 11.5 ± 1.0 |
| Clad Diameter, µm: | 125 ± 3 |
| Clad Shape: | square |
| Core NA: | 0.22 ± 0.04 |
| Cutoff Wavelength, µm: | 2.6 ± 0.1 |
| Clad NA: | 0.44 ± 0.02 |

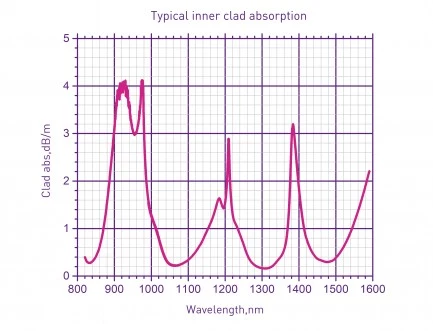

| Clad Absorption (915 Nm), DB/m: | › 3.5 |
| Clad Absorption (976 Nm), DB/m: | › 5 |
Download Data Sheet
Applications
- EDFL
- Fiber lasers
Frequently Asked Questions
What is the TYDF-DC-10/125 fiber series designed for?
The TYDF-DC-10/125 fiber series is specially designed for highly efficient pumping with MM pump sources at 915/975nm.
Can the TYDF-DC-10/125 fiber be pumped with conventional sources near 790 nm?
Yes, pumping with conventional sources near 790 nm is also possible with the TYDF-DC-10/125 fiber.
Is core pumping possible with the TYDF-DC-10/125 fiber?
Yes, core pumping is possible with the TYDF-DC-10/125 fiber using EDFL operating at 1550-1600nm.
What is the core diameter of the TYDF-DC-10/125 fiber?
The core diameter of the TYDF-DC-10/125 fiber is 11.5 ± 1.0 µm.
What is the cutoff wavelength of the TYDF-DC-10/125 fiber?
The cutoff wavelength of the TYDF-DC-10/125 fiber is 2.6 ± 0.1 µm.
