Description

LMA Ytterbium doped tapered fiber YDF-DC-40/400-PM-TPR series is designed for operation without any power degradation in extremely high-peak-power cladding-pumped amplifiers.

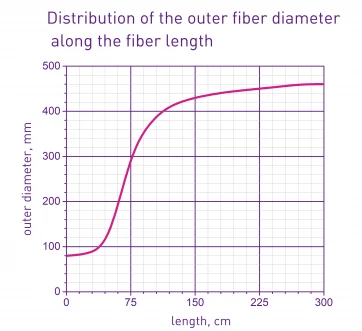

The new tapered fiber design has a single-mode end (typical dimension is 8/80 µm) for signal input and a very-large-mode-area end (typical dimension is 40/400 µm) for signal output and pump input. The all-glass double-clad fiber design (based on highly F-doped second cladding with typical NA=0.26) allow simple polishing of the thick 400 µm fiber end.

Due to a high Yb concentration and a short tapered fiber length amplifiers based on this fiber has the highest threshold of nonlinear effects over the market (up to 0.5 MW) together with the diffraction limited beam quality at the output.

LMA YTTERBIUM DOPED TAPERED FIBERS YDF-DC-40/400-PM-TPR-2.5

Visit the FORC-Photonics Store

Specifications

Core Diameter: 9 um
Clad Diameter: 90 um
Core NA: 0.09
Cutoff Wavelength: 1000 nm
Photodarkening Resistance: > 20 times better compare to the Al2O3-SiO2 Yb-doped fiber
Core Diameter Input, µm: 9 ± 1
Core Diameter Output, µm: > 40
Clad Diameter Input, µm: 90 ± 10
Clad Diameter Output, µm: 400 ± 50
Cutoff Wavelength, µm: < 1.0
Clad Shape: PANDA with F-doped second cladding
Core NA: 0.09 ± 0.01
Clad NA: > 0.26

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • PHOTODARKENING FREE
  • Yb-DOPED DOUBLE CLAD
  • POLARIZATION-MAINTAINING
  • TAPERED FIBER

Applications

  • Fiber lasers
  • Amplifiers
  • Laser optics

Frequently Asked Questions

What is the purpose of the LMA Ytterbium doped tapered fiber YDF-DC-40/400-PM-TPR series?
The LMA Ytterbium doped tapered fiber YDF-DC-40/400-PM-TPR series is designed for operation without any power degradation in extremely high-peak-power cladding-pumped amplifiers.
What are the dimensions of the single-mode end and the very-large-mode-area end of the fiber?
The typical dimensions of the single-mode end are 8/80 µm for signal input, and the typical dimensions of the very-large-mode-area end are 40/400 µm for signal output and pump input.
What is the design of the fiber and how does it allow for simple polishing of the thick 400 µm fiber end?
The fiber has an all-glass double-clad design based on a highly F-doped second cladding with a typical NA of 0.26. This design allows for simple polishing of the thick 400 µm fiber end.
What is the threshold of nonlinear effects for amplifiers based on this fiber?
Amplifiers based on this fiber have the highest threshold of nonlinear effects over the market, up to 0.5 MW.
What is the beam quality at the output of amplifiers based on this fiber?
Amplifiers based on this fiber have diffraction-limited beam quality at the output.

Got more questions? Use the inquiry form to ask the supplier directly.
