Description
Bismuth-Phosphorus co-doped fiber BPDF-SM-6/125-1320 series is specially designed for typical application for amplifiers, lasers, super-fluorescent fiber sources operating at 1270-1370nm.
BISMUTH-PHOSPHORUS CODOPED FIBERS BPDF-SM-6/125-1320
Specifications
Typical Laser Eff-cy: | › 25% (vs pump power at 1240 nm) |
---|---|

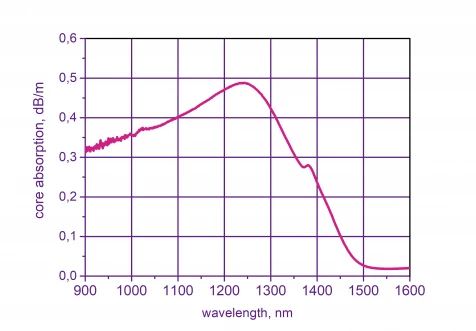

Core Absorption (1240 Nm), DB/m: | 0.5 ± 0.05 |
Cutoff Wavelength, µm : | 1.05 ± 0.05 |
Core NA: | 0.14 ± 0.02 |
Amplification Range (-3dB), µm: | 1.295 ÷ 1.340 |
Typ. Peak Gain (@1320 Nm), DB/m: | › 0.2 (Pp ‹ 350mW @ 1240 nm) |
Applications
- Laser and Laser Amplifiers,
- Super-fluorescent fiber sources operating at 1270-1370nm.
Frequently Asked Questions
Is it possible to get other parameters for Bismuth-Phosphorus co-doped fiber BPDF-SM-6/125-1320 on request?
Yes, other parameters are available on request.
What are the applications of Bismuth-Phosphorus co-doped fiber BPDF-SM-6/125-1320?
The applications are Laser and Laser Amplifiers, Super-fluorescent fiber sources operating at 1270-1370nm.
What are the specifications of Bismuth-Phosphorus co-doped fiber BPDF-SM-6/125-1320?
The specifications are Core diameter, µm 5.6 ± 0.6, Clad diameter, µm 125 ± 5, Core NA 0.14 ± 0.02, Cutoff wavelength, µm 1.05 ± 0.05, Core absorption (1240 nm), dB/m 0.5 ± 0.05, Amplification range (-3dB), µm 1.295 ÷ 1.340, Typ. peak gain (@1320 nm), dB/m › 0.2 (Pp ‹ 350mW @ 1240 nm), Typical laser eff -cy › 25% (vs pump power at 1240 nm).
What is Bismuth-Phosphorus co-doped fiber BPDF-SM-6/125-1320 used for?
It is specially designed for typical application for amplifiers, lasers, super-fluorescent fiber sources operating at 1270-1370nm.
What is the core absorption of Bismuth-Phosphorus co-doped fiber BPDF-SM-6/125-1320?
The core absorption (1240 nm) is dB/m 0.5 ± 0.05.
