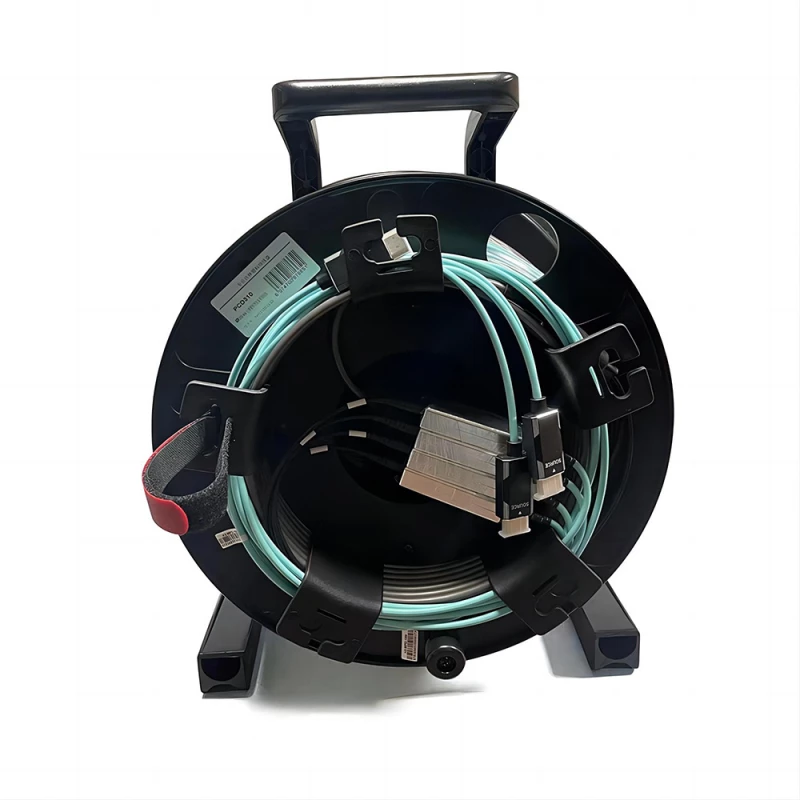

Thumbnail of Armored Four-In-One 8K HDMI 2.1 Fiber Active Optical Cable on Roxtone PCD 310 drum 4K 8K 120Hz HDR photo 1

Description

Crafted with high-quality 24-core OM3 pure fiber optical cable, this 8K Fiber Optical HDMI Cable are designed to extend the transmission distance between data source and display devices with a maximum length of 500 meters for 4K/120p HD & 200 meters for 8K/60p UHD, which offer unmatched transmission capabilities with a maximum data rate of 48Gbps.

The FHDC-21AA-DXXX serires Armored Four-In-One 8K Fiber Optical HDMI Cable is a game-changer for 8K HDMI signal transmission, especially for live events organizers & rental service providers, to solve the pain points below:

  • Frustrated by the hefty shipping bills for multiple HDMI cable reels ?
  • Tired of replacing entire reels for one faulty HDMI head?
  • Worried about signal quality and distance?
  • Fret about multiple MEDIA CONVERTER power supplies ?

Armored Four-In-One 8K HDMI 2.1 Fiber Active Optical Cable on Roxtone PCD 310 drum 4K 8K 120Hz HDR

Bones Electronics Co., Ltd

Specifications

Cable Length: 500 m
Color: Green
Compatible Devices: Television, Personal Computer, XBox, PlayStation
Maximum Bandwidth: 48 Gbps
Video Resolution (60Hz): High Definition (HD), Full HD, FHD, 2K, Quad HD, QHD, 4K, Ultra HD, UHD, 8K, Ultra HD, UHD
Max Core Depth: 7680 bits
Active Optical Cable: Yes
Max. Transmission Length: 500 Meters
Interface Version: HDMI 2.1
Power Consumption: 250mW
Cable: Φ4.8mm Pure Fiber(OM3 Multi-mode) Cable
RoHS Compliant: Yes
Resolution: 8K/60p and 4K/120p
Bandwidth: 48Gbps
Audio: eARC, LPCM 7.1 audio, Dolby® Digital Plus,Dolby® TrueHD, and DTS-HD® Master Audio™

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Rectractable & Durable design with protection caps;
  • Extend full 7680 x 4320(8K), 4096 x 2160 (4K), 3840 x 2160 (2K) at 60Hz 4:4:4 video signals
  • Fully supports HDMI 1.4, 2.0 & 2.1 spec, including eARC, 21:9 Aspect Ratio and more
  • PCM, DTS-HD Master and Dolby Digital True HD Surround Sound compatible
  • Pure fiber transmits EMI-Free singnal up to 500m for 4K/60P
  • Supports HDCP 2.2 / EDID / DDC / CEC
  • Custom length up to up to 500m

Applications

  • Digital signage
  • LED display and walls
  • Medical imaging equipment
  • Airport boarding video information system
  • Home Theater, Blu-ray, 3D video, projector, set-top box, DVR, game console control and monitor connection
  • Radio and TV station
  • Video conference equipment
  • Security monitoring system

Frequently Asked Questions

What is the bandwidth of this HDMI Fiber Cable ?
This HDMI Fiber Cable offers a bandwidth of 48 Gbps for uncompressed audio/video for every each connection
Is this HDMI 2.1 Fiber Optical Cable backward compatiable with HDMI 1.4,HDMI 2.0 ?
Yes
Does this 8K Fiber Optic HDMI 2.1 Cable fully shielded ?
Yes. Unlike tranditional HDMI Cables made of copper. This 8K Fiber Optic HDMI 2.1 Cable is made of OM3 Multi-mode pure fiber optical cable, which supports maximum 100Gbps bandwidth, fully EMI-free.
What's the advantages of this FOUR-IN-ONE 8K Fiber Optic HDMI 2.1 Cable compared with 8K HDMI 2.1 Active Optical Cables ?
Longer length up to 500m; Highly-integrated design, each cable drum comes with 4PCs HDMI in & out. Easy storage,maintenance and cost-saving.
