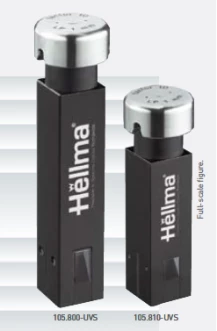

TrayCell Fibre-Optic Ultra-Micro Cell 105.810-UVS
Description
The TrayCell is a fibre-optic ultra-micro cell designed for the UV/Vis analysis of DNA/RNA and proteins. The dimensions of the TrayCell are equivalent to a standard cuvette in order to work in most spectrophotometers.
TrayCell Fibre-Optic Ultra-Micro Cell 105.810-UVS
Specifications |
|
|---|---|
| Window Material: | Quartz SUPRASIL |
| Wavelength Range: | 190-1100nm |
| Width: | 12.5 mm |
| Depth: | 12.5 mm |
| Height: | 64.5 mm |
| Light Path: | 0.2 mm |
| Max Temperature: | 50 degC |
| Fiber Optic Cable: | UV-VIS |
Features
Different light paths standard 1 and 0.2 mm
Very small measurement volumes 0.7 to 5 μl
Large dynamic range of 2 - 5000 ng/μl (dsDNA)*
No dilution of sample needed
No evaporation of the sample through the cap
Reuse of samples possible
Simple application and cleaning
Suitable for all current spectrophotometers
Applications
Excellent reproducibility
Quick and easy cleaning
Simple handling
High flexibility
Low acquisition cost
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The TrayCell is a fibre-optic ultra-micro cell designed for the UV/Vis analysis of DNA/RNA and proteins.
The dimensions of the TrayCell are equivalent to a standard cuvette in order to work in most spectrophotometers.
The TrayCell has a large dynamic range of 2 - 5000 ng/μl (dsDNA).
No, dilution of sample is not needed for the TrayCell.
Yes, the TrayCell is suitable for all current spectrophotometers.
