Description
Ocean Optics Holders for 1-cm Cuvettes

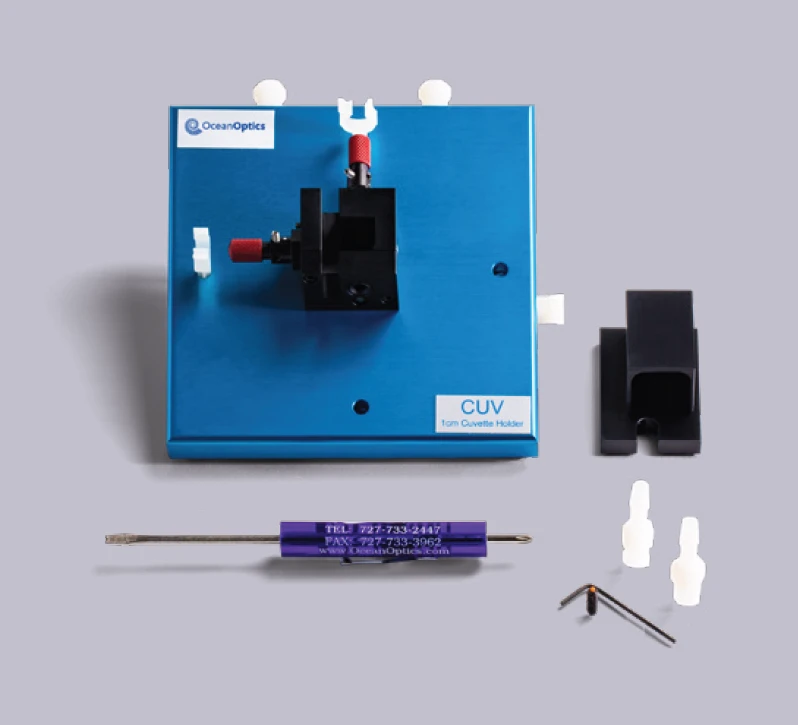

CUV-UV Holder for 1-cm Cuvettes: The CUV-UV Cuvette Holder is an essential component for creating compact spectrophotometric systems. Designed to accommodate 1-cm pathlength cuvettes, this holder seamlessly integrates with Ocean Optics high-sensitivity miniature fiber optic spectrometers and light sources. By coupling via SMA 905-terminated optical fibers, it facilitates absolute absorbance measurements of aqueous solutions. Its compact design is specifically optimized for UV-VIS-NIR, making it a versatile choice for various spectroscopic applications.

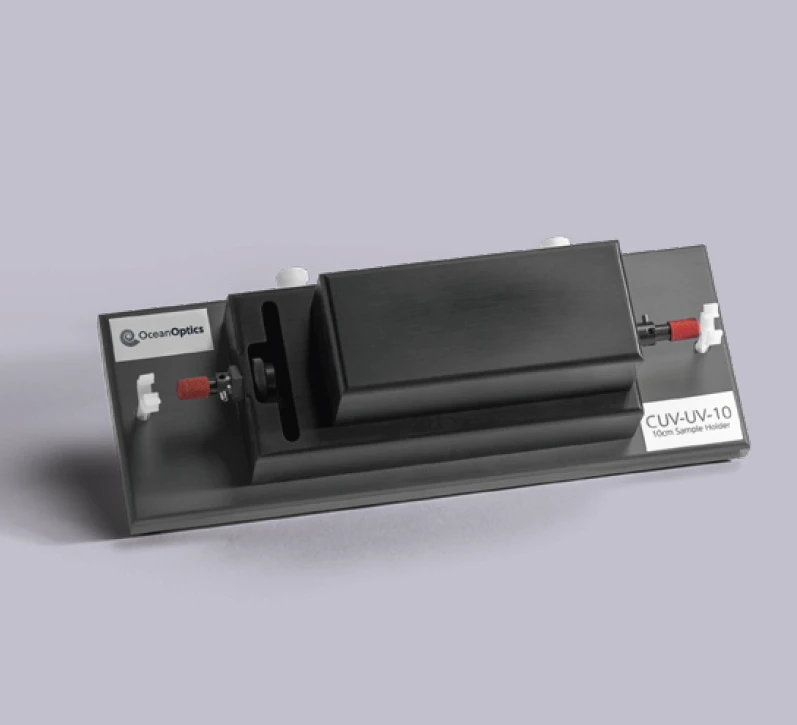

CUV-UV-10 Holder for 10-cm Cuvettes: The CUV-UV-10 Cuvette Holder is tailored for 10-cm pathlength cuvettes, providing a robust solution for absorbance and transmission measurements of both aqueous solutions and gases. Like its 1-cm counterpart, it connects via SMA 905-terminated optical fibers to Ocean Optics spectrometers and light sources, ensuring a small-footprint setup. This holder is also optimized for UV-VIS-NIR, offering flexibility and precision in a range of spectroscopic experiments.

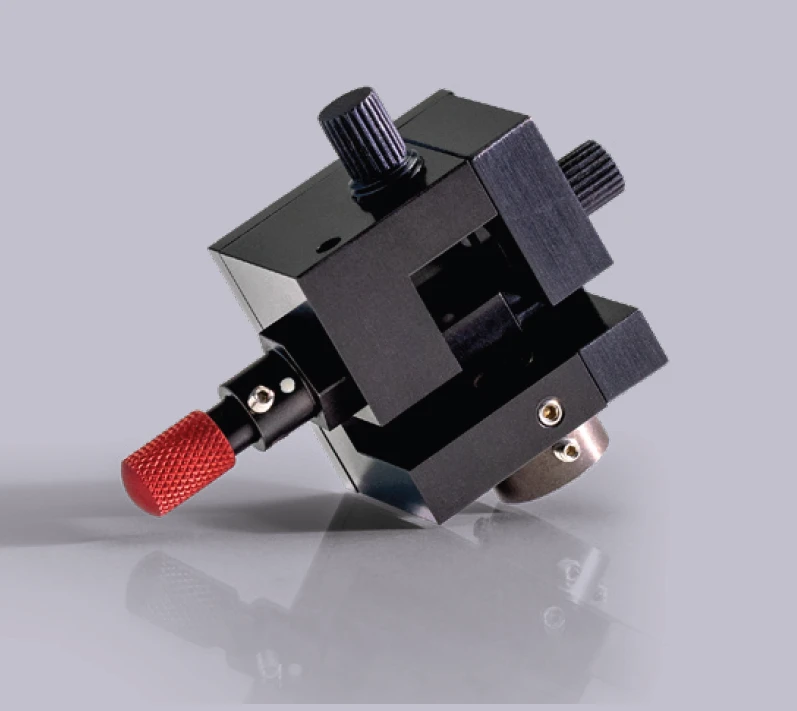

CUV-FL-DA Direct-attach Cuvette Holder: The CUV-FL-DA Cuvette Holder offers a unique direct-attach feature to Ocean Optics light sources, creating an ultra-compact spectrophotometric system. It supports fluorescence and relative absorbance experiments by holding 1-cm square cuvettes and coupling with spectrometers via SMA 905-terminated optical fibers. Optimized for a broad range of applications from 200 to 2000 nm, this holder is ideal for researchers seeking efficiency and precision in their fluorescence studies.

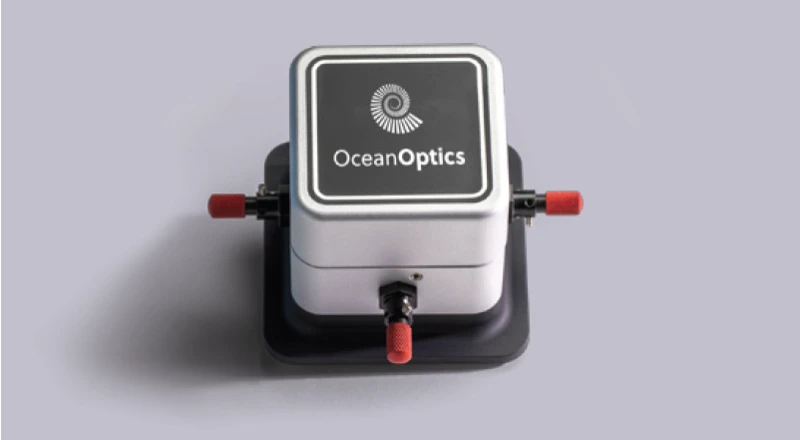

SQ1-ALL Square One Cuvette Holder: The SQ1-ALL Square One Cuvette Holder is a versatile tool equipped with three collimators and two filter holders. Designed for a 1-cm path, it features an integrated cover and supports a wide spectral range from 200 to 2000 nm. This holder is perfect for complex experimental setups requiring multiple optical components, providing researchers with the flexibility to conduct comprehensive spectroscopic analyses.
74-MSP Mirror Screw Plugs
The 74-MSP Mirror Screw Plugs are designed to enhance the performance of fluorescence cuvette holders. By inserting these plugs into a collimating lens port, users can redirect energy back to the sample or into a collimating lens, significantly increasing signal collection for fluorescence measurements. These plugs are an invaluable accessory for optimizing the efficiency and accuracy of fluorescence experiments.
Cuvette Holders for Spectrophotometric Systems
Specifications |
|
|---|---|
| Pathlength: | 1 cm |
| Z Dimension Spec: | 15 mm |
| Integrated Light Source: | No |
| Light Source Mount Diameter: | 9.52 mm |
| Z Dimension: | 15 mm |
| Fiber Termination: | SMA 905 |
| Collimating Lens (SQ1-ALL): | 3 each 74-uv |
| Collimating Lens (CUV-FL-DA): | 1 pcs 74-UV |
| Collimating Lens (CUV-UV-10): | 2 each 74-UV |
| Collimating Lens (CUV-UV): | 2 each 74-UV |
| Water Input Fittings (CUV-UV-10): | 3.175 mm (1/8”) NPT |
| Water Input Fittings (CUV-UV): | 3.175 mm (1/8”) NPT |
| Filter Slot (SQ1-ALL): | 12.5 mm and 25 mm |
| Filter Slot (CUV-FL-DA): | Up to 6 mm, screw clamp |
| Filter Slot (CUV-UV-10): | Up to 6 mm, wheel clamp |
| Filter Slot (CUV-UV): | Up to 6 mm, screw clamp |
| Dimensions (CUV-UV): | 58 mm x 140 mm x 38 mm |
| Pathlength (SQ1-ALL): | 1 cm |
| Pathlength (CUV-FL-DA): | 1 cm |
| Pathlength (CUV-UV-10): | 10 cm |
| Pathlength (CUV-UV): | 1 cm |
| Weight (SQ1-ALL): | 544.3 g |
| Weight (CUV-FL-DA): | 80 g |
| Weight (CUV-UV-10): | 1.4 kg |
| Weight (CUV-UV): | 230 g |
| Dimensions (SQ1-ALL): | 90.6 mm x 90.6 mm x 71.6 mm |
| Dimensions (CUV-FL-DA): | 57 mm x 61 mm x 29 mm |
| Dimensions (CUV-UV-10): | 97 mm x 147 mm x 40 mm |
Features
- Versatile Compatibility: The CUV-UV Cuvette Holder is designed for 1-cm pathlength cuvettes and can be coupled with Ocean Optics high-sensitivity miniature fiber optic spectrometers and light sources.
- Compact Design: This cuvette holder is optimized for UV-VIS-NIR, providing a small-footprint solution for absolute absorbance measurements of aqueous solutions.
- Multiple Options: Choose from different models including the CUV-UV-10 for 10-cm cuvettes, the CUV-FL-DA for direct attachment, and the SQ1-ALL with additional features like collimators and filter holders.
- High-Performance Measurements: The CUV-UV-10 model is ideal for absorbance/transmission measurements of both aqueous solutions and gases.
- Fluorescence and Relative Absorbance: The CUV-FL-DA model is perfect for fluorescence and relative absorbance experiments, optimized for UV-VIS-NIR (200-2000 nm) applications.
- Enhanced Signal Collection: Mirror Screw Plugs are available to increase signal collection for fluorescence measurements by redirecting energy back to the sample.
- Robust Construction: Each model is built with specific dimensions and weights to suit various experimental setups, ensuring durability and reliability.
- Easy Integration: All models feature SMA 905 fiber termination for seamless integration with existing systems.
- Customizable Options: Filter slots and water input fittings are available in select models for enhanced experimental flexibility.
Applications
- CUV-UV: Holder for 1-cm Cuvettes
- Couples via SMA 905-terminated optical fibers to Ocean Optics high-sensitivity miniature fiber optic spectrometers and light sources.
- Creates small-footprint spectrophotometric systems for absolute absorbance measurements of aqueous solutions.
- Optimized for UV-VIS-NIR.
- CUV-UV-10: Holder for 10-cm Cuvettes
- Couples via SMA 905-terminated optical fibers to Ocean Optics high-sensitivity miniature fiber optic spectrometers and light sources.
- Creates small-footprint spectrophotometric systems for absorbance/transmission measurements of aqueous solutions and gases.
- Optimized for UV-VIS-NIR.
- CUV-FL-DA: Direct-attach Cuvette Holder
- Attaches directly to Ocean Optics light sources and couples via SMA 905-terminated optical fibers to spectrometers.
- Creates an incredibly small-footprint spectrophotometric system for fluorescence and relative absorbance experiments.
- Optimized for UV-VIS-NIR (200-2000 nm) applications.
- Holds 1-cm square cuvettes.
- SQ1-ALL: Square One cuvette holder
- Features 3 collimators, 1-cm path, 2 filter holders, and an integrated cover.
- Optimized for 200-2000 nm applications.
- 74-MSP: Mirror Screw Plugs
- Designed for use with fluorescence cuvette holders.
- Inserted into a collimating lens port on the cuvette holder to redirect energy back to the sample or back into a collimating lens.
- Increases signal collection for fluorescence measurements.
Frequently Asked Questions
The CUV-UV Cuvette Holder is used for holding 1-cm pathlength cuvettes and is designed to couple with Ocean Optics high-sensitivity miniature fiber optic spectrometers and light sources for absolute absorbance measurements of aqueous solutions.
The CUV-UV-10 Cuvette Holder has dimensions of 97 mm x 147 mm x 40 mm and weighs 1.4 kg.
The CUV-FL-DA Cuvette Holder is optimized for UV-VIS-NIR applications, specifically for fluorescence and relative absorbance experiments.
The SQ1-ALL Cuvette Holder includes 3 collimators, 2 filter holders, and an integrated cover, which allows for enhanced control and flexibility in spectrophotometric experiments across a wavelength range of 200-2000 nm.
The 74-MSP Mirror Screw Plugs are designed for use with fluorescence cuvette holders to redirect energy back to the sample or into a collimating lens, thereby increasing signal collection for fluorescence measurements.
All the cuvette holders mentioned use SMA 905-terminated optical fibers for coupling with spectrometers and light sources.
More information about these products can be found by visiting the Ocean Optics website or contacting them via their provided phone number.
