LDTGJ1-xx Series High-precision Optical Post Holders Optical Constitute Different Optical Path Systems and Optical Instruments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Description

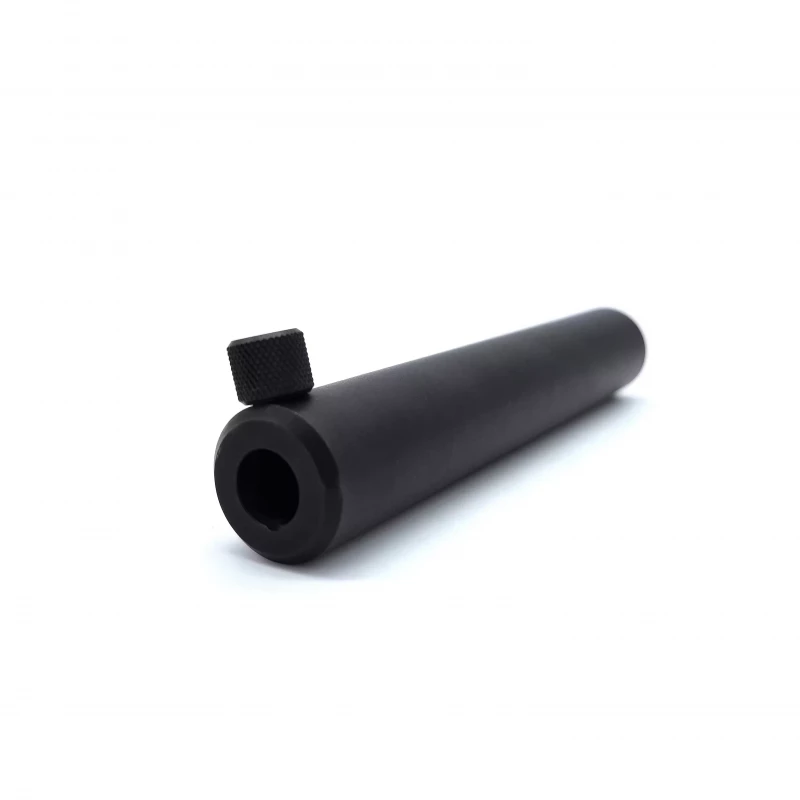

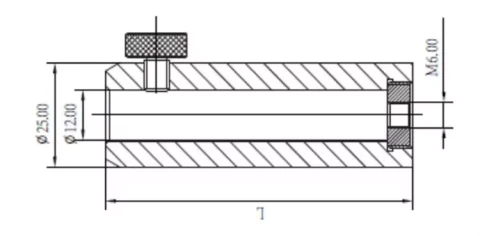

The center hole has a finely machined V-shaped groove, which does not produce other position changes when adjusting the height of the connecting rod. The M6 threaded hole at the bottom is convenient for connecting with other optical mounts. It is an intermediate connector with products of different height series. The upper end is mainly connected to the support rod, and the lower end is fixed to the bottom plate or magnetic base. It can also be directly connected to the company's translation stage, goniometer stage, vertical stage, rotation stage, or directly connected to the optical flat plate and optical platform to build a complex optical path system.
LDTGJ1-xx Series High-precision Optical Post Holders Optical Constitute Different Optical Path Systems and Optical Instruments
Specifications |
|
|---|---|
| Max Post Diameter: | 25 mm |
| Length: | 150 mm |
| Model: | LSGB1-4 |
| Installation Thickness: | 4mm |
| Installation Width: | 35-300mm |
| Net Weight: | 0.55kg |
| Model: | LSGB2-7 |
| Model: | LSGB2-16 |
| A: | 60 |
| A: | 90 |
| B: | 25 |
| B: | 26 |
| C: | 55 |
| C: | 65.5 |
| Installation Thickness Max.: | 7 |
| Installation Thickness Max.: | 16 |
| Net Weight: | 0.1kg |
| Net Weight: | 0.15kg |
| Model: | LSGB3-10 |
| Installation Thickness Range: | 0-10 |
| Installation Width: | 0-60 |
| Net Weight: | 0.25kg |
Features
- V-Shaped Groove: Finely machined center hole with a V-shaped groove ensures stable height adjustments of the connecting rod without positional shifts.
- M6 Threaded Hole: Bottom threaded hole allows easy connection with other optical mounts.
- Intermediate Connector: Facilitates connections between products of varying heights.
- Versatile Connectivity: Upper end connects to support rods, while the lower end attaches to a bottom plate or magnetic base.
- Direct Compatibility: Can be directly connected to translation stages, goniometer stages, vertical stages, rotation stages, optical flat plates, and optical platforms.
- Complex System Integration: Enables the construction of intricate optical path systems.
Applications
- Height Adjustment Stability: Maintains position accuracy during height adjustments in optical setups.
- Flexible Mounting: Connects various optical mounts and stages for versatile setup configurations.
- Research and Development: Ideal for building and adjusting complex optical systems in lab environments.
- Precision Optical Path: Supports the creation of precise and stable optical paths in experimental and industrial applications.
Frequently Asked Questions

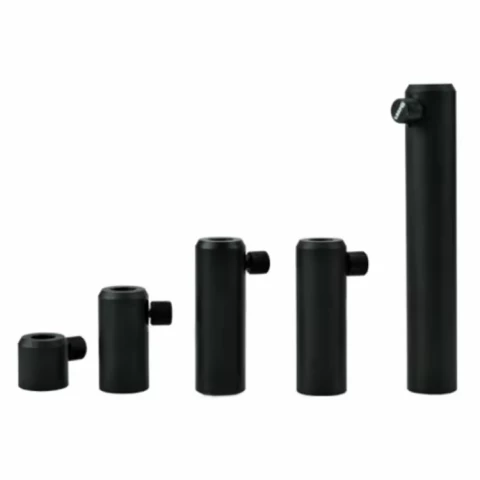

Jiangxi Liansheng Technology Co., Ltd offers various optical mounting bases including the LSGB1-4, LSGB2 series, and LSGB3-10 models, as well as mounting base clamps from the LSDB series.
The optical mounting bases are made from aluminum with a black anodized surface treatment.
The LSGB1-4 model has an installation thickness of 4mm and an installation width ranging from 35mm to 300mm.
Jiangxi Liansheng Technology Co., Ltd is located at No 1015, Jinsha Third Road, Xiaolan Economic Development Zone, Nanchang, Jiangxi Province, PRC.
The net weight of the LSGB2-7 model is 0.1kg, and the LSGB2-16 model is 0.15kg.
The LSGB3-10 model has an installation thickness range of 0-10mm.
