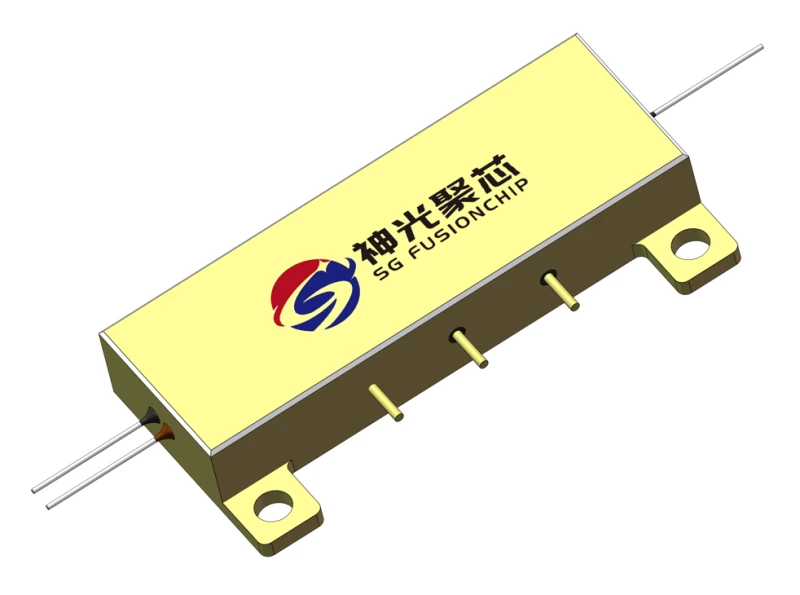

Thumbnail of LN15-22CFL-1550nm Lithium Niobate Integrated Optical Multi Function Chip photo 1

Description

Shanghai Aoshi Control Technology Co., Ltd presents the LN15-22CFL Lithium Niobate Integrated Optical Multi-Function Chip, a cutting-edge solution designed for advanced optical applications. This innovative chip is engineered with precision to deliver exceptional performance in fiber optic systems, leveraging the unique properties of lithium niobate to enhance signal processing capabilities. Situated in the heart of Shanghai, our company is committed to providing high-quality optical components that meet the rigorous demands of modern technology.

This design facilitates efficient optical splitting, combining, and polarization functions, making it an ideal choice for sophisticated optical systems. The integration of electrodes on the branch arms allows for precise phase adjustments of transmitted light, enabling superior signal processing. Our advanced angled coupling technique minimizes back reflection and residual intensity modulation, ensuring optimal performance and reliability.

Our product is housed in a robust metal package, ensuring durability and protection in various environmental conditions. The LN15-22CFL chip is designed to operate efficiently across a wide temperature range, making it suitable for diverse applications in fiber optic gyroscope systems and coherent detection fiber sensors. With a focus on minimizing polarization crosstalk and insertion loss, this chip provides a reliable and efficient solution for your optical needs.

LN15-22CFL-1550nm Lithium Niobate Integrated Optical Multi Function Chip

Visit the Shanghai Aoshi Control Technology Co.Ltd Store

Specifications

Chip Function: Light Splitting, Light Combining, Polarization Handling, Sensing, Signal Processing, Waveguide
Material Platform: Lithium Niobate (LiNbO₃)
Operating Wavelength Range: 1550 – 1550 nm
Fiber Interface: PM fiber pigtail, Polarization-maintaining (PM)
Active Vs Passive: Passive
Application: Fiber Optic Gyroscope (FOG), Fiber Sensing

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Operating Wavelength: 1550 nm
  • Lithium Niobate APE waveguide with high Polarization Extinction Ratio
  • Low Insertion Loss, low return loss
  • Precision coupling between fiber pigtail and chip, low back reflection
  • Push-pull electrode design for low Half-Wave Voltage
  • Operating mode: PM fiber pigtail fast axis
  • Operating Temperature Range: -45°C to +70°C
  • Storage Temperature Range: -55°C to +85°C

Applications

  • Fiber Optic Gyroscope Systems
  • Coherent Detection Fiber Sensors
  • Other Fiber Sensing Fields

Frequently Asked Questions

What is the operating wavelength of the LN15-22CFL chip?
The operating wavelength of the LN15-22CFL chip is 1550 nm.
What are the main applications of the LN15-22CFL chip?
The main applications include Fiber Optic Gyroscope Systems, Coherent Detection Fiber Sensors, and other Fiber Sensing Fields.
What is the operating temperature range for the LN15-22CFL chip?
The operating temperature range is from -45°C to +70°C.
What is the insertion loss at room temperature for the LN15-22CFL chip?
The insertion loss at room temperature is ≤3.5 dB.
What is the half-wave voltage of the LN15-22CFL chip?
The half-wave voltage is ≤4.2 V.
What is the bandwidth of the LN15-22CFL chip?
The bandwidth is ≥300 MHz.
Can the parameters of the LN15-22CFL chip be customized?
Yes, specific parameters can be customized according to customer requirements.
