Description
1310 Standard Y-Waveguide product is designed to support multiple operating wavelength windows, including 1310 nm and 1550 nm. These wavelength windows are optimized through targeted design to adapt to diverse application scenarios, ensuring high-efficiency performance across various spectral regions. 1310 Standard Y-Waveguide supports customization based on specific customer requirements, offering flexible solutions for wavelength selection and packaging configurations.

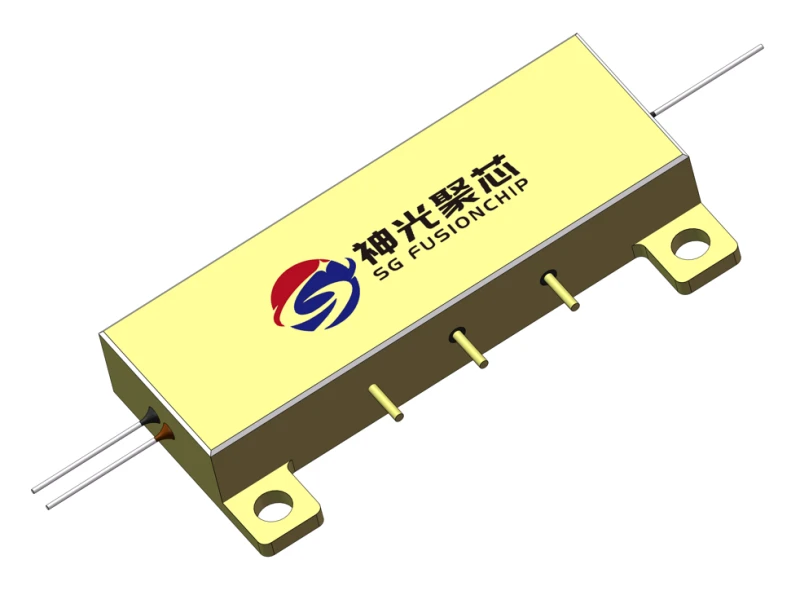

1310 Standard Y-Waveguide
Specifications
| Chip Function: | Light Splitting, Light Combining, Polarization Handling, Sensing, Signal Processing, Waveguide, Delay |
|---|---|
| Material Platform: | Lithium Niobate (LiNbO₃) |
| Operating Wavelength Range: | 1310 – 1310 nm |
| Fiber Interface: | PM fiber pigtail, Polarization-maintaining (PM) |
| Active Vs Passive: | Passive |
| Application: | Fiber Optic Gyroscope (FOG), Fiber Sensing |
| Wavelength: | 1310 Standard nm |
| Insert Loss: | ≤3.5 dB |
| Splitting Ratio: | 48/52~52/48 % |
| Polarization Extinction Ratio: | ≤-30.0 dB |
| Half-wave Voltage: | ≤3.5 V |
| Waveform Slope: | ≤1/250 |
| Polarization Extinction Ratio Over Temperature: | ≤-25.0 |
| Insertion Loss Variation Over Temperature: | ≤0.5 dB |
| Splitting Ratio Variation Over Temperature: | ≤3 % |
| Packaging: | Metal/Ceramic Shell Packaging |
| Fiber Type: | PM125/250 or PM80/165 |
| Fiber Length: | ≥1.2 m |
| Operating Temperature: | -45～+70 ℃ |
Download Data Sheet
Features
- High Reliability
- Low Back Reflection
- Low Insertion Loss
Applications
- Fiber Optic Gyroscope technology
- Coherent detection of Fiber Optic Sensors
- Application fields of Fiber Optic Sensing
Frequently Asked Questions
What are the main applications of the 1310 Y-Waveguide?
The Y-Waveguide is used in Fiber Optic Gyroscope technology, coherent detection of Fiber Optic Sensors, and various fields of Fiber Optic Sensing.
What are the key features of the Y-Waveguide?
The Y-Waveguide features high reliability, low back reflection, and low insertion loss.
What operating wavelength windows does the Y-Waveguide support?
The Y-Waveguide supports multiple operating wavelength windows, including 1310 nm and 1550 nm.
Can the 1310 Y-Waveguide be customized?
Yes, the Y-Waveguide can be customized based on specific customer requirements, offering flexible solutions for wavelength selection and packaging configurations.
What are the operating and storage temperature ranges for the Y-Waveguide?
The operating temperature range is -45 to +70 ℃, and the storage temperature range is -55 to +85 ℃.
What types of packaging are available for the Y-Waveguide?
The Y-Waveguide is available in metal or ceramic shell packaging.
What is the insertion loss specification for the Y-Waveguide?
The insertion loss for the Y-Waveguide is specified to be ≤3.5 dB.
Similar Products
LN13-22CFL 1310nm Metal Lithium Niobate Integrated Optical Multi Function Chip
Shanghai Aoshi Control Technology Co.Ltd
LN15-22CFK-1550nm Ceramic Lithium Niobate Integrated Optical Multi Function Chip
Shanghai Aoshi Control Technology Co.Ltd

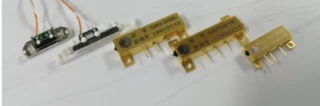

LN15-22CFL-1550nm Lithium Niobate Integrated Optical Multi Function Chip
