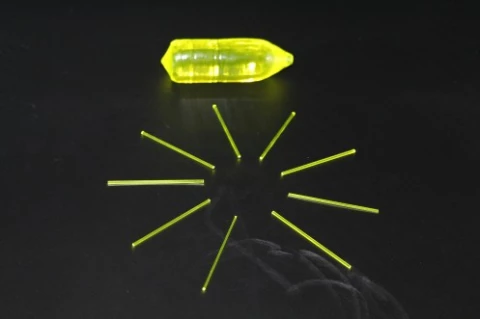

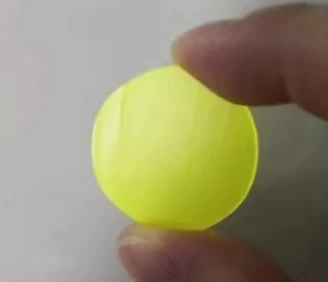

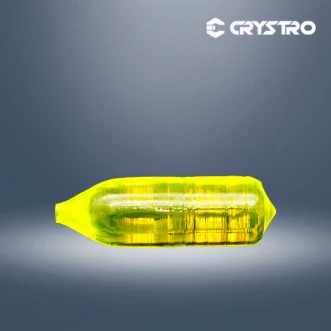

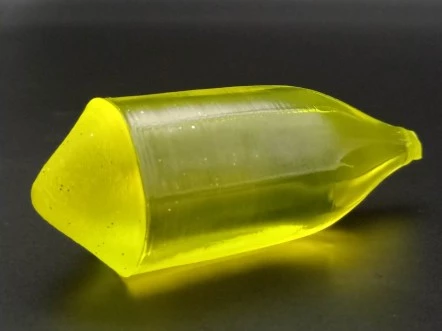

Ce:LUAG Crystal
Description
Place of Origin: Hefei, China (Mainland)
Brand Name: Crystro
Model Number: Ce:LuAG crystal
Emission peak (nm): 510
Decay time(ns): 80
Energy resolution: <8%
Hardness: 8.5
Structure: Ia3d
Symmetry: Cubic
Melting (℃): 1970℃
Property: Ce:LuAG
Chemical composition: Lu3Al5O12
Thickness: ±0.05 mm
Ce:LUAG Crystal
Specifications |
|
|---|---|
| Radiation Length: | 100 mm |
| Decay Time Constant: | 80 ns |
| Emission Peak: | 510 nm |
| Maximum Dimensions: | dia 95 mm |
| Clear Aperture: | >90% |
| Chamfer: | <0.2×45° |
| Thickness/Diameter Tolerance: | ±0.05 mm |
| Parallel: | 10'' |
| Perpendicular: | 5' |
| Surface Quality: | 10/5 |
Features
Property
Ce:LuAG
Chemical composition
Lu3Al5O12
Melting (℃)
1970℃
Symmetry
Cubic
Structure
Ia3d
Cell parameters(Å)
11.914
Hardness
8.5
Density(g/cm3)
6.73
Thermal conductivity(W/℃cm,25℃)
0.08
expanding coefficient(10-6/℃)
8.8
Refractive index(λ=1.079μm)
1.84
Applications
Cerium doped yttrium-aluminum garnet (Ce:LuAG) is a well established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, emission peaks at 510nm that well matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability.The Ce:LuAG is also a very appropriate crystal for imaging screens, LED lighting and laser lighting.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Ce:LuAG crystal is used as a scintillator and is suitable for imaging screens, LED lighting, and laser lighting.
The decay time of Ce:LuAG crystal is 80ns.
The emission peak of Ce:LuAG crystal is 510nm.
The energy resolution of Ce:LuAG crystal is less than 8%.
Ce:LuAG crystal is manufactured in Hefei, China (Mainland).
