Description
ARD Optics has all the technological possibilities to make the metallic coating on the optical surfaces by the chemical deposition method.
The coating's base meanings is a reflection from the surface where the coating is made.
At the same time, the coating could be used for brazing or for some other kinds of applications.
The coating could be made on polished and ground surfaces.
Metal Coating on Glass Surfaces
Specifications
| Coating Type: | Other |
|---|---|
| Angle Of Incidence (AOI): | Not Specified |
| Wavelength Range: | Not Specified |
| Reflection: | up to 98% |
Download Data Sheet
Features
- Metal coating
- Mirror coating
- Silvering
- Solid state laser
- Diode pumping
Applications

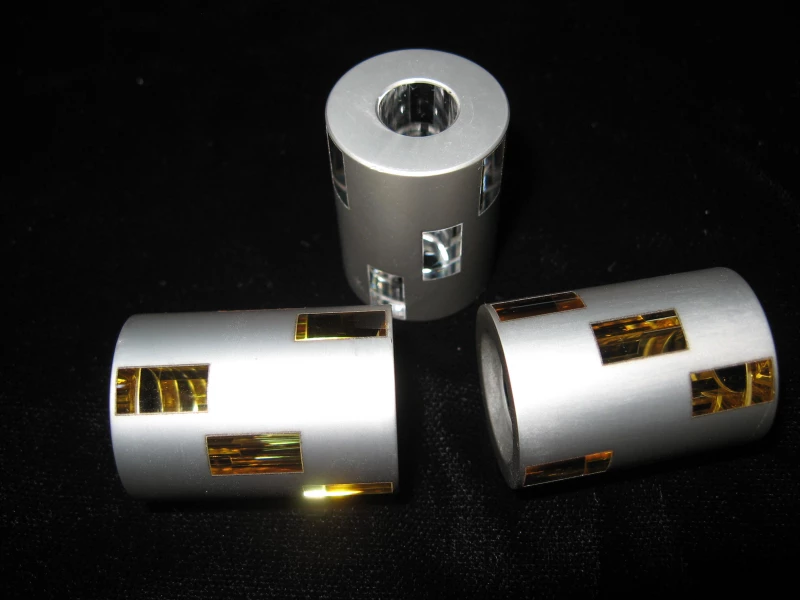

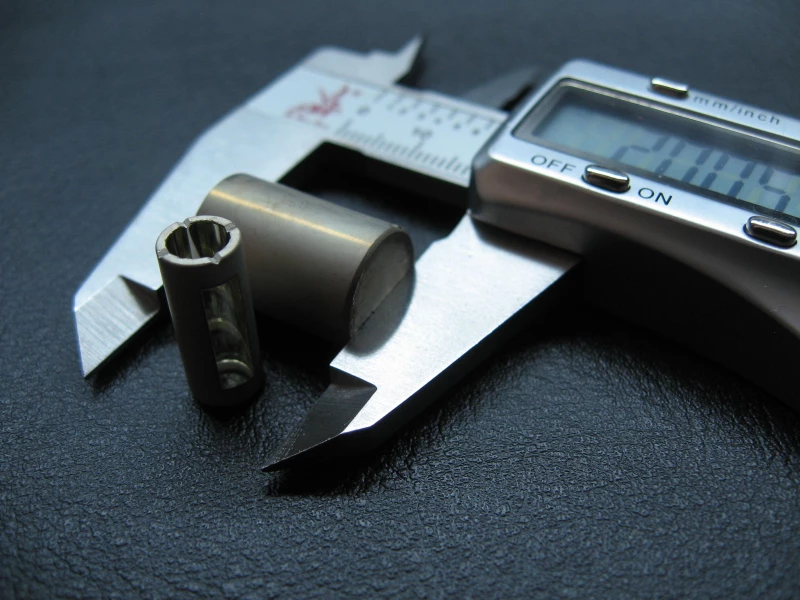

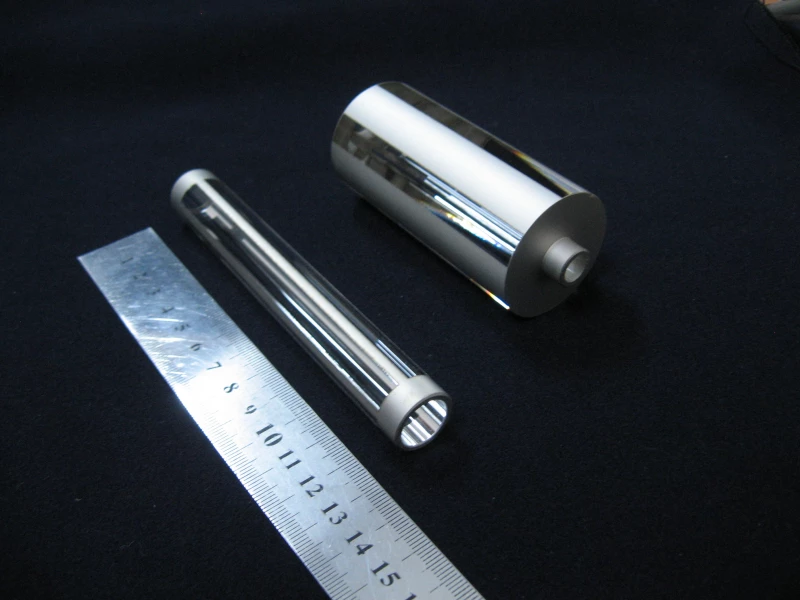

- In general, the silver coating is used in laser systems for covering the flow tubes' single or multi holes are covered by silver, which is used for the reflection.

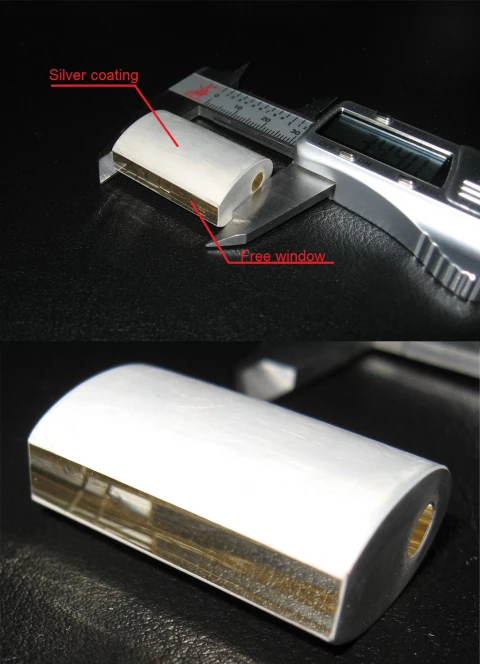

- The silvering could be done solidly or with the free windows for diode pumping according to the customer's design.
Frequently Asked Questions
What is the purpose of the metal coating on glass surfaces?
The metal coating on glass surfaces is used for reflection in laser systems and can also be used for brazing or other applications.
Can the metal coating be made on both polished and ground surfaces?
Yes, the metal coating can be made on both polished and ground surfaces.
What are some of the applications of the metal coating?
The metal coating is commonly used in laser systems to cover the flow tubes' single or multi holes for reflection. It can also be used for diode pumping.
What materials are used for manufacturing laser flow tubes?
Laser flow tubes are manufactured using materials such as samarium doped glass, cerium doped fused silica, fused silica, Pyrex glass, and Borofloat 33.
What are the tolerances for the laser flow tubes?
The laser flow tubes have tolerances such as inner diameter ranging from 2-40 mm with a tolerance of +/-0.05-0.1mm, parallelity of holes at 0.05-0.1mm, and length ranging from 10-130mm with a tolerance of +/-0.05-0.1mm.
