QBY-Series Pockels Cell Drivers Overview The QBY-series represents a cutting-edge advancement in Pockels cell drivers, utilizing GaN transistors to generate high voltage pulses with remarkable precision. These drivers are engineered to deliver high repetition rates, rapid rise and fall times, and customizable pulse widths and amplitudes. Such capabilities make them an ideal choice for applications requiring precise control and high-performance outputs. QBY provide bipolar voltage pulses (3-4 ns rise/fall) on the outputs to control the birefringence of an electro-optical crystal to change the polarization state of light passing through.

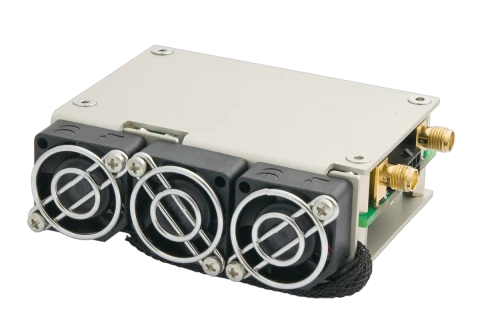

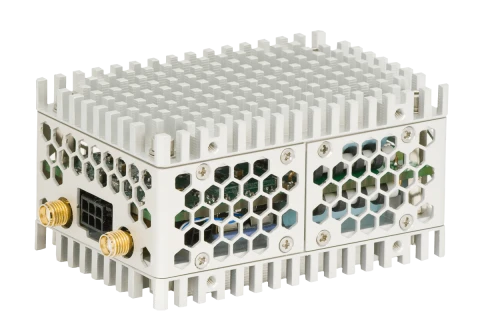

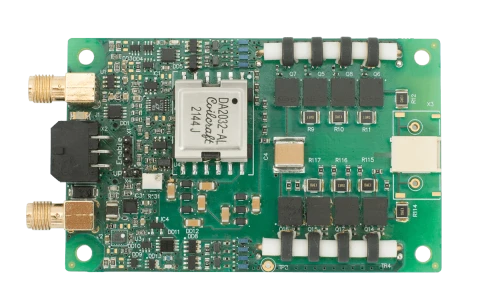

The series presently includes three distinct models: the QBY-4001, QBY-4008-P, and QBY-4010-A. Each model is tailored to meet specific cooling and performance needs. The QBY-4001 serves as the base model, offering a bare PCB design. It was designed as a very compact model with fast switch to obtain short pulses starting from 10 ns. The QBY-4008-P is an enhanced model equipped with integrated heatsinks for improved thermal management. Meanwhile, the QBY-4010-A features forced-air cooling with integrated fans, enabling it to achieve the highest repetition rates within the series. In terms of performance, the QBY-series drivers can achieve outstanding repetition rates depending on the output voltage and cooling conditions. For instance, the QBY-4010-A can reach up to 10kHz at 4kV with forced air cooling, and up to 100kHz at lower voltages. This versatility allows users to optimize the driver's performance to suit various operational environments and requirements. Overall, the QBY-series Pockels cell drivers stand out for their advanced technology and adaptability, making them a valuable asset for industries and applications demanding high-speed, high-voltage pulse generation.

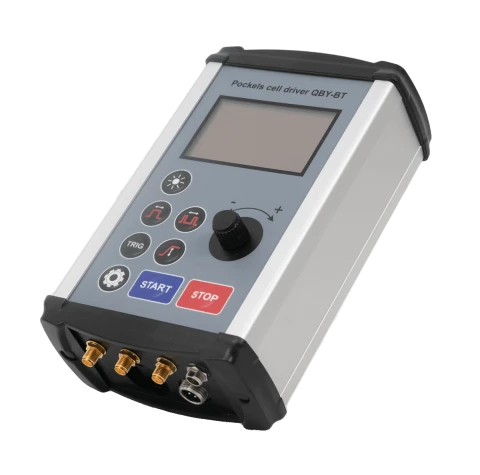

More about laboratory encased QBY-BT
3-4ns Switch, GaN Pockels Cell Drivers up to 10 kHz, QBY-Series
Specifications |
|
|---|---|
| Voltage Range: | 0 – 4 KV |
| Rep Rate Range: | Not Specified |
| Pulse Width Range: | 10 – 1000 ns |
| Optical Rise And Fall Time: | 3 ns |
| Input: | 24VDC |
| Rise And Fall Times: | 3-4ns |
| Maximum Repetition Rate: | up to 10kHz @ 4kV with forced air cooling |
| Load Capacitance: | <5pF recommended, 10pF max |
| Size (LxWxH) For QBY-4001: | 80x50x20 mm |
| Size (LxWxH) For QBY-4008-P: | 87x56x43 mm |
| Size (LxWxH) For QBY-4010-A: | 80x71x28 mm |
| Weight: | 50-250g in dependence on version |
| Jitter: | Less than 0.2 ns |
| Delay Time: | Less than 10 ns |
Features
- High Voltage Pulses: The QBY-series Pockels cell drivers produce bipolar high voltage pulses with adjustable amplitude up to 4000V.
- Adjustable Pulse Width: Pulse width is adjustable from 10ns to 1000ns, catering to diverse application needs.
- Fast Rise and Fall Times: Achieve rise and fall times of 3-4ns, depending on load capacitance and pulse amplitude.
- High Repetition Rate: Maximum repetition rate varies by model and cooling method, reaching up to 10kHz at 4kV with forced air cooling.
- Three Models Available: Choose from QBY-4001 (bare PCB), QBY-4008-P (enclosed PCB with heatsinks), and QBY-4010-A (enclosed PCB with fans) for optimal performance.
- Cooling Options: Models are equipped with different cooling methods: convective, conductive, and forced air cooling to enhance performance.
- Bench-top Version Available: The QBY-BT model includes an embedded pulse generator for convenient benchtop use.
Applications
- Laser Systems: QBY-series Pockels cell drivers are ideal for laser modulation applications, providing precise control over laser pulses with adjustable pulse width and amplitude.
- Pulse slicing, pulse picking
- Control of laser regenerative amplifiers
Frequently Asked Questions
The QBY-series Pockels cell driver is a novel device based on GaN transistors designed to produce high voltage pulses with high repetition rates, fast rise and fall times, and adjustable pulse width and amplitude.
The QBY-series includes three models: QBY-4001 (bare PCB), QBY-4008-P (enclosed PCB with heatsinks), and QBY-4010-A (enclosed PCB with fans for forced-air cooling).
The QBY-4001 can use convective or forced air cooling with an external fan, the QBY-4008-P uses conductive cooling with integrated heatsinks, and the QBY-4010-A uses forced air cooling with integrated fans.
The QBY-4010-A model can achieve a maximum repetition rate of up to 10kHz at 4kV and up to 100kHz at smaller voltages with forced air cooling.
The QBY-series drivers require an input power of 24VDC with a maximum current of 0.5A.
The pulse amplitude is adjustable up to 4000V, and the pulse width is adjustable from 10ns to 1000ns. Other specifications are available upon request.
Yes, a bench-top version, the QBY-BT, with an embedded pulse generator is available.
