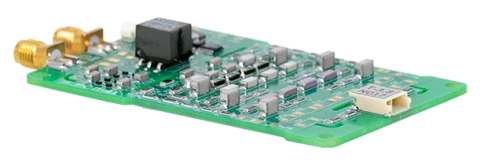

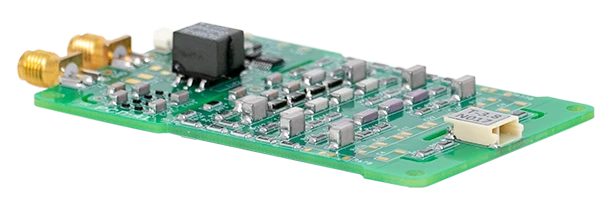

Thumbnail of 1-3 ns Fast Switch Compact Pockels Cell Driver, QBU-nano, 0.5-2 kHz photo 1

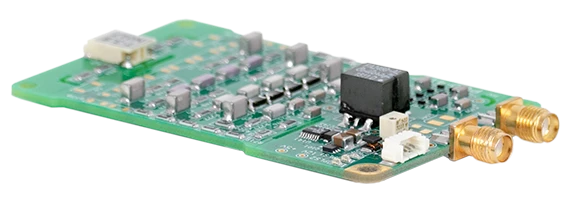

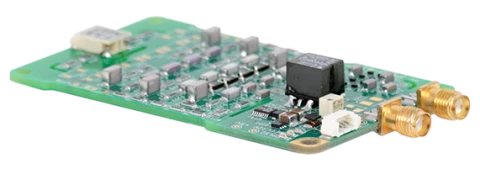

Thumbnail of 1-3 ns Fast Switch Compact Pockels Cell Driver, QBU-nano, 0.5-2 kHz photo 2

Description

The QBU-nano fast switch compact Pockels cell driver is a state-of-the-art solution designed for those who require precise control over high voltage pulses. This compact driver excels in delivering high repetition rates and features rapid rise and fall times, ensuring optimal performance for demanding applications. Its adjustable pulse duration and amplitude offer users the flexibility needed to tailor the device to specific requirements, making it a versatile choice for various implementations.

The fast switch compact Pockels cell driver is powered by a 12V DC input, allowing for seamless integration into existing systems without the need for extensive modifications.

With a compact form factor of just 80x50x20 mm and a weight of only 0.1 kg, the QBU-nano is designed for easy installation and minimal spatial footprint. Despite its small size, it packs a powerful punch with pulse amplitudes reaching up to 5800V. This capability, combined with its adjustable pulse width of up to 800ns, makes it an ideal choice for applications requiring precise and high-voltage pulse control.

The QBU-nano fast switch compact Pockels cell driver also demonstrates impressive stability and precision, with a pulse-to-pulse stability of less than 1% and minimal jitter. These characteristics ensure consistent performance, which is crucial for applications where accuracy and repeatability are paramount. Its robust construction and advanced electrical specifications make the QBU-nano Pockels cell driver a reliable and efficient solution for advanced pulse control needs.

1-3 ns Fast Switch Compact Pockels Cell Driver, QBU-nano, 0.5-2 kHz

Visit the OEM Tech Store

Specifications

Voltage Range: 1.3 – 5.8 KV
Rep Rate Range: Not Specified
Pulse Width Range: 0 – 800 ns
Optical Rise And Fall Time: 2 ns
HV Pulse Amplitude For 5800V Modification: 4400V-5800V
Weight: 0.1 kg
Size (LxWxH): 80x50x20 mm
Load Capacitance For 5800V Modification: 3 pF recommended, 5 pF max
Load Capacitance For Most Modifications: 5-7 pF recommended, 10 pF max
Pulse-to-pulse Stability: <1%
Jitter: 0.1-0.2 ns typ.
Delay: 15-20 ns typ.
Fall Time: 1-3 ns
Repetition Rate For 5800V Modification: 500 Hz max
Repetition Rate For 4800V Modification: 1 kHz max
Repetition Rate For 2000V, 2800V, 3800V Modifications: 2 kHz max
Input: 12 VDC
HV Pulse Amplitude For 4800V Modification: 3600V-4800V
HV Pulse Amplitude For 3800V Modification: 2600V-3800V
HV Pulse Amplitude For 2800V Modification: 1800V-2800V
HV Pulse Amplitude For 2000V Modification: 1300V-2000V
Input Current: 500 mA max
Input Voltage Range: 8V-16V
Maximum Repetition Rate: up to 2 kHz
Rise Time: 1-3 ns
Pulse Width: up to 800 ns adjustable
Pulse Amplitude: up to 5800 V

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Voltage Pulses: The QBU-nano fast switch compact Pockels cell driver produces unipolar high voltage pulses with adjustable amplitudes, supporting several models up to 5800V.
  • Adjustable Pulse Width: Offers adjustable pulse width up to approximately 800ns, catering to a variety of applications.
  • Fast Rise and Fall Times: Boasts rapid rise and fall times of 1-3ns, depending on load and pulse amplitude, ensuring efficient performance.
  • Repetition Rates: Capable of maximum repetition rates up to 2kHz for most modifications, ensuring high-speed operation.
  • Wide Operating Temperature Range: Designed to operate in extreme conditions with a temperature range from -40°C to +60°C.
  • Compact Design: With dimensions of 80x50x20 mm and a weight of only 0.1 kg, it is easy to integrate into various systems.
  • Stable Performance: Offers pulse-to-pulse stability of less than 1%, ensuring consistent output.
  • Versatile Input Voltage: Operates on a 12VDC input, with a range from 8V to 16V, accommodating different power supplies.
  • Low Jitter and Delay: Features typical delay times of 15-20ns and jitter of 0.1-0.2ns, providing precise control.

Applications

  • ultrafast optical beam modulation and deflection
  • control of laser regenerative amplifiers
  • pulse picking

Frequently Asked Questions

What is the QBU-nano Pockels cell driver?
The QBU-nano is a compact Pockels cell driver that produces high voltage pulses with high repetition rates, fast rise and fall times, and adjustable pulse duration and amplitude. It operates over a wide temperature range.
What input voltage does the QBU-nano fast switch compact Pockels cell driver require?
The QBU-nano requires an input voltage of +12VDC, with a range from 8V to 16V and a maximum current of 500mA.
What is the maximum pulse amplitude the QBU-nano can produce?
The QBU-nano can produce pulse amplitudes up to 5800V, depending on the model.
What is the maximum repetition rate for the QBU-nano fast switch compact Pockels cell driver?
The maximum repetition rate is 2kHz for the 2000V, 2800V, and 3800V modifications, 1kHz for the 4800V modification, and 500Hz for the 5800V modification.
What are the operating temperature limits for the QBU-nano fast switch compact Pockels cell driver?
The QBU-nano can operate in temperatures ranging from -40°C to +60°C.
How adjustable is the pulse width for the QBU-nano?
The pulse width of the QBU-nano is adjustable up to approximately 800ns.
What are the dimensions and weight of the QBU-nano fast switch compact Pockels cell driver?
The QBU-nano measures 80x50x20 mm and weighs 0.1 kg.
