Description

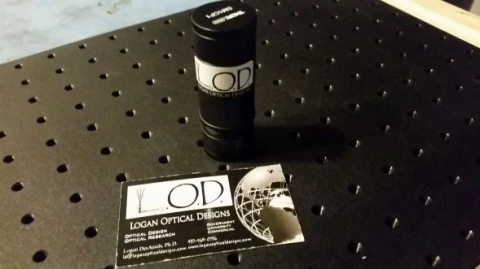

The LOD Beam Flattener is a precision optical device designed to transform standard Gaussian laser beams into uniform flat-top profiles, improving beam quality for a wide range of applications. Compatible with any visible or near-infrared (NIR) wavelength, this versatile tool enables consistent illumination intensity across the beam profile, enhancing experimental repeatability and system performance. Ideal for laser diodes, the LOD Beam Flattener ensures improved uniformity for imaging, material processing, optical testing, and other precision laser applications.
Its compact and simple design allows easy integration into existing optical setups, and users can readily observe the transformation from a Gaussian to flat-top beam. Typical demonstrations with green and blue lasers illustrate the flattener’s effectiveness in producing evenly illuminated beams suitable for both laboratory experiments and applied industrial systems. The LOD Beam Flattener provides reliable, high-quality beam shaping at a competitive price point of $1,200, offering a practical solution for researchers, engineers, and hobbyists seeking consistent beam profiles without complex optical arrangements.
LOD Beam Flattner
Specifications |
|
|---|---|
| Image Shape: | Circular |
| Clear Aperture (H): | 12.5 mm |
| Clear Aperture (W): | 12.5 mm |
| Height: | 12.5 mm |
| Width: | 12.5 mm |
| Thickness: | 1 mm |
Features
- Gaussian-to-Flat Conversion: Transforms standard laser beams into uniform flat-top profiles.
- Broad Wavelength Compatibility: Works with visible and NIR lasers.
- Improved Beam Uniformity: Ensures consistent intensity across the beam for precise applications.
- Easy Integration: Compact design fits into existing optical setups.
- Demonstrated Performance: Effective with multiple laser colors, including green and blue.
- High-Quality Beam Shaping: Enhances imaging, testing, and material processing results.
- Reliable Operation: Stable and repeatable performance for laboratory or industrial use.
Applications
- Optical Imaging: Provides uniform illumination for cameras and sensors.
- Laser Material Processing: Ensures even exposure for cutting, marking, or engraving.
- Scientific Research: Ideal for experiments requiring consistent laser intensity.
- Optical Testing & Calibration: Improves measurement accuracy in laboratory setups.
- Laser Diode Systems: Enhances performance of visible and NIR diode lasers.
Frequently Asked Questions
The function of the LOD Beam Flattener is to convert a Gaussian LASER beam into a flat top beam.
The LOD Beam Flattener can convert any visible or NIR wavelength Gaussian LASER beam.
The LOD Beam Flattener is priced at $2,000.
The LOD Beam Flattener is used for field flattening and beam shaping.
The datasheet for the LOD Beam Flattener can be found at PRODUCTSLOD Beam Flattener.
