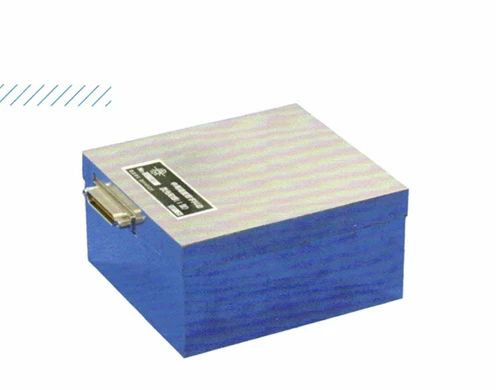

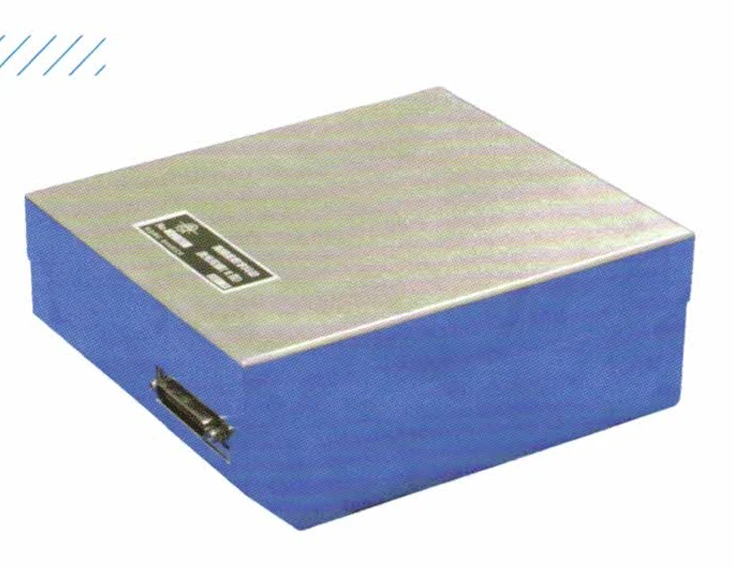

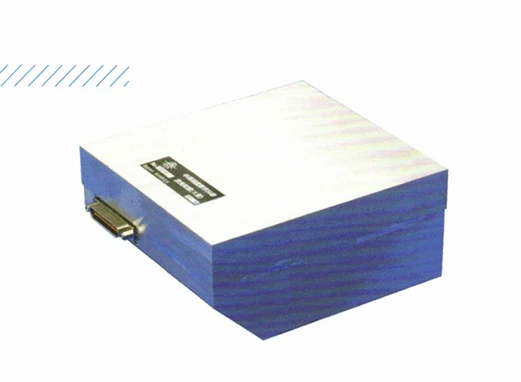

Ultra High Accuracy Laser Gyroscope (Model 120)

Shenzhen City Celebr Crystal Optoelectronic Ltd

Specifications

Bias Stability: 0.001 deg/hour
Bias Repeatability: 0.005 0.005 deg/hour
Dynamic Range: 800 deg/sec
Sensor Weight: 1.02 kg
Random Vibration: 20 – 2000 Hz
Working Temperature Range: -45 – 70 degC
Sensor Type: 149mm x 132mm x31 mm
Document icon Download Data Sheet Download icon

Features

Performance Indicators



  • Bias stability: ≤0.001'/h

  • Bias repeatability: <0.005'/h

  • Scale factor repeatability: <1ppm

  • Scale factor nonlinearity: ≤ 1ppm

  • Dynamic range: +400'/s


Physical Properties


Sensor Type



  • Size:149mm x 132 mm x 31mm

  • Weight: 1.02kg


Digital type



  • Size:169 mm x 154 mm x 59 mm

  • Weight: 3kg

Applications

Aerospace, marine, and industrial applications
