Description
The Ambient Temperature · AutoScrew.LR Optical Frame Adjuster is a high-performance piezoelectric linear motion device designed specifically for optical frame adjustment.
With its compact shape and powerful capabilities, this adjuster offers precise control and reliable performance while ensuring space-saving convenience. It is an ideal solution for applications that require accurate positioning and alignment of optical components.

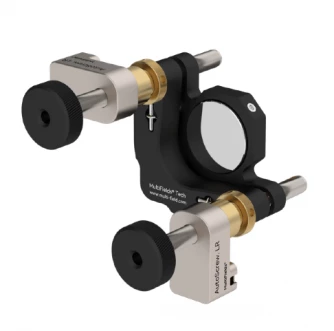

Ambient Temperature · AutoScrew.LR Optical Frame Adjuster
Specifications
| Microstep Size (default Resolution): | 0.02 um |
|---|---|
| Built-in Controller: | Yes |
| Travel Range: | 6 mm |
| Accuracy (unidirectional): | 0.01 um |
| Backlash: | Not Specified |
| Maximum Speed: | 2 mm/s |
| Minimum Speed: | Not Specified |
| Axes Of Motion: | One |
| Voltage Requirement:: | DC 24 V |
| Drive Frequency: | 2 KHz |
| Active Thrust: | 20 N |
| Holding Force: | 100 N |
Download Data Sheet
Features
- Holding force of 100 N and feeding force of 20 N for secure positioning
- Earliest pace of 20 nm for fine adjustments
- Maximum travel distance of 6 mm for versatile positioning requirements
- Self-locking at the stop position, eliminating heat generation
- Threads compatible with standard frame threads for easy integration
- Controller compatible with MultiFieldsⓇ Motion Controller - Newton Series for seamless operation and
- control
Applications
- Optical component alignment and positioning
- Microscopy and imaging systems
- Laser beam steering and scanning
- Optoelectronic device testing and characterization
- Precision metrology and inspection systems
- Optical communication systems
- Fiber optics alignment
- Research and development in photonics and optics
Frequently Asked Questions
What is the Ambient Temperature · AutoScrew.LR Optical Frame Adjuster used for?
The Ambient Temperature · AutoScrew.LR Optical Frame Adjuster is designed specifically for optical frame adjustment in applications that require accurate positioning and alignment of optical components.
What are the holding force and feeding force of the adjuster?
The adjuster has a holding force of 100 N and a feeding force of 20 N for secure positioning.
What is the maximum travel distance of the adjuster?
The adjuster has a maximum travel distance of 6 mm for versatile positioning requirements.
Is the adjuster self-locking at the stop position?
Yes, the adjuster is self-locking at the stop position, eliminating heat generation.
What controller is compatible with the adjuster?
The adjuster is compatible with the MultiFieldsⓇ Motion Controller - Newton Series for seamless operation and control.
