Description
This high load lab jack from Zolix Instruments is made of aluminum alloy with a large travel range from 110mm to 230 mm. The maximum load for this model can be up to 30 Kg, so it can be used for supporting a wide range of items.

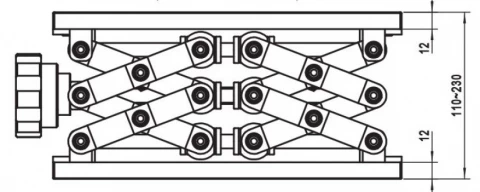

Design: This lab jack is equipped with double scissors and dual-pantograph jacks enabling stable lifting of the load capacity throughout the travel range. The 12mm thick anodized aluminum plate completes the design enabling sturdy operation at all elevations.

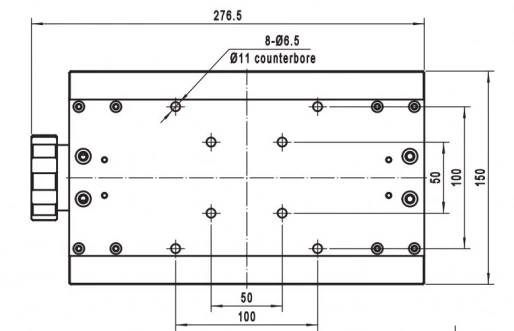

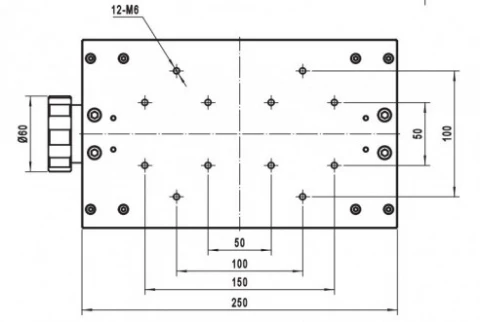

Top Plate: MJ series high load lab jacks come with a 12mm anodized aluminum top plates pre-drilled with an array of 12-M6 standard metric holes 50mm apart. centers while the bottom plate has an array of M6 holes on 25 mm centers.
MJ Series High Load Lab Jack
Specifications
| Travel Range: | 120 mm |
|---|---|
| Maximum Height: | Not Specified |
| Load Capacity: | Not Specified |
| Sensitivity: | Not Specified |
| Material: | Anodized Aluminum |
| Weight: | Not Specified |
| Load Weight: | 30 kg |
| Item Weight: | 4.5 kg |
| Height Adjustment: | 110 - 230 mm |
| Table Size: | 250 × 150 mm |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Double scissors design
- Dual-pantograph jacks
- 12mm anodized aluminum plate
- Pre-drilled 12-M6 holes

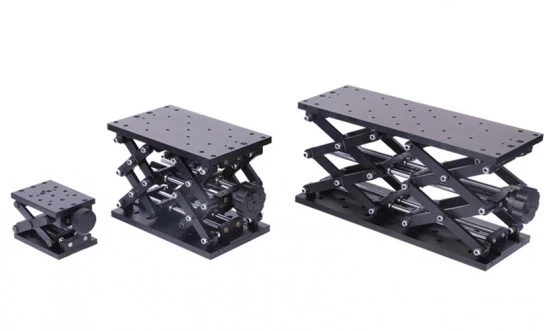

Available Models: Zolix Instruments currently offers three different models of laboratory jacks:
Model: MJ60
- Travel: 60 mm
- Height: 60-120 mm
- Table Size: 120×80 mm
- Load capacity: 10kg
- Weight: 1.1kg
Model: MJ120 (this item)
- Travel: 120 mm
- Height: 110-230 mm
- Table Size: 250x150 mm
- Load capacity: 30kg
- Weight: 4.5kg
Model: MJ240
- Travel: 240 mm
- Height: 110-350 mm
- Table Size: 400x150 mm
- Load capacity: 40kg
- Weight: 8.7kg
Applications
Ideal for supporting and lifting hotplates, glassware, baths, and other lab equipment requiring a specific elevation. Also great for positioning samples in spectroscopy experiments.
Frequently Asked Questions
What is the maximum load capacity of the MJ120 lab jack?
What is the travel range of the MJ120 lab jack?
What is the weight of the MJ120 lab jack?
What is the table size of the MJ120 lab jack?
What is the material used for the MJ120 lab jack?
Got more questions? Use the inquiry form to ask the supplier directly.
