Description

AKV series aluminum alloy high precision vertical stage features high sensitivity and high quality. Their travel range is from 6 mm to 13 mm.

This aluminum alloy high precision vertical stage offer a rigid construction that ensures wobble-free lifting throughout the entire travel range of the z-jack.

We currently offer six different models as follows:

  • Model: AKV6A-40Z | AKV6A-40C | AKV13A-60Z | AKV10A-60C | AKV13A-65Z | AKV10A-90C
  • Table Size: 40×40mm | 40×40mm | 60×60mm | 60×60mm | 65×65mm | 90×90mm
  • Travel Range: 6mm | 6mm | 13mm | 10mm | 13mm | 10mm
  • Max Height: 57mm | 60.5mm | 79.5mm |  65mm | 79.5mm | 70mm
  • Load Capacity: 2kg | 2kg | 3kg | 3kg | 3kg | 3kg

If you have any questions about this Aluminum Alloy High Precision Vertical Stage (Z-Jack) please do not hesitate to request for information.

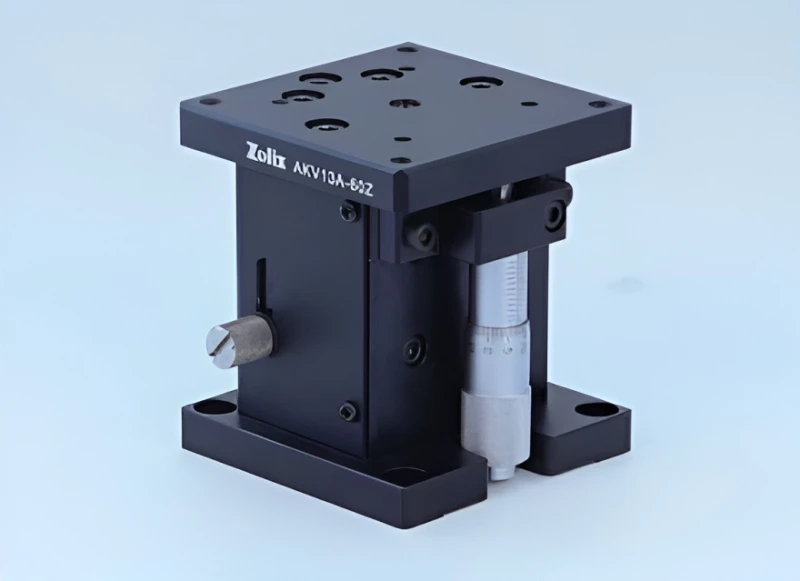

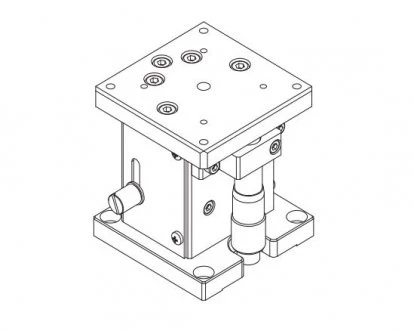

Aluminum Alloy High Precision Vertical Stage: AKV Series by Zolix Instruments

Specifications

Travel Range: 13 mm
Maximum Height: 79.5 mm
Load Capacity: 3 kg
Sensitivity: 2 um
Material: Anodized Aluminum
Weight: 0.8 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

AKV Series Aluminum Alloy High Precision Vertical Stage comes with important characteristics that makes it a super stand for numerous applications:

  • Black Anodized Aluminum Body: ensures light construction that offers stability, rigidity and longevity.
  • Six different options: We offer six different models with 6 different sizes, and ravel ranges
  • High end Actuator: Our micrometers offer precise operation rendering sub-2um precision
  • Two drive positions: drive in the horizontal and drive in the vertical.

Applications

Thanks to rigid construction, compact footprint and wobble free travel, this Aluminum Alloy High Precision Vertical Stage has found applications for many demanding applications:

  • Industrial applications
  • Sample positioning
  • Spectroscopic measurements
  • Optical alignment
  • Laser alignment
  • Crystal positioning

Frequently Asked Questions

What is the body material of this AKV series vertical stages?
The AKV series vertical stages (z-jacks) are made of black anodized aluminum alloy, that allows rigid yet light construction.
How sensitive is the vertical alignment?
All models in the AKV series offer 2um level sensitivity thanks to a high end positioning micrometer and wobble free movement along the Z-axis.
Are there mounting holes on this z-jack?
Yes, these vertical stages come predrilled with standard M3, M4 or M6 holes depending on the model. Please refer to the downloadable data sheet for detailed specifications.
Is there a lock screw on this vertical stage?
Yes, these vertical stages come with a horizontal manual lock screw that can conveniently fix the vertical position once you align and are satisfied with the position.
What is the travel range of the AKV series aluminum alloy high precision vertical stage?
The travel range of the AKV series aluminum alloy high precision vertical stage ranges from 6 mm to 13 mm.
How many different models are currently offered for the AKV series vertical stage?
We currently offer six different models for the AKV series vertical stage.
What is the load capacity of the AKV series vertical stage?
The load capacity of the AKV series vertical stage is 2kg for some models and 3kg for others.
What are the important characteristics of the AKV series vertical stage?
The AKV series vertical stage features a black anodized aluminum body for stability and longevity, six different options for size and travel range, and a high-end actuator for precise operation.
What are some applications of the AKV series vertical stage?
The AKV series vertical stage is commonly used in industrial applications, sample positioning, spectroscopic measurements, optical alignment, laser alignment, and crystal positioning.

Got more questions? Use the inquiry form to ask the supplier directly.
