Vortex Plus Tunable External Cavity Diode Lasers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
MKS l Spectra-Physics -
On FindLight:
since 2025
Description

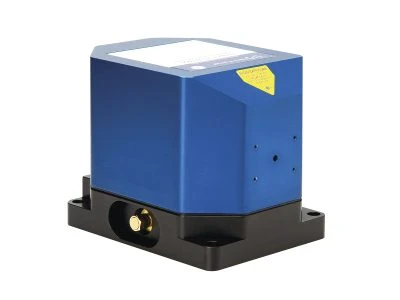

The New Focus™ tunable external cavity diode lasers deliver true continuous mode-hop-free tuning. It is our highest performance precision finely tunable external cavity diode laser. The Littman-Metcalf cavity configuration provides exceptional stability, piezo mode-hop-free tuning range and narrow linewidth. Thermal and finite element analyses led us to the Star-Flex design that provides stiff, reproducible rotational motion without any translation. The Vortex Plus includes an SMA port for direct to diode high speed current modulation. When ordering, please specify the exact center wavelength (to 10 pm) in vacuum. Part number includes complete laser system and the new TLB-6800-LN laser controller. Heads and controllers can also be sold separately.
Vortex Plus Tunable External Cavity Diode Lasers
Specifications |
|
|---|---|
| Wavelength Range: | 455 – 630 nm |
| Model: | TLB-6802-455 |
| Wavelength: | 455–457 nm |
| Mode-Hop Free Tuning Range: | >25 GHz (20 pm) |
| Free-Space Output Power: | 40 mW @ 455 nm |
| Fiber-Coupled Output Power: | N/A |
| Model: | TLB-6802 |
| Wavelength: | 459–461 nm |
| Mode-Hop Free Tuning Range: | >25 GHz (20 pm) |
| Free-Space Output Power: | 40 mW @ 461 nm |
| Fiber-Coupled Output Power: | N/A |
| Model: | TLB-6804 |
| Wavelength: | 632.5–640 nm |
| Mode-Hop Free Tuning Range: | >120 GHz (160 pm) |
| Free-Space Output Power: | 8 mW @ 638 nm |
| Fiber-Coupled Output Power: | 3 mW @ 638 nm |
| Model: | TLB-6811 |
| Wavelength: | 725–741 nm |
| Mode-Hop Free Tuning Range: | >100 GHz (180 pm) |
| Free-Space Output Power: | 20 mW @ 737 nm |
| Fiber-Coupled Output Power: | 10 mW @ 737 nm |
| Model: | TLB-6813 |
| Wavelength: | 765–781 nm |
| Mode-Hop Free Tuning Range: | >100 GHz (200 pm) |
| Free-Space Output Power: | 70 mW @ 780 nm |
| Fiber-Coupled Output Power: | 35 mW @ 780 nm |
| Model: | TLB-6814 |
| Wavelength: | 794–810 nm |
| Mode-Hop Free Tuning Range: | >100 GHz (210 pm) |
| Free-Space Output Power: | 30 mW @ 795 nm |
| Fiber-Coupled Output Power: | 15 mW @ 795 nm |
| Model: | TLB-6817 |
| Wavelength: | 838–853 nm |
| Mode-Hop Free Tuning Range: | >90 GHz (220 pm) |
Features
- Magnetic damping and Star-Flex™ actuation for highest stability
- Fiber coupled option
- True mode-hop-free tuning
- Narrow linewidth
Applications
- Quantum Physics
- Laser cooling
- Atomic clocks
- Spectroscopy
- Metrology
- Interferometry
Frequently Asked Questions
The Vortex Plus TLB-6800 is a high-performance precision finely tunable external cavity diode laser that offers true continuous mode-hop-free tuning with exceptional stability and narrow linewidth.
The Star-Flex is a unique motion actuation design used in the Vortex Plus that provides stiff, reproducible rotational motion without any translation, enhancing stability and performance.
The Vortex Plus TLB-6800 is suitable for applications such as laser cooling, atomic clocks, spectroscopy, metrology, interferometry, quantum applications, and magnetic damping.
The mode-hop-free tuning range varies by model, with ranges such as >25 GHz for the TLB-6802-455 and >120 GHz for the TLB-6804.
The free-space output power ranges from 8 mW to 70 mW depending on the model, with fiber-coupled output power ranging from 3 mW to 35 mW.
The Vortex Plus TLB-6800 is controlled using the TLB-6800-LN laser controller, which allows fine-tuning and adjustment of output power or bias current via front panel controls or USB/RS-232 interface.
The wavelength stability of the Vortex Plus TLB-6800 is 2 pm over 1 hour with a temperature variation of ±2°C.
