SDC-BT Diode Driver Overview

The SDC-BT diode driver is a sophisticated solution designed for the precise control and operation of medium-power Nd:YAG-like solid-state lasers. This family of laser diode drivers integrates a variety of components, including an embedded current source, a buffer capacitor bank, and a capacitor charger. Additionally, it features one or two TEC modules, providing robust thermal management capabilities. The SDC-BT is adept at powering and controlling a Pockels cell driver, facilitating the generation of Q-switched pulses. This capability is complemented by its ability to send adjustable output synchronization signals to other equipment, ensuring seamless integration into complex laser systems.

The design of the SDC-BT diode driver emphasizes reliability and efficiency, making it an ideal choice for demanding applications. Its wide-range input voltage capability (110-240VAC) ensures compatibility with various power sources, while the model-dependent output current and voltage options provide flexibility to meet specific operational requirements. The driver supports pulse widths typical for Nd:YAG pumping, with fast rise times that are adjustable to suit different applications. This adaptability is further enhanced by the driver's capacity to handle maximum average output power ranging from 60 to 90 watts, depending on the model.

Incorporating advanced thermal management, the SDC-BT diode driver includes high-power and low-power TEC modules. These modules ensure optimal operating temperatures, enhancing the performance and longevity of the laser system. The driver also features a user-friendly interface with a 5-inch touchscreen display, facilitating easy operation and monitoring. With built-in protections against overheating, voltage irregularities, and other potential issues, the SDC-BT diode driver is engineered for safe and reliable operation in a variety of environments.

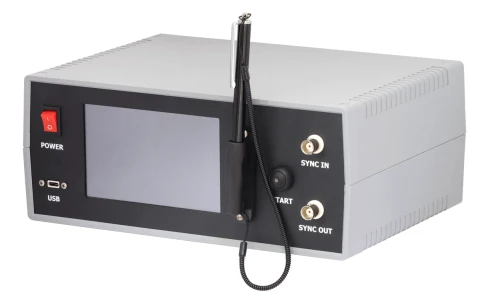

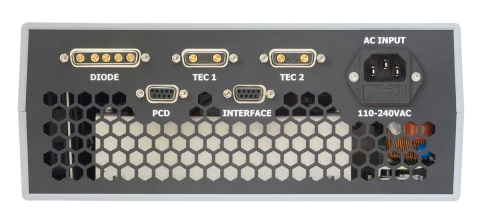

SDC-BT Laser Diode Driver for Nd:YAG Solid-State Lasers 100 W

Specifications

Drive Regime: Pulsed
Output Current (max): 400 A
Output Voltage (max): 400 V
Buffer Voltage (max): 450 V
Max Output Average Power: 100 W
Maximum Output Current: Up to 400A
Maximum Buffer Voltage: Up to 450V
Maximum Average Output Power: 100W
Pulse Repetition Rate: Adjustable up to 100Hz at small currents & voltages
Pulse Width: 50-300us Adjustable
Rise Time: <20-30us
TEC1 Power: 200W max.
TEC1 Voltage: Up to 20V
TEC1 Current: Up to 10A
Input Voltage: 110-240VAC
Peak Power: 10-20kW range
Current Consumption: <5A @ 110VAC
Feedback Loop: 10kOhm NTC
TEC2 Power: 50W max.
TEC2 Voltage: Up to 20V
TEC2 Current: Up to 5A

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide-Range Input: Compatible with 110-240VAC input, accommodating various power sources.
  • High Output Current: Models available with output current up to 400A, suitable for diverse applications.
  • Variable Diode Voltage: Supports diode voltage up to 400V, adaptable to specific needs.
  • Adjustable Pulse Widths: Typical pulse widths for Nd:YAG pumping range from 50-300ยตs, with fast rise times of 20-30ยตs.
  • Maximum Average Output Power: Delivers 100W, depending on the model.
  • Integrated TEC Modules: Includes one high-power TEC (10A/20V/200W max) and one low-power TEC (5A/20V/50W max) for efficient thermal management.
  • Pockels Cell Driver Control: Capable of controlling an external Pockels cell driver for Q-switched pulse generation.
  • Synchronization Capabilities: Provides adjustable output synchronization signals for seamless integration with other equipment.
  • User-Friendly Interface: Features a 5โ€ touchscreen display for easy operation and monitoring.
  • Comprehensive Protections: Includes door-interlock connection, overheating protection, and safeguards against buffer voltage anomalies.
  • Efficient Cooling: Equipped with forced-air cooling and built-in fans to maintain optimal operating temperatures.
  • Versatile Interfaces: Offers USB and RS-485 connectivity, with RS-232 available on request.

Applications

  • Laser Pumping: Designed for pumping medium-power Nd:YAG-like solid-state lasers.
  • Current Source: Embedded current source for efficient power delivery.
  • Capacitor Bank: Includes a buffer capacitor bank for stable operation.
  • Capacitor Charger: Integrated capacitor charger for optimal performance.
  • TEC Modules: Equipped with one or two TEC modules for temperature control.
  • Pockels Cell Driver Control: Capable of powering and controlling an external Pockels cell driver for Q-switched pulse generation.
  • Synchronization Signals: Sends adjustable output synchronization signals to other equipment.
  • Wide Input Range: Operates on a wide-range 110-240VAC input.
  • High Output Current: Models available with output current up to 400A.
  • High Diode Voltage: Models available with diode voltage up to 400V.
  • Adjustable Pulse Widths: Pulse widths typical for Nd:YAG pumping (50-300us), with fast rise time (20-30us) and adjustability.
  • High Average Output Power: Maximum average output power ranges from 100W, depending on the model.
  • High-Power TEC: Onboard high-power TEC with 10A/20V/200W max capacity.
  • Low-Power TEC: Onboard low-power TEC with 5A/20V/50W max capacity.
  • External Pockels Cell Driver Control: Control of an external Pockels cell driver with synchronization features.

Frequently Asked Questions

What is the SDC-BT diode driver used for?
The SDC-BT diode driver is designed for pumping medium-power Nd:YAG-like solid-state lasers and is capable of powering and controlling a Pockels cell driver for generating Q-switched pulses.
What are the input voltage requirements for the SDC-BT diode driver?
The SDC-BT diode driver requires an input voltage of 110-240VAC, 50/60Hz, 1 phase.
What is the maximum output current and voltage of the SDC-BT diode driver?
The maximum output current is model dependent and can be user selectable up to 400A, while the maximum output voltage is also model dependent and can be user selectable up to 400V.
What are the pulse width and repetition rate capabilities of the SDC-BT diode driver?
The pulse width is adjustable in the 50... 300us by default. The pulse repetition rate is adjustable up to 100Hz at small currents and voltages
What are the TEC module specifications on the SDC-BT diode driver?
The SDC-BT diode driver includes one high-power TEC module with a maximum current of 10A, voltage of 20V, and power of 200W, and one low-power TEC module with a maximum current of 5A, voltage of 20V, and power of 50W.
What kind of user interface does the SDC-BT diode driver have?
The SDC-BT diode driver features a 5-inch display with a touchscreen interface.
What protections are included in the SDC-BT diode driver?
The SDC-BT diode driver includes protections such as door-interlock connection, overheating protection, buffer voltage too low or too high, and TEC1 and TEC2 out of range protections.
