Description

The SDC-4U diode driver is an advanced solution designed for the precise and efficient operation of high-power Nd:YAG-like solid-state lasers. This family of laser diode drivers integrates a robust current source, a capacitor bank, and a capacitor charger, making it a comprehensive choice for laser pumping applications. Its capability to power and control a Pockels cell driver for generating Q-switched pulses further enhances its versatility. The SDC-4U also offers the ability to send output synchronization signals to other equipment, either in sync with or shifted relative to the TTL pulse applied to the Pockels cell driver.

Designed with flexibility in mind, the SDC-4U diode driver accommodates a wide range of input voltages from 110-240VAC, ensuring compatibility with various power sources. Its high compliance voltage, which can reach up to 480V depending on the model, and a maximum output current of up to 400A, make it suitable for demanding applications. The driver supports high average power outputs of up to 1500W, with pulse widths typical for Nd:YAG pumping ranging from 50 to 300 microseconds. Fast rise and fall times, along with pulse repetition rates of up to 50Hz, ensure efficient and reliable performance.

The SDC-4U is engineered for both internal and external synchronization modes, providing seamless integration with external Pockels cell drivers. Customization options, including multiple outputs, are available to meet specific application requirements. Safety and protection features are integral to the design, safeguarding against overcurrent, overheating, incorrect buffer voltage, and excessive synchronization pulse frequencies. The unit is equipped with a door-interlock connection and quick discharge resistors to enhance operational safety.

For ease of use, the SDC-4U features a user-friendly interface with a 10-inch touchscreen display, complemented by RS-232 and RS-485 machine interfaces for versatile connectivity. Forced-air cooling with built-in fans ensures optimal thermal management, maintaining performance within the operating temperature range of +10 to +40 °C. The SDC-4U diode driver is a reliable and adaptable choice for high-power laser applications, offering precision, safety, and customization to meet diverse operational needs.

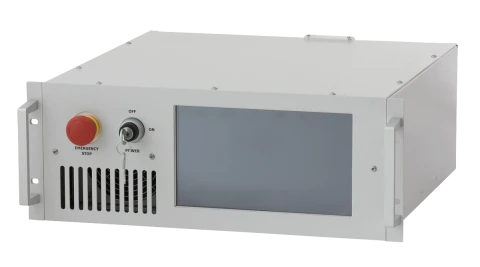

1500W SDC-4U Laser Diode Driver for High-Power Nd:YAG Lasers

Specifications

Drive Regime: Pulsed
Output Current (max): 400 A
Output Voltage (max): 480 V
Buffer Voltage (max): 500 V
Max Output Average Power: 1500 W
Input Voltage: 110-240VAC, 50/60Hz, 1ph
Pulse Width Range: 50-300us
Pulse Repetition Rate: Up to 50Hz
Maximum Average Output Power: 1500W
Rise Time: <20-30us
Integrated Capacitance: 5mF to 20mF

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide-range Input: Supports 110-240VAC input, accommodating various power sources.
  • High Compliance Voltage: Capable of delivering up to 480V, depending on the model.
  • High Output Current: Provides up to 400A, model dependent.
  • High Average Power: Delivers up to 1500W, suitable for demanding applications.
  • Pulse Flexibility: Pulse widths typical for Nd:YAG pumping (50-300µs), with fast rise and fall times (tens of microseconds) and pulse repetition rates up to 50Hz or more.
  • Synchronization Modes: Offers both internal and external synchronization capabilities.
  • Pockels Cell Driver Control: Can control an external Pockels cell driver, purchased separately.
  • Customizable Outputs: Multiple outputs and other customizations available upon request.
  • Protections and Safety: Includes protections from overcurrent, overheating, incorrect buffer voltage, and excessive synchronization pulse frequency, along with a door-interlock connection and quick discharge resistors.
  • Cooling System: Equipped with forced-air cooling using built-in fans.
  • User Interface: Features a 10” display with touchscreen for easy operation.
  • Machine Interface: Includes RS-232 / RS-485 interfaces for integration with other systems.

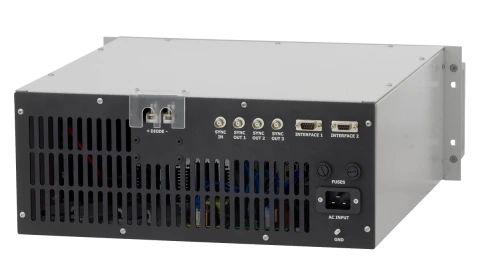

  • Synchronization Ports: Provides 1 synchronization input and 3 synchronization outputs.
  • Environmental Operating Range: Designed to operate within a temperature range of +10 to +40 °C.

Applications

  • Pumping of high-power Nd:YAG and Nd:YAG-like solid-state lasers
  • Q-switched laser systems using Pockels cell drivers
  • Industrial pulsed solid-state lasers for materials processing
  • Scientific and research lasers requiring precise pulse control
  • Medical and cosmetic laser systems based on solid-state architectures
  • OEM laser platforms requiring customizable, synchronized diode pumping
  • High-energy laser systems needing high peak current and fast pulse shaping

Frequently Asked Questions

What is the SDC-4U diode driver used for?
The SDC-4U diode driver is designed for pumping high-power Nd:YAG-like solid-state lasers and can also power and control a Pockels cell driver for generating Q-switched pulses.
What are the main features of the SDC-4U diode driver?
The main features include a wide-range 110-240VAC input, high compliance voltage up to 480V, high output current up to 400A, high average power up to 1500W, adjustable pulse widths and repetition rates, internal and external synchronization modes, and control of an external Pockels cell driver.
What are the electrical specifications of the SDC-4U diode driver?
The SDC-4U operates in pulsed mode with a maximum buffer voltage and output current that are model dependent, adjustable output current and buffer voltage, pulse width adjustable from 50-300us, and a maximum average output power of 1500W.
What safety features does the SDC-4U diode driver include?
The SDC-4U includes protections from overcurrent, overheating, incorrect buffer voltage, too high frequency of synchronization pulses, a door-interlock connection, and quick discharge resistors.
What are the cooling and interface options for the SDC-4U diode driver?
The SDC-4U uses forced-air cooling with built-in fans and features a 10” display with touchscreen, RS-232 / RS-485 machine interface, and synchronization inputs and outputs.
What is the operating temperature range for the SDC-4U diode driver?
The operating temperature range for the SDC-4U diode driver is +10 to +40 °C.

Got more questions? Use the inquiry form to ask the supplier directly.
