TEC-8A-24V-PID-HC-RS232 Programmable Temperature Controller -100 to +100°C
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2021
Description
The TEC-8A-24V-PID-HC is a state-of-the-art digital temperature controller designed to provide precise thermal management solutions. This advanced controller is engineered to seamlessly switch between heating and cooling modes without the need for manual jumper adjustments, offering unparalleled convenience and efficiency. Available in both Basic and Advanced program versions, the TEC-8A-24V-PID-HC caters to a wide range of applications, ensuring optimal performance through customizable parameters using UART communication. Incorporating an open collector output, the TEC-8A-24V-PID-HC serves as a versatile signal interface for other devices, alerting users when the measured temperature deviates from the predefined Tmin/Tmax range. This feature is complemented by a warning LED that provides a visual indication of temperature anomalies. Additionally, the controller is equipped with LEDs that clearly display heating or cooling activity, enhancing user interaction and monitoring capabilities.

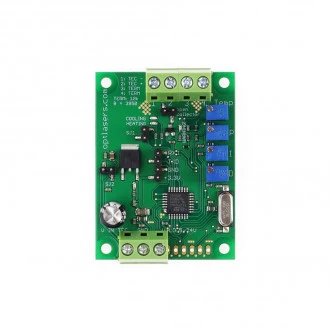

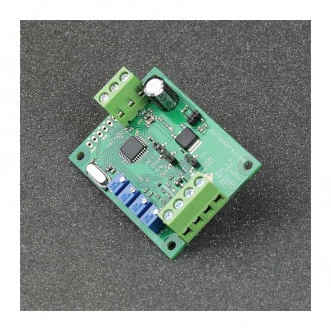

The compact design of the PCB, complete with mounting holes, ensures easy integration into various systems. The TEC-8A-24V-PID-HC is designed for precision and adaptability, featuring the ability to read temperature setpoints, actual temperature, and PID parameter values via UART. For accurate temperature readings, it utilizes a thermistor with a BETA value of 3950 for both Basic and Advanced versions, while the Advanced ±100°C version requires a P0K1.202.3FW.B.007 thermistor. This controller is particularly suited for use with 12V thermocouples, such as Peltier modules, but is compatible with any module operating within a 5 to 24 V supply voltage range. With its user-friendly design, the TEC-8A-24V-PID-HC allows for easy adjustment of temperature setpoints and PID controller parameters using four trimmers.
Operating in PWM mode, it can manage currents up to 8A, ensuring robust performance across various applications. The default temperature setpoint is conveniently set to 25 degrees Celsius, but the controller's flexibility allows it to be tailored to specific system requirements. By fine-tuning the PID parameters, users can achieve exceptional temperature stability, maintaining desired conditions with an accuracy better than ±0.05°C. The controller operates on a TTL 3.3V standard, making it a reliable choice for precise thermal management.
TEC-8A-24V-PID-HC-RS232 Programmable Temperature Controller -100 to +100°C
Specifications |
|
|---|---|
| Temperature Range: | 1 – 100 C |
| Type: | Other |
| Max. TEC Current: | 8 A |
| Temperature Setpoint Range: | -100°C to +100°C |
| Temperature Stability: | ±0.05 °C |
| Temperature Sensor Type: | P0K1.202.3FW.B.007 |
| Capability For Cooling Or Heating: | Yes |
Features
- Versatile Temperature Control: The TEC-8A-24V-PID-HC is an advanced digital temperature controller capable of both heating and cooling without the need for jumper changes.
- Dual Program Versions: Available in Basic and Advanced versions, offering flexibility in setting various parameters using UART.
- Open Collector Output: Features an open collector output to signal other devices when the temperature is out of the Tmin/Tmax range, complemented by a warning LED.

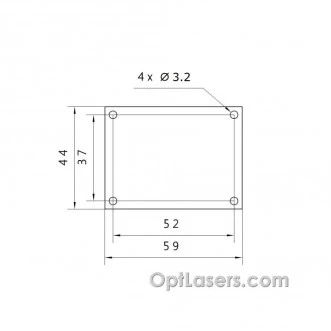

- Compact Design: Smaller PCB dimensions with added mounting holes for easy installation.
- Temperature Monitoring: Use UART to read temperature setpoints, actual temperature, and PID parameter values accurately.
- Thermistor Compatibility: Supports a standard 10k NTC B=3950 thermistor for basic and advanced versions, and a P0K1.202.3FW.B.007 thermistor for the advanced ±100°C version.
- Wide Voltage Range: Compatible with thermocouples (Peltier modules) operating within a 5 to 24 V supply voltage range.
- Adjustable PID Parameters: Four trimmers allow for setting the temperature setpoint and PID controller parameters, operating in PWM mode with up to 8A current control.
- High Precision: Capable of maintaining desired temperatures with an accuracy better than ±0.05°C, adaptable to various systems.
- TTL 3.3V Standard: Operates in the TTL 3.3V standard, ensuring compatibility with a wide range of devices.
Applications
- Optical Communication Systems: Ensures stable current control for semiconductor laser diodes in high-speed fiber optic transmission.
- Laser Diode Testing and Characterization: Provides precise modulation and protection, making it ideal for evaluating laser diode performance.
- Medical and Biomedical Devices: Supports reliable laser operation in imaging, diagnostic, and therapeutic instruments.
- Industrial Laser Equipment: Powers diodes used in cutting, marking, engraving, and material processing systems.
- Spectroscopy and Metrology: Enables stable excitation sources for Raman, fluorescence, and absorption spectroscopy setups.
- Scientific Research: Used in laboratory experiments requiring accurate modulation and thermal protection of laser diodes.
- OEM Integration: Compact and versatile design allows seamless integration into custom laser-based systems and instruments.
Frequently Asked Questions
The TEC-8A-24V-PID-HC-RS232 Programmable Temperature Controller can control temperatures in the range of -100 to 100 degrees Celsius.
The TEC-8A-24V-PID-HC-RS232 Programmable Temperature Controller has a +/-1 degree Celsius stabilization accuracy.
Yes, the TEC-8A-24V-PID-HC-RS232 Programmable Temperature Controller can both heat and cool without changing any jumpers.
This controller uses an RTD temperature sensor, specifically the P0K1.202.3FW.B.007 sensor.
The TEC-8A-24V-PID-HC-RS232 Programmable Temperature Controller can control currents of up to 8 A.
