Description

The ScanMaster Controller, meticulously engineered by Cambridge Technology and proudly developed by Novanta Corporation, represents the pinnacle of precision and performance in laser control and scanning systems. This sophisticated controller is meticulously designed to optimize laser control and scanning performance across a spectrum of applications, offering seamless integration with both hardware and software components within laser-based systems.

At the heart of the ScanMaster Controller lies a suite of proprietary algorithms and predictive controls, meticulously crafted to elevate scanning performance to unprecedented levels. By harnessing advanced beam steering technology and intelligent subsystems, the ScanMaster Controller delivers unparalleled precision and performance, tailored precisely to the demanding requirements of modern industrial applications.

With a focus on simplicity and versatility, the ScanMaster Controller streamlines the integration process, offering plug-and-play compatibility with a wide array of laser adaptors. Its compact design belies its remarkable capabilities, offering unmatched positioning accuracy enabled by the industry's highest 24-bit GSBus command resolution. This precision is further enhanced by the proprietary ScanPack algorithm, which ensures uniform laser power density and maximizes throughput for enhanced productivity.

The ScanMaster Controller's adaptive wobble trajectory capability empowers users to optimize laser processing with unparalleled flexibility, while its object-oriented ScanMaster API facilitates seamless system integration and simplifies job creation. Moreover, the controller's standalone operation capabilities, boasting a >15M vector commands buffer and expansive 3.5GB on-board memory (expandable to 256GB), ensure uninterrupted operation even in the most demanding environments.

From additive manufacturing to via-hole drilling and high-speed converting, the ScanMaster Controller redefines the boundaries of laser-based industrial applications. Its unparalleled system throughput, resolution, and accuracy pave the way for groundbreaking advancements in precision manufacturing, offering a pathway to unparalleled productivity and efficiency.

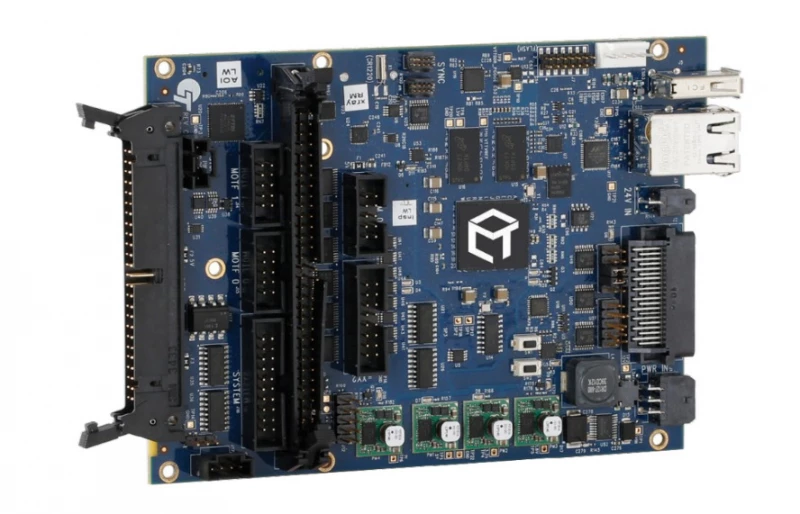

Novanta ScanMaster Controller

Specifications

Function: Laser Controllers
Input Voltage: 240 V
Max Input Current: Not Specified
Accessories: Software
Compatible Products: 2-Axis and 3-Axis configurations
Max Number Of Scan Heads: Two 2-Axis or two 3-Axis scan heads
Control Scheme: Traditional or ScanPack (LightningTM scan head only) mode
Safety: 2x Interlock inputs
Standalone Operation: 3.5GB On-board Micro SD card for stand-alone jobs
Power Supply: 15V to 48V Single supply/Separate 24V input for optical isolation circuits (optional)
Communication Protocol: 16-bit XY2-100 with standard status codes/24-Bit GSBus with real time status and signal monitoring (Lightning scan head only)
Communication: 100/1000 BaseT Ethernet 2x RS-232 serial interface3

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Simplified laser integration with plug-and-play laser adaptors
  • Unmatched positioning accuracy enabled by the industry’s highest 24-bit GSBus command resolution
  • Uniform laser power density and higher throughput empowered by the proprietary
  • ScanPack algorithm
  • Optimized laser processing with adaptive wobble trajectory capability
  • Flexible system integration and easy job creation driven by powerful object-oriented
  • ScanMaster API
  • Standalone operation with >15M vector commands buffer and 3.5GB on-board memory for job storage, expandable to 256GB

Applications

  • Additive Manufacturing
  • Via-Hole Drilling
  • Converting

Frequently Asked Questions

What is the ScanMaster Controller?
The ScanMaster Controller, developed by Cambridge Technology and Novanta Corporation, is a cutting-edge controller designed for precise laser control and scanning in various industrial applications.
How does the ScanMaster Controller optimize laser control and scanning?
The ScanMaster Controller utilizes proprietary algorithms and predictive controls to enhance scanning performance, ensuring unparalleled precision and efficiency in laser-based systems.
What are the key features of the ScanMaster Controller?
Key features include plug-and-play compatibility, high resolution GSBus command, ScanPack algorithm for uniform power density, adaptive wobble trajectory, and an expansive onboard memory.
How does the ScanMaster Controller facilitate system integration?
The ScanMaster Controller offers seamless integration with hardware and software components, simplifying the setup process and enabling users to create complex scanning jobs with ease.
In what industrial applications can the ScanMaster Controller be utilized?
The ScanMaster Controller finds applications in additive manufacturing, via-hole drilling, high-speed converting, and other precision manufacturing processes, where it enhances productivity and efficiency.

Got more questions? Use the inquiry form to ask the supplier directly.
