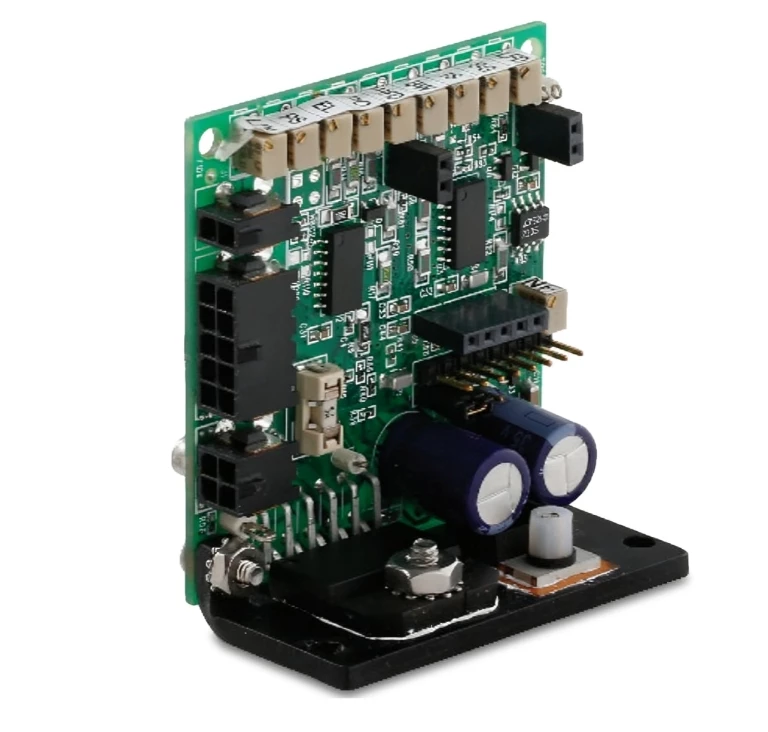

Analog Servo Drivers 671 Series

Specifications

Function: Drives
Input Voltage: 20 V
Max Input Current: 10 A
Accessories: Enclosure, Extra cables, Other (see Data Sheet)
Number Of Axes: Single
Output Stage: Differential
Position Input Range: +/-10 volts, maximum
Position Offset Range: +/-5% of Input Range, typical
Digital Position Input Range: 216 dac counts
Non Linearity Of 16-Bit Digital Input: 0.006% of full scale, maximum
Position Output Scale Factor: 0.5 volt/degree
Error Output Scale Factor: 0.5 volt/degree
Velocity Output Scale Factor: Analog output (scaled by position differentiator gain)
Fault Output: Open collector: 1K ohm output impedance (pulls down to -15V), with 10mA sink capability
Temperature Stability Of Electronics: 20 ppm per °C
Power Supply Requirements: +/-15 to +/-28VDC configurations available
Operating Temperature Range: 0-50 °C
Dimensions: 10.16 x 6.68 x 2.69 cm
Document icon Download Data Sheet Download icon

Features


  • Stability and high-bandwidth control for maximum throughput

  • Compact size for easy integration within complex systems

  • On-board protection circuitry ensures reliability during operation

  • Convenient outputs for galvanometer position, error, and velocity signals

  • Fully-optimized performance with Cambridge Technology scanning products

Applications


  • High-precision welding and cutting applications

  • Integrated scanning systems requiring accuracy and power

  • Laser-based diagnostic and analytical instruments

  • Micromachining and fine material processing systems
