Description

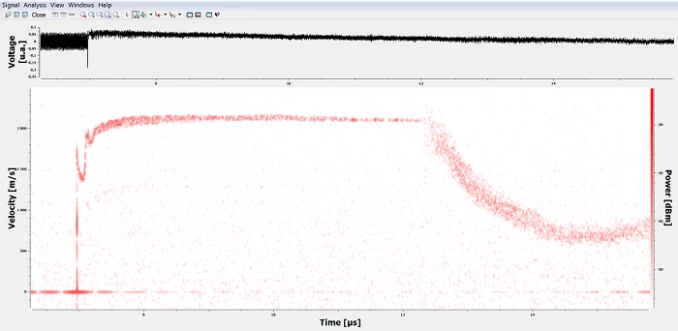

IDIL Fibres Optiques developed the first industrial Photonic Doppler Velocimeter for shocks and detonic applications. This technology allows to measure unique or multiple speeds, in the range of 0 to 20 km/s with an excellent temporal resolution. A dedicated software, based on a Fourier Transform algorithm, allows a rapid visualization of the speed fields. With a 5U height, the compact and modular system allows the user to build its PDV system from 1 to 4 measurement channels.

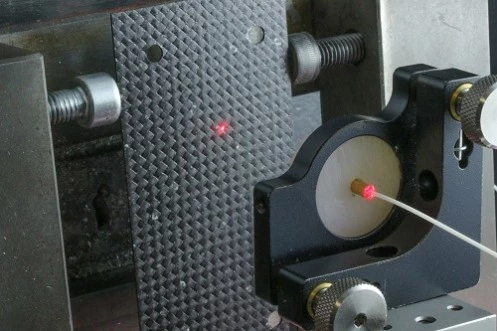

This new system integrates some improvement such as: low velocity measurement option with a fixed shift frequency, red alignment laser directly integrated on each output, all parameters adjustable on touchscreen…

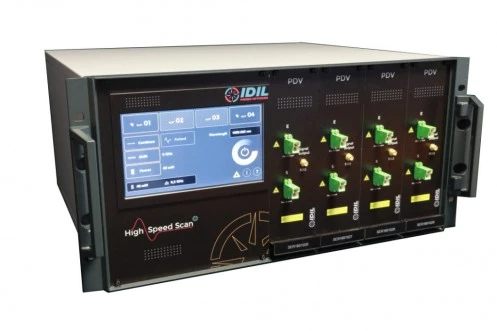

Compact Photonic Doppler Velocimeter
Specifications
| Displacement Interferometer: | High dynamics (>27 dB) |
|---|---|
| Eye Safety: | (1.55 μm) all fibered design μm |
| Minimum Reflectance Required: | -60 dB dB |
| Speed Measurement: | 0 to 20 km/s km/s |
| High Sensitivity: | >50 dB dB |
| Speed Uncertainty: | Δt Δv = 150 ns.m/s ns.m/s |
| Measurement Channel: | Up to 4 measurement channels |
| Ethernet Interface: | (function of the width of the Fourier window analysis) |
| Speed Uncertainty: | +/- 3 m/s for 50 ns m/s |
| Speed Uncertainty: | +/- 0.5 m/s for 300 ns m/s |
| Time Uncertainty: | 200 ps on the raw signal, 5 ns on velocity after processing |
| Continuous Or Triggered Mode: | Low heat deposition on sample |
Download Data Sheet
Features
- Non-contact laser measurement
- Compact
- Controlled by 7” touchscreen
- Modular and scalable (1 to 4 channels)
- Attractive initial cost for one channel system
- Easy use and installation
- Frequency up-shifting
- Continue or pulse operation
- Fibered VISAR option
Applications
- Shock physics
- Solid materials
- High explosives
- Gun
- Particle ejection
- Plasma..
Frequently Asked Questions
What is a Photonic Doppler Velocimeter?
A Photonic Doppler Velocimeter is a laser instrument used to measure speed and velocity of high-speed phenomena.
What is the range of speed that can be measured by the Compact Photonic Doppler Velocimeter?
The Compact Photonic Doppler Velocimeter can measure speeds in the range of 0 to 20 km/s.
What is the resolution of the Compact Photonic Doppler Velocimeter?
The Compact Photonic Doppler Velocimeter has an excellent temporal resolution.
How many measurement channels can the Compact Photonic Doppler Velocimeter support?
The Compact Photonic Doppler Velocimeter is modular and scalable, and can support from 1 to 4 measurement channels.
What are some applications of the Compact Photonic Doppler Velocimeter?
The Compact Photonic Doppler Velocimeter can be used in shock physics, solid materials, high explosives, gun, particle ejection, and plasma applications.
