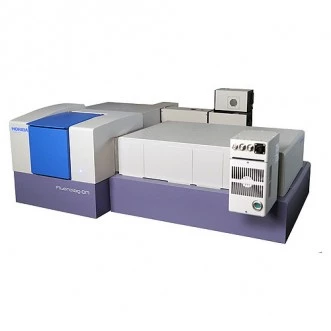

Fluorolog-QM Modular Research Fluorometer for Lifetime and Steady State Measurements

Specifications

Excitation Source: Laser, Incoherent
Grating (Excitation): 1200 groove/mm
Blaze (Excitation Grating): 300 nm
Grating (Emission): 1200 groove/mm
Blaze (Emission Grating): 400 nm
Bandpass: 185 – 900 nm
Detection: Custom
Document icon Download Data Sheet Download icon

Features

  • All reflective optics for perfect performance at all wavelengths
  • Highest guaranteed sensitivity (more than double that of the Fluorolog-3)
  • Excellent stray light rejection with extra-large, coma corrected, 350 mm single, or 700 mm double additive monochromators
  • New software for all steady state and lifetimes experiments, with many new features
  • Extended wavelength range from Deep UV to NIR
  • Up to four light source types, and six detectors, can all be connected at once, under computer control, for ultimate lab versatility
  • World class, plug and play, TCSPC lifetime enhancements, at speeds up to 100 MHz
  • NIR steady state and phosphorescence lifetime detection to 5,500 nm
  • Deep UV excitation down to 180 nm
