Description

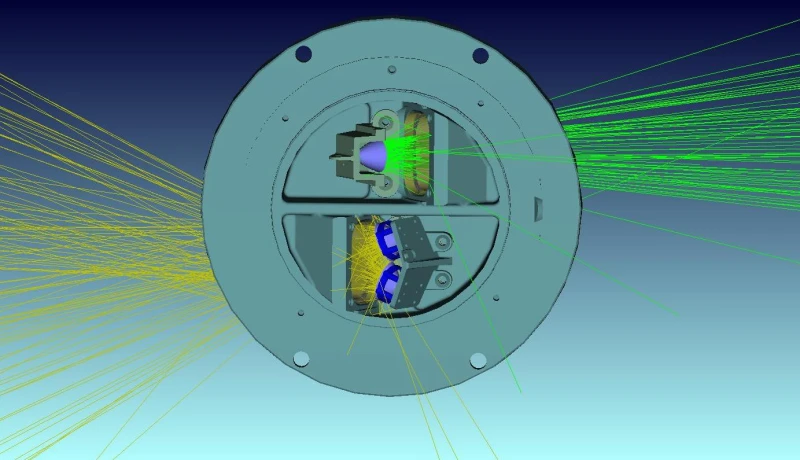

Logan Optical Designs, LLC is a leader in the field of optical design and analysis, boasting nearly 30 years of experience. Specializing in both Department of Defense and private sector projects, Logan Optical Designs (LOD) excels in creating solutions ranging from simple single-element designs to complex multi-spectral imaging systems. The company utilizes advanced tools such as Zemax optical design software for geometrical ray analysis and physical optics propagation, as well as AGI32 Photometric Toolbox for HID distribution design and evaluation. Additionally, LOD employs Mathcad, Matlab, and other software packages to enhance their design and analysis capabilities.
LOD is committed to developing optical systems that meet specific client requirements, whether through existing products or those under development. The company prides itself on close collaboration with clients, addressing all project aspects including opto-mechanical considerations, vendor selection, and procurement. This collaborative approach ensures that LOD provides timely responses, enabling customers to meet their project deadlines efficiently.

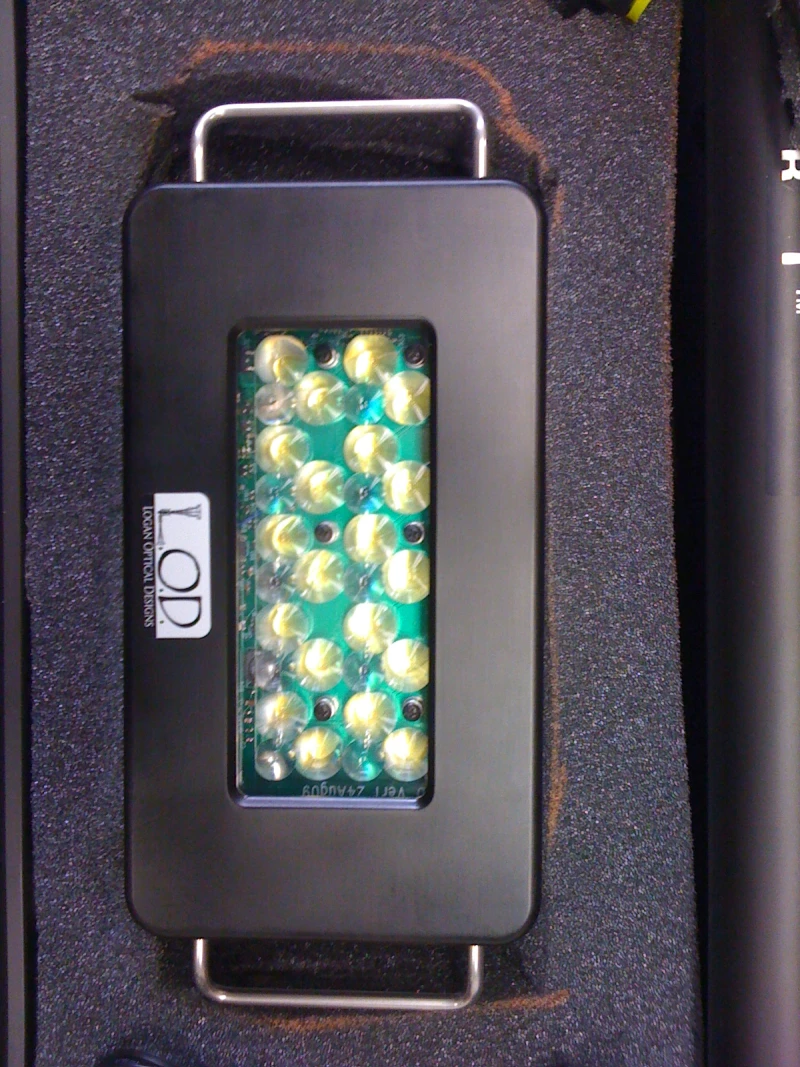

Among the many successful projects undertaken by LOD are innovative designs such as RGB mixing light pipes and advanced optical systems. For instance, LOD has developed light pipes that effectively translate light from a white LED through protective enclosures into space environments, utilizing total internal reflection (TIR) for optimal light confinement. These light pipes can be manufactured from materials like polycarbonate or glass, depending on project needs.
Another notable example of LOD's expertise is their work with Fresnel lenses and diffraction-limited optical systems. One of their recent designs includes a 110° diffraction-limited f/3.8 optical system, showcasing their ability to integrate complex optical and mechanical designs seamlessly. This project also featured the implementation of a Stewart Systems wide-angle lens, complemented by LOD's Fresnel lens collimator array and focusing lens, demonstrating their capability to deliver cutting-edge optical solutions.
LOD Optical Illumination Lighting Design Consulting Services
Specifications |
|
|---|---|
| LOD Optical Lighting Design: | Engineering Consulting |
Features
- Expertise in Optical Design: Logan Optical Designs (LOD) boasts nearly 30 years of experience in optical design, analysis, and scientific research for both the Department of Defense and the private sector.
- Advanced Software Utilization: LOD employs cutting-edge software such as Zemax for geometrical ray analysis and physical optics propagation, and AGI32 Photometric Toolbox for HID distribution design and evaluation.
- Comprehensive Design Tools: In addition to Zemax and AGI32, LOD utilizes Mathcad, Matlab, and other software packages to enhance design and analysis capabilities.
- Custom Optical Systems: LOD specializes in developing optical systems tailored to meet specific client specifications, whether for existing products or those under development.
- Collaborative Project Management: LOD works closely with clients on all project aspects, including opto-mechanical considerations, vendor selection, and procurement, ensuring timely project completion.
- Innovative Light Pipe Designs: LOD has developed RGB mixing light pipes that use total internal reflection (TIR) to efficiently translate light from LEDs through protective enclosures.
- Advanced Optical Systems: LOD's portfolio includes a 110° diffraction-limited f/3.8 optical system, showcasing their capability in designing complex optical solutions.
- Fresnel Lens Expertise: LOD has experience in implementing wide-angle lenses and Fresnel lens collimator arrays, demonstrating their proficiency in advanced optical technologies.
Applications
- Optical Design and Analysis: Logan Optical Designs (LOD) specializes in optical design and analysis, offering nearly 30 years of experience in the field. They utilize advanced software such as Zemax for geometrical ray analysis and physical optics propagation, and AGI32 Photometric Toolbox for HID distribution design and evaluation.
- Scientific Research: LOD engages in scientific research for both the Department of Defense (DoD) and private sector, handling projects from single element designs to complex multi-spectral imaging systems.
- Optical System Development: LOD develops optical systems tailored to client specifications, whether for current products or those under development. They ensure close collaboration with clients on all project aspects, including opto-mechanical considerations, vendor selection, and procurement.
- Project Management: LOD is committed to providing timely responses to help clients meet project deadlines, ensuring efficient project management and execution.
- Light Pipe Design: LOD has expertise in designing light pipes for RGB mixing, using total internal reflection (TIR) to confine light. These pipes can be manufactured from materials such as polycarbonate or glass, and are used to translate light from LEDs through protective enclosures to space environments.
- Advanced Lens Systems: LOD designs advanced lens systems, including a 110° diffraction limited f/3.8 optical system and wide-angle lenses. They also implement Fresnel lens collimator arrays and focusing lenses for enhanced optical performance.
Frequently Asked Questions
Logan Optical Designs, LLC (LOD) specializes in optical design, analysis, procurement, and other scientific research areas for both the Department of Defense and the private sector. They offer services ranging from single element designs to complex multi-spectral imaging system designs.
LOD uses Zemax optical design code for geometrical ray analysis and physical optics propagation, AGI32 Photometric Toolbox software for designing and evaluating HID distributions, as well as Mathcad, Matlab, and various other software packages to assist in design and analysis.
Yes, LOD can develop optical systems that meet specific client specifications, either with a current product or a product under development. They work closely with clients on all project issues including opto-mechanical aspects, vendor selection, and procurement.
One example of a previous LOD project is the design of RGB mixing light pipes, which are used to translate light from a white LED through a protective enclosure to a space environment using total internal reflection.
LOD's light pipes can be manufactured out of polycarbonate or glass.
A notable feature of LOD's optical systems is their ability to achieve diffraction-limited performance, such as in their 110° f/3.8 optical system.
Yes, LOD provides timely responses and works closely with clients to ensure project deadlines are met, offering support on all project issues including opto-mechanical design, vendor selection, and procurement.
