OEM Polarization Entangled Photon Source-Generator

Name: OEM Polarization Entangled Photon Source-Generator
Brand: OZ Optics
Availability: InStock

Description

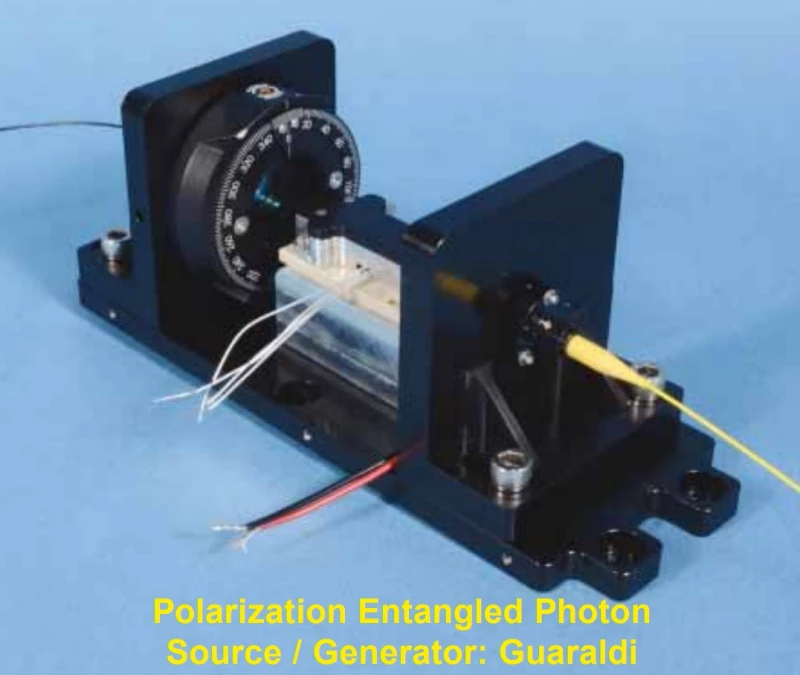

The OEM Polarization Entangled Photon Source/Generator, available in Gershwin and Guaraldi variants, is a crystal-based device that generates polarization entangled photon pairs through spontaneous parametric down conversion (SPDC). These compact interferometers can be customized for type-0, type-1, or type-2 phase matching.

The Guaraldi variant supports type-0/type-1, while the Gershwin variant supports type-2. Both models can be optically coupled via fiber or free space focusers with customizable beam waists. Designed for the quantum optics R&D community, Guaraldi and Gershwin provide pre-aligned and stable performance.

Specifications

Operating Wavelength:	1550 nm
Wavelength Stability:	Not Specified
Pump Laser Power:	Not Specified
Dimensions:	192x130x76 mm
TEC Max. Current (A):	6 A
TEC Max. Voltage (V):	5.8 V
Operating Temperature (°C):	80 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Customizable: Supports type-0, type-1, and type-2 phase matching, custom beam waist selection, and coupling optics.
Tunable Entanglement (Fidelity range 0–95%).
Pre-aligned and stable.
Pump blocking for basis alignment.
Fiber coupled or free space options.
Count rates (Kcps → Mcps) [Design and implementation dependent parameters].
Heralding efficiencies (>0.1 → 0.5) [Design and implementation dependent parameters].

Applications

Fundamental quantum information science
Quantum key distribution
Quantum computing
Quantum metrology

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:

Canada

Sold by:

OZ Optics ✓ Verified Supplier

On FindLight:

since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the OEM Polarization Entangled Photon Source/Generator used for?

The OEM Polarization Entangled Photon Source/Generator is used for fundamental quantum information science, quantum key distribution, quantum computing, and quantum metrology.

Can the OEM Polarization Entangled Photon Source/Generator be customized?

Yes, the OEM Polarization Entangled Photon Source/Generator is customizable. It supports type-0, type-1, and type-2 phase matching, custom beam waist selection, and coupling optics.

What are the different variants of the OEM Polarization Entangled Photon Source/Generator?

The OEM Polarization Entangled Photon Source/Generator is available in Gershwin and Guaraldi variants. The Guaraldi variant supports type-0/type-1 phase matching, while the Gershwin variant supports type-2 phase matching.

How can the OEM Polarization Entangled Photon Source/Generator be coupled?

The OEM Polarization Entangled Photon Source/Generator can be optically coupled via fiber or free space focusers with customizable beam waists.

What are the applications of the OEM Polarization Entangled Photon Source/Generator?

The OEM Polarization Entangled Photon Source/Generator is used in fundamental quantum information science, quantum key distribution, quantum computing, and quantum metrology.

Got more questions? Use the RFQ form to ask the supplier directly.
