Table Rails
Description

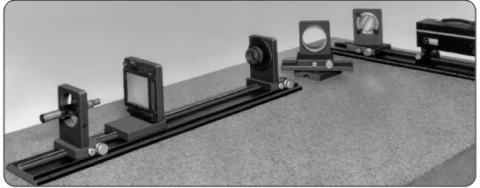

Table rails are low profile optical benches designed to give optical tables and surface plates the outstanding features of the Data Optics system: rack and pinion control of each mount for remote positioning, and precise alignment. Data Optics table rails are made from 1" (25.4 mm) thick aluminum tooling plate that has been hard anodized to provide a long wearing surface. Tolerances in straightness and flatness are ±0.001"/foot (±0.025 mm/300 mm) and ±0.003" (±0.075 mm) over the entire length. Lengths under 3 feet (1 meter) may be used as free standing optical benches, but longer lengths must be supported by a suitable flat surface to maintain the flatness tolerance specified above. Table rails may be ordered in any length up to 10 feet (3.1 meters). Although table rails come standard with a rack and scale, either may be deleted when ordering if not desired for the application.
Table Rails
Specifications |
|
|---|---|
| Rail Mount Shape: | Circular, Rectangular |
| Rail Length: | 1000 mm |
| Rail Material: | Aluminum, Anodized Aluminum |
Features
Low Profile
Use on Optical Tables
Provides Lateral Alignment
Remote Lens Focusing
Flexibility
Applications
