Page 2 - Flat Field and Imaging Gratings

Flat Field and Imaging Grating 523 00 010
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 010
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 8 nm/mm
Wavelength Range: 200 – 400 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 600 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 020
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 020
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 16 nm/mm
Wavelength Range: 400 – 800 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 300 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 030
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 030
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 24 nm/mm
Wavelength Range: 200 – 800 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 200 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 040
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 040
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 36 nm/mm
Wavelength Range: 300 – 1170 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 138 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 050
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 050
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 40 nm/mm
Wavelength Range: 200 – 1200 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 120 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 060
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 060
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 48 nm/mm
Wavelength Range: 200 – 1400 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 100 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 01 020
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 01 020
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 14 nm/mm
Wavelength Range: 190 – 455 nm
Spectrum Length: 18.8 mm
F/Number: 2.8
Groove Density: 360 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 01 040
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 01 040
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 37.8 nm/mm
Wavelength Range: 285 – 1232 nm
Spectrum Length: 25 mm
F/Number: 2.8
Groove Density: 133 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 01 060
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 01 060
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 76 nm/mm
Wavelength Range: 600 – 2500 nm
Spectrum Length: 25 mm
F/Number: 2.8
Groove Density: 65 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 410
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 410
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 1.1 nm/mm
Wavelength Range: 440 – 520 nm
Spectrum Length: 70 mm
F/Number: 6.7
Groove Density: 2000 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 430
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 430
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 1.4 nm/mm
Wavelength Range: 100 – 400 nm
Spectrum Length: 210.4 mm
F/Number: 7.9
Groove Density: 1340 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 730
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 730
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 4.6 nm/mm
Wavelength Range: 395 – 705 nm
Spectrum Length: 68 mm
F/Number: 2.4
Groove Density: 793 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 533 00 110
HORIBA
Add to watch list
Flat Field and Imaging Grating 533 00 110
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 5 nm/mm
Wavelength Range: 200 – 360 nm
Spectrum Length: 32 mm
F/Number: 4.4
Groove Density: 807 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 543 00 180
HORIBA
Add to watch list
Flat Field and Imaging Grating 543 00 180
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 5 nm/mm
Wavelength Range: 4160 – 4180 nm
Spectrum Length: 4 mm
F/Number: 3.9
Groove Density: 376 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 533 00 450
HORIBA
Add to watch list
Flat Field and Imaging Grating 533 00 450
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 7.1 nm/mm
Wavelength Range: 200 – 350 nm
Spectrum Length: 21.2 mm
F/Number: 2.3
Groove Density: 900 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 510
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 510
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 8.1 nm/mm
Wavelength Range: 330 – 660 nm
Spectrum Length: 40.4 mm
F/Number: 2
Groove Density: 540 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 533 00 550
HORIBA
Add to watch list
Flat Field and Imaging Grating 533 00 550
Compare
Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect images of the entrance ...

Specifications
Dispersion: 8.4 nm/mm
Wavelength Range: 340 – 750 nm
Spectrum Length: 49 mm
F/Number: 4
Groove Density: 800 l/mm
Data Sheet
Inquire Price
Flat Field and Imaging Grating 523 00 080
HORIBA
Add to watch list
Flat Field and Imaging Grating 523 00 080
Compare

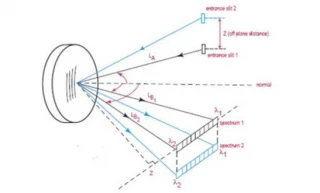

Type IV aberration corrected flat field and imaging gratings are designed to focus a spectrum onto a plane surface, making them ideal for use with linear or 2-D array detectors. These gratings are produced with grooves that are neither equispaced nor parallel, and are computer optimized to form near-perfect ...

Specifications
Dispersion: 4 nm/mm
Wavelength Range: 300 – 400 nm
Spectrum Length: 25 mm
F/Number: 3.2
Groove Density: 1200 l/mm
Data Sheet
Inquire Price
