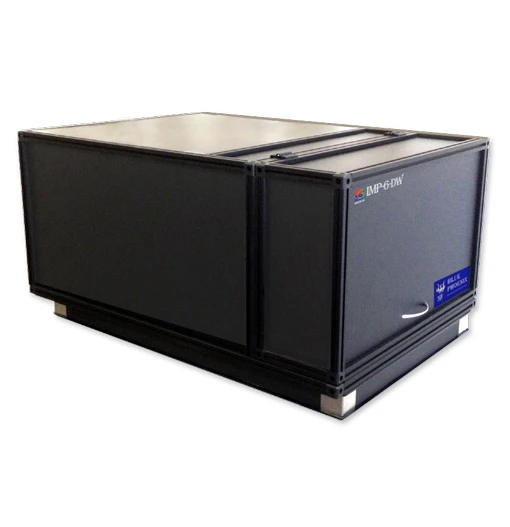

IMP-6 – Image-Matrix Printer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Lithuania
-
Sold by:
Geola Digital Ltd -
On FindLight:
since 2022
Description
The Blue Phoenix IMP-6 Originators allow the origination of all commonly used types of security holograms and diffractive optical elements. The Originators have three operating modes – holographic, lithographic and combined mode with fully programmable switching between these modes during hologram origination.
The originating area of standard holograms is 150x150mm (6″x6″) and can be enlarged on demand. If IMP-6 originators are equipped with a pulsed laser, this area can be filled with identical or different holograms in only several hours, thus making mechanical recombination unnecessary.
Positive photoresist plates are used as the printing medium. Origination is accomplished by the exposition of a desired photoresist area, filling it with holographic micro-frames, each of which contains elementary holograms and subsequently developing the obtained diffractive structure in an etching solution.
Invited presentations about our Originators were given at the conferences:
- The Holography Conference 2017
- High Security Printing Asia 2017
- High Security Printing EMEA 2018
- SPIE Photonics West 2018

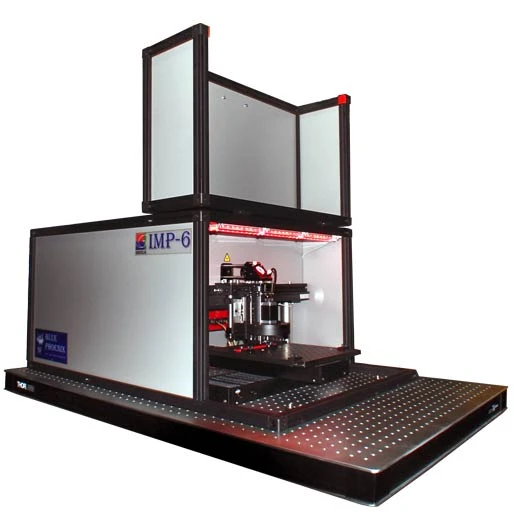

IMP-6 – Image-Matrix Printer
Specifications |
|
|---|---|
| Hologram Density: | 26000 ppi |
| Graphic Resolution: | 210000 dpi |
| Modes: | Holographic, Lithographic, Combo (holographic and lithographic) |
| Color Range: | 430 – 680 nm |
| Originating Area: | 200 x 200 mm |
| Modulator Type: | LCOS 1920 x 1080 pixels |
| Laser: | High performance 405nm laser or Geola’s BlueBird series pulsed laser |
| Focussing: | With CCD camera |
| Originating Speed: | ~ 1 sq.cm per 30 minutes with CW laser |
| Grating Pitch (Holographic Mode): | variable 700–1400 lines/mm |
| Grating Pitch (Lithographic Mode): | variable 1–500 lines/mm |
| Number Of Direction (Holographic Mode): | 0–180 degrees |
| Number Of Direction (Lithographic Mode): | 0–360 degrees |
Features
- Lithographic effects
- Diffractive microtext up to 20microns
- Nanotext down to 5microns
- Microimages
- Nanoimages
- Pearl effect
- Letter lens
- Lenses
- Hidden images (CLR) static and animated
Applications
Manufacturing of either high security holograms or decorative holograms for brand protection.
