XGT-5200 X-ray Analytical Microscope
Description
With the unique X-ray Guide Tube the bench top XGT-5200 systems allow convenient access to X-ray fluorescence analysis with high spatial resolution – from 1.2 mm down to 10 µm. There is no sample preparation or vacuum required – the object is simply placed in the sample chamber and analysed at normal atmospheric pressure. Fully integrated software controls sample movement, acquisition options and data analysis (including qualitative and quantitative analysis, and composite image generation). From when a sample is put in the chamber, just a few seconds are needed until an acquisition is started, aided by intuitive “point and click” selection of the analysis position.
XGT-5200 X-ray Analytical Microscope
Specifications |
|
|---|---|
| Measurement Principle: | Energy dispersive X-ray fluorescence |
| X-Ray Beam Diameter: | <= 10um |
| Chamber SIze (Width): | 350 mm |
| Chamber Size (Depth): | 400 mm |
| Chamber Size (Height): | 40 mm |
Features

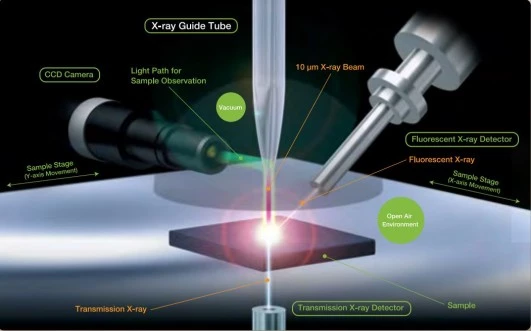

Two X-ray guide tubes are provided in the instrument, allowing the user to simply switch between a micro and macro beams, so that a range of experiments can be accommodated. The high intensity beam delivered by these guide tubes ensures that acquisition times are kept to a minimum. The mono-capillary design of these guide tubes are ideally suited for high intensity element imaging, even of samples which are not perfectly flat.
Applications
Highest spatial resolution
Transmission X-ray Mapped Imaging
Complete range of sample sizes
Integrated Data Acquisition and Analysis Software
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The XGT-5200 X-ray Analytical Microscope comes with fully integrated software that controls sample movement, acquisition options, and data analysis (including qualitative and quantitative analysis, and composite image generation).
A range of experiments can be accommodated with the XGT-5200 X-ray Analytical Microscope, thanks to the two X-ray guide tubes that allow the user to switch between micro and macro beams.
The XGT-5200 X-ray Analytical Microscope is used for X-ray fluorescence analysis with high spatial resolution.
From when a sample is put in the chamber, just a few seconds are needed until an acquisition is started.
No, sample preparation is not required for the XGT-5200 X-ray Analytical Microscope.
