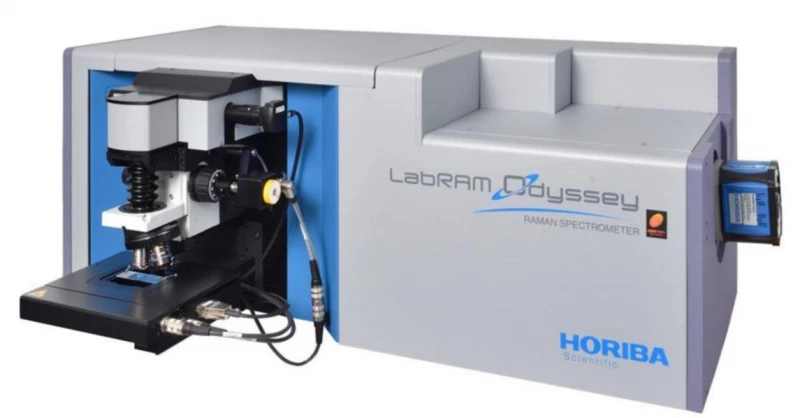

LabRAM HR Evolution Raman Microscope - NOW CALLED LABRAM ODYSSEY
Description
The LabRAM Odyssey Raman microscopes are ideally suited for both micro and macro measurements, and offer advanced confocal imaging capabilities in 2D and 3D. The true confocal Raman microscope enables the most detailed images and analyses to be obtained with speed and confidence. With guaranteed high performance and intuitive simplicity, the LabRAM Odyssey is the ultimate instrument for Raman spectroscopy. It is widely used for standard Raman analysis, PhotoLuminescence (PL), Tip Enhanced Raman Spectroscopy (TERS) and other hybrid methods.
LabRAM HR Evolution Raman Microscope - NOW CALLED LABRAM ODYSSEY
Specifications |
|
|---|---|
| Excitation Wavelength: | Broadband UV, Broadband VIS, Broadband NIR, VIS to NIR |
| Multi-Wavelength Capability: | Yes |
| Spectral Range: | 1-3.5cm^-1 |
| Detector: | CCD |
Features
Ultra fast Raman imaging with SWIFTTM and DuoScanTM technologies
Diffraction limited spatial resolution
Unequalled spectral resolution with high efficiency long focal length spectrometer
Wide spectral range capability due to a unique achromatic design, and compatibility with multiple lasers and detectors
Fully automated system, with powerful software control
Flexible platform for NanoRamanTM, photoluminescence, SEM
Applications
Raman microscopy
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The LabRAM Odyssey Raman microscope is used for Raman microscopy, photoluminescence, Tip Enhanced Raman Spectroscopy (TERS) and other hybrid methods.
The LabRAM Odyssey Raman microscope has ultra-fast Raman imaging with SWIFTTM and DuoScanTM technologies, diffraction-limited spatial resolution, unequalled spectral resolution with a high-efficiency long focal length spectrometer, wide spectral range capability due to a unique achromatic design, and compatibility with multiple lasers and detectors.
The LabRAM Odyssey Raman microscope is suited for both micro and macro measurements, and offers advanced confocal imaging capabilities in 2D and 3D. It is widely used for standard Raman analysis, PhotoLuminescence (PL), Tip Enhanced Raman Spectroscopy (TERS) and other hybrid methods.
The LabRAM Odyssey Raman microscope achieves a fully achromatic spectrometer spectral range from 200 nm to 2200 nm, which allows for the availability of excitation lasers from deep UV to near IR to measure both photoluminescence and Raman signals in the same spectrum.
The LabRAM Odyssey Raman microscope uses the LabSpec 6 software, which has an intuitive interface and a large dedicated application range in the LabSpec 6 app store. It also offers a high level of automation, such as a laser switch, an automated objective turret, or an automated spatial calibration with its VRM patented function.
