rhothor Deflector RTA-AR800
OVERVIEW

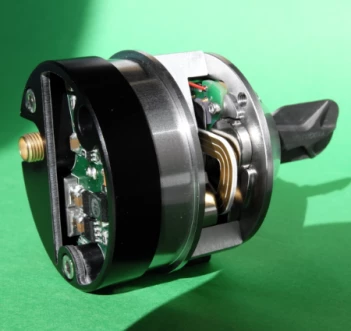

This motor is capable to handle the mirror position all by itself without extra regulation or amplifier board. This makes it an easy tool to design scan solutions for generic and specific applications. These RTA (Rhothor Active) deflectors do not rely on the traditional moving magnets technology. Instead a patented moving coil principle is used. The Smart Deflector is fitted with a single coaxial connector providing power as well as data connection. Simple modulation electronics allow the user to send the set-point data directly to the motor. The mirror positioning is done by the motor itself.
SPECIFICATION
- Optical Angular Range: 45.8 deg
- Max Load: 10 g/cm^2
- Repeatability: 12 urad
KEY FEATURES
- One size Fits all: Smart deflector can be fitted with A10, 15 and 20 mm aperture mirror
- Fully integrated rotational servo system
- Available angular ranges: 800, 640 and 180 mrad
- Single coaxial SDP (Shared Data Power) connection
- Digital regulator running at 1.5 µsec cycle time
- Down to 2,5 µsec set point and actual position update rate
- 20 bit system resolution
- Low drift (typical 12 µrad / 8 hours)
- Low Temperature coefficient (typical 25 ppm/°K)
- Patented moving coil drive with low inductance for superior speed
- Fully digital H-bridge for single supply operation at maximum efficiency
- Typical power supply current only 140 mA
- Spring preloaded hybrid bearing system for long life time
- Field replaceable mirrors, tool-set available
- Auto-tune supporting application selectable track delay (down to 60 µsec)
