Description

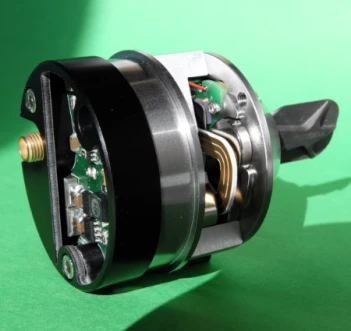

This motor is capable to handle the mirror position all by itself without extra regulation or amplifier board. This makes it an easy tool to design scan solutions for generic and specific applications. These RTA (Rhothor Active) deflectors do not rely on the traditional moving magnets technology. Instead a patented moving coil principle is used. The Smart Deflector is fitted with a single coaxial connector providing power as well as data connection. Simple modulation electronics allow the user to send the set-point data directly to the motor. The mirror positioning is done by the motor itself.

rhothor Deflector RTA-AR640

Visit the Newson NV Store

Specifications

Optical Angular Range: 36.7 deg
Max Load: 10 g/cm^2
Repeatability: 10 urad

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • One size Fits all: Smart deflector can be fitted with A10, 15 and 20 mm aperture mirror
  • Fully integrated rotational servo system
  • Available angular ranges: 800, 640 and 180 mrad
  • Single coaxial SDP (Shared Data Power) connection
  • Digital regulator running at 1.5 µsec cycle time
  • Down to 2,5 µsec set point and actual position update rate
  • 20 bit system resolution
  • Low drift (typical 12 µrad / 8 hours)
  • Low Temperature coefficient (typical 25 ppm/°K)
  • Patented moving coil drive with low inductance for superior speed
  • Fully digital H-bridge for single supply operation at maximum efficiency
  • Typical power supply current only 140 mA
  • Spring preloaded hybrid bearing system for long life time
  • Field replaceable mirrors, tool-set available
  • Auto-tune supporting application selectable track delay (down to 60 µsec)

Frequently Asked Questions

Is the Smart Deflector compatible with different mirror sizes?
Yes, the Smart Deflector can be fitted with A10, 15 and 20 mm aperture mirror.
What is the connection type of the Smart Deflector?
The Smart Deflector is fitted with a single coaxial connector providing power as well as data connection.
What is the resolution of the Smart Deflector?
The Smart Deflector has a 20 bit system resolution.
What is the Smart Deflector capable of?
The Smart Deflector is a complete closed loop servo system that can handle the mirror position all by itself without extra regulation or amplifier board.
What is the typical power supply current of the Smart Deflector?
The typical power supply current of the Smart Deflector is only 140 mA.
