Description

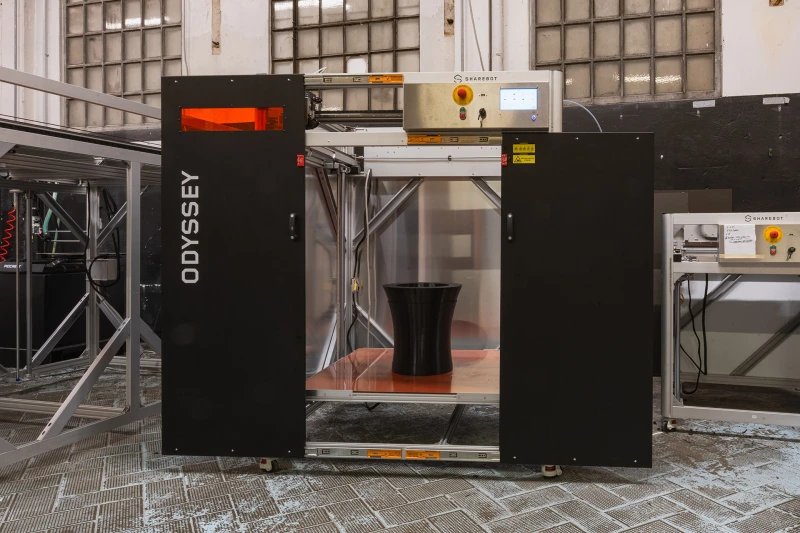

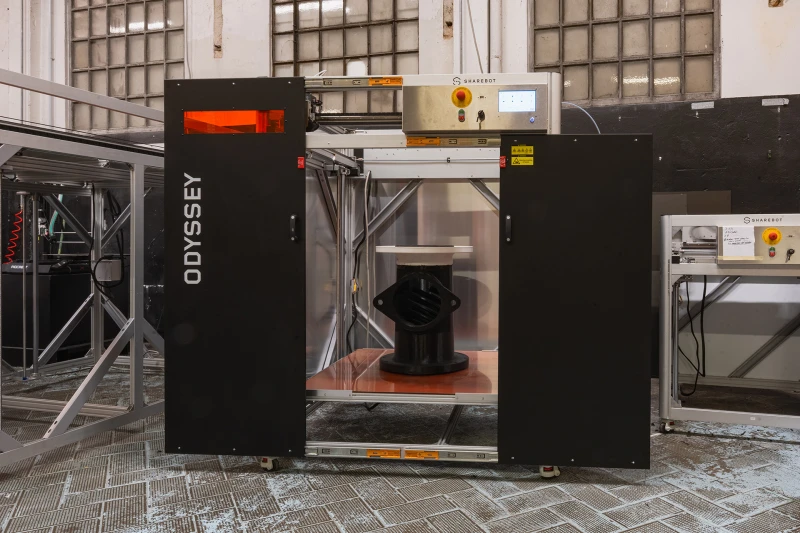

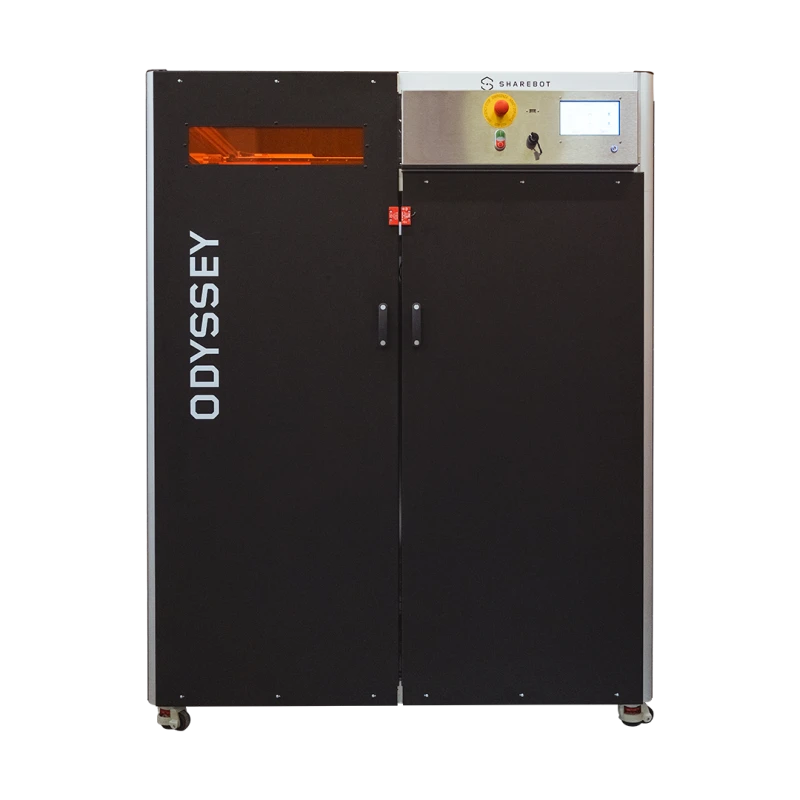

The Sharebot Odyssey is an industrial-grade large-format FDM (Fused Deposition Modeling) 3D printer engineered for full-scale production of oversized components. With a massive build volume of 1000 × 1000 × 1200 mm, it enables the fabrication of large, monolithic parts in a single print—eliminating the need for assembly and improving structural integrity.
Designed for demanding environments such as engineering labs, product development centers, and industrial workshops, Odyssey bridges the gap between prototyping and real-world manufacturing. It is particularly suited for applications where size is critical, including automotive, aerospace, naval engineering, and architectural modeling.
Equipped with a high-temperature extruder (up to 350°C) and a heated build platform, the system supports a wide range of technical materials, including reinforced filaments. Advanced features such as automatic bed leveling, integrated camera monitoring, and Industry 4.0 connectivity ensure reliable performance for long-duration, large-scale print jobs.
With its open parameter architecture and robust industrial design, the Sharebot Odyssey provides engineers and researchers with the flexibility and control needed to produce large, high-performance components with precision and consistency.
Sharebot Odyssey Large-Format FDM 3D Printer - Industrial 1m³ Additive Manufacturing System
Specifications
| Build Volume (W): | 1000 mm |
|---|---|
| Build Volume (H): | 1000 mm |
| Build Volume (D): | 1200 mm |
| Extrusion Temperature (Max): | 350 degC |
| Nozzle Size (Standard): | 0.4 mm |
| Build Plate Temperature (Max): | 100 degC |
| Compatible Materials: | PLA, PET, PET-CF |
| External Dimensions: | 1,200 x 1,200 x 1,400 mm |
| Weight: | 250 kg |
| Number Of Print Heads: | 1 |
| Standard Nozzle: | 0.4 mm (0.6 mm – 0.8 mm optional) |
| Build Room: | Semi-closed |
| Connectivity: | USB, LAN, Wi-Fi |
| Industry 4.0 Ready: | Yes (via Moonraker web interface) |
| Touch Screen: | 7 |
| Internal Webcam: | Yes |
| Manufacturer Part Number (MPN): | 9117390 |
| FindLight SKU: | FL-24313 |
Got questions about specs? Use the inquiry form to ask.
Features
- Large build volume (1000 × 1000 × 1200 mm) for full-scale parts
- FDM/FFF technology for reliable large-format additive manufacturing
- High-temperature extrusion up to 350°C for engineering-grade materials
- Heated build plate (up to 100°C) with tempered glass for uniform adhesion
- Automatic bed leveling (one-click) for consistent print qualityIntegrated camera + remote monitoring (Moonraker interface)
- Full connectivity (Wi-Fi, LAN, USB) and Industry 4.0 readiness
- Open parameter system (Klipper firmware) for full process control
- Advanced safety features: filament sensor, power failure recovery
- Semi-closed build chamber for improved thermal stabilityIndustrial-grade design (~250 kg system) for professional environments
Applications
- Large-scale prototyping in automotive and aerospace industries
- Architectural models and full-size design validation
- Naval and marine component prototyping
- Industrial tooling and functional parts
- Custom furniture and structural design elements
- Aerodynamic testing components (e.g., wind tunnel models)
- Research and development in large-format additive manufacturing
Export & Trade Information
| HTS Code: | 8485.20.00 |
|---|---|
| Estimated US Tariff: | 3.1% |
