Description
The Spectra-Physics® Matisse® C is a fully automated and compact single frequency tunable ring laser that is ideal for Quantum and AMO (atomic, molecular and optical physics) applications. The Matisse C system has the industry’s highest output power, the narrowest external linewidth, and the broadest mode-hop-free tuning range. The compact, sealed, and fully automated design with broadband mirrors and specially developed optical mounts provide long term stability and worry free operation.

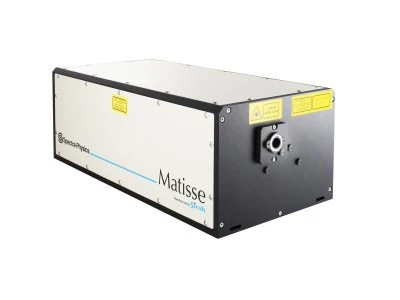

Matisse® C Compact Ultra-Narrow Linewidth Tunable Ring Lasers
MKS l Spectra-Physics
Specifications
| Wavelength Range: | 668 – 1068 nm |
|---|---|
| Output Power: | >7.2 W |
| Linewidth: | <20 kHz rms |
| Broad Tuning Range: | >400 nm |
| Mode-Hop-Free Piezo Tuning: | >50 GHz |
| Continuous Tuning Range: | 668–1068 nm |
| Frequency Stabilization Linewidth: | <100 kHz |
| Spectral Linewidth (Matisse CS): | <35 kHz |
| Spectral Linewidth (Matisse CX): | <20 kHz |
Download Data Sheet
Features
- Highest output power available >7.2 W
- Narrowest linewidth <20 kHz rms
- Compact, sealed, fully automated design
- Hands free operation
- Broad tuning range (>400 nm) with one optics set
- Widest mode-hop-free piezo tuning >50 GHz
Applications
- High-resolution Spectroscopy
- Quantum Physics
- Atom cooling and magneto-optic trapping
- Atomic clocks
- Bose-Einstein condensates
- Frequency combs
- Quantum computing
- Microcavity resonators
- Quantum applications
Frequently Asked Questions
What is the Spectra-Physics Matisse C?
The Spectra-Physics Matisse C is a fully automated, compact single frequency tunable ring laser designed for Quantum and AMO (atomic, molecular, and optical physics) applications.
What are the key features of the Matisse C laser?
Key features of the Matisse C laser include the highest output power (>7.2 W), narrowest linewidth (400 nm) with one optics set.
How is the Matisse C laser controlled?
The Matisse C laser is controlled with an intuitive graphical user interface (GUI) that allows for quick and easy wavelength selection, piezo scanning, and frequency locking.
What is the tuning range of the Matisse C?
The Matisse C offers automated continuous tuning across a range of 668–1068 nm, providing more than 400 nm of tuning with automated optics set switching.
What applications is the Matisse C suitable for?
The Matisse C is suitable for high-resolution spectroscopy, atom cooling and magneto-optic trapping, atomic clocks, Bose-Einstein condensates, frequency combs, quantum computing, microcavity resonators, and other quantum applications.
How does the Matisse C achieve frequency stabilization?
The Matisse C achieves frequency stabilization using a unique phase lock loop technique, which provides a linewidth of less than 100 kHz with passive frequency stabilization. It can also be upgraded to higher resolution models like the Matisse CS and Matisse CX.
What is the mode-hop-free tuning capability of the Matisse C?
The Matisse C offers mode-hop-free piezo tuning of over 50 GHz and features scan stitching for mode-hop-free tuning up to 400 nm.
