AM2-070 Dual-Axis Dynamic Inclinometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2025
Description
The AM2-070 Dual-Axis Dynamic Inclinometer is a state-of-the-art device engineered to deliver precise inclination measurements through advanced technology integration. At its core, this product combines a six-axis MEMS sensor with sophisticated circuitry, allowing it to detect changes in static gravitational acceleration. This detection is converted into angular displacement outputs, providing accurate readings relative to the horizontal plane. The inclinometer employs MEMS accelerometers and gyroscopes, enhanced by an optimized compensation algorithm model, ensuring exceptional stability and repeatability in measurements. This dynamic inclinometer is versatile, finding its utility in a wide range of applications. Its precision and reliability make it an ideal choice for industries requiring satellite antenna star search, railway locomotive monitoring, petroleum drilling equipment positioning, underground drilling attitude navigation, and geological equipment tilt monitoring. Furthermore, it is indispensable in ship navigation attitude measurement, satellite communication vehicle attitude detection, as well as in shield tunneling and pipe jacking operations. Shanghai Aoshi Control Technology Co., Ltd. is committed to delivering high-quality products, and the AM2-070 Dual-Axis Dynamic Inclinometer exemplifies this commitment. Its robust design and cutting-edge technology ensure that it meets the demanding needs of modern industrial applications.

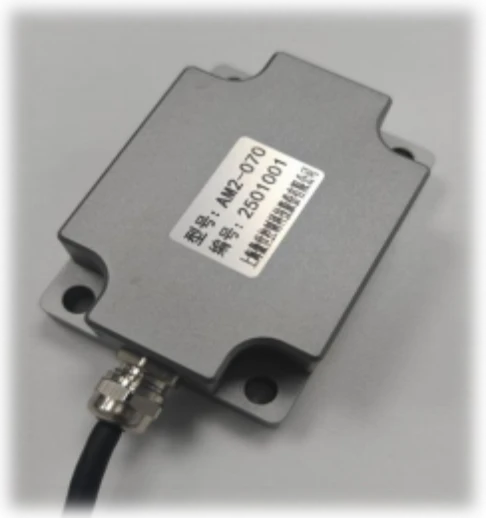

AM2-070 Dual-Axis Dynamic Inclinometer
Specifications |
|
|---|---|
| Total Range: | -90 – 90 deg |
| Resolution: | 0.01 deg |
| Repeatability: | 0.05 deg |
| Static Accuracy: | -0.1 – 0.1 deg |
| Dynamic Accuracy: | -0.5 – 0.5 deg |
| Measurement Range: | ±90° ° |
| Static Accuracy: | ±0.1° ° |
| Dynamic Accuracy: | ±0.5° ° |
| Resolution: | 0.01° ° |
| Repeatability: | ≤0.05 ° ° |
| Response Time: | 5 ms |
| Startup Time: | ≤3 s |
| Measurement Axe: | X-axis, Y-axis (mutually perpendicular) |
| Dimensions: | (80±1) mm × (59±1) mm × (27±1) mm |
| Installation Dimensions: | (68±0.1) mm × (44±0.1) mm |
| Pin: | 5 |
| Supply Voltage: | 9 to 36 VDC |
| Power Consumption: | ≤0.5 W |
| Protections: | Reverse Polarity, Short Circuit |
| MTTF: | 260 years @40°C |
| Storage Temperature: | -40°C to +70 °C |
| Operating Temperature: | -40°C to +70 °C |
| Shock Resistance: | 100g @11ms (Half-sine Wave) |
| Vibration Resistance: | 10g RMS, 10-1000Hz |
| IP Rating: | IP67 |
| Weight: | ≤250 g |
Features
- Measurement Range: ±90°
- Static Accuracy: ±0.1°
- Dynamic Accuracy: ±0.5°
- Resolution: 0.01°
- Repeatability:≤0.05 °
- Response Time: 5 ms
- Startup Time: ≤3s；
- Measurement Axes: X-axis, Y-axis (mutually perpendicular)
Applications
- Satellite Antenna Star Search
- Railway Locomotive Monitoring
- Petroleum Drilling Equipment
- Underground Drilling Attitude Navigation
- Geological Equipment Tilt Monitoring
- Ship Navigation Attitude Measurement
- Satellite Communication Vehicle Attitude Detection
- Shield Tunneling and Pipe Jacking Applications
Frequently Asked Questions
The AM2-070 Dual-Axis Dynamic Inclinometer is a device that integrates a six-axis MEMS sensor with advanced circuitry to measure inclination by detecting changes in static gravitational acceleration. It converts these changes into angular displacement outputs relative to the horizontal plane.
The AM2-070 Inclinometer is used in satellite antenna star search, railway locomotive monitoring, petroleum drilling equipment, underground drilling attitude navigation, geological equipment tilt monitoring, ship navigation attitude measurement, satellite communication vehicle attitude detection, shield tunneling, and pipe jacking applications.
The measurement range of the AM2-070 Inclinometer is ±90° for both the X-axis and Y-axis.
The static accuracy of the AM2-070 Inclinometer is ±0.1°.
The AM2-070 Inclinometer has a response time of 5 milliseconds.
The startup time for the AM2-070 Inclinometer is less than or equal to 3 seconds.
The AM2-070 Inclinometer measures angular positions in space along the X-axis and Y-axis, which are mutually perpendicular.
